Phoenix Contact 3212604 Grey 10 pc(s)

A grey terminal block with orange actuation elements in a multi-level arrangement for electrical wiring.

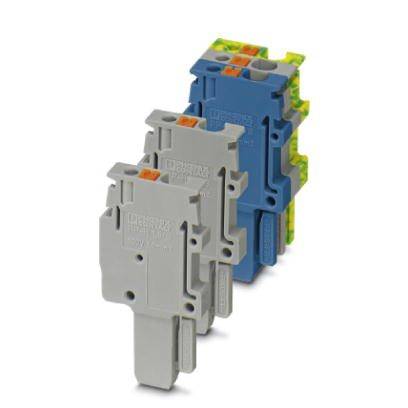

Three different terminal blocks in grey, blue, and green, stacked in an offset row. They are used for wiring in electrical installations.

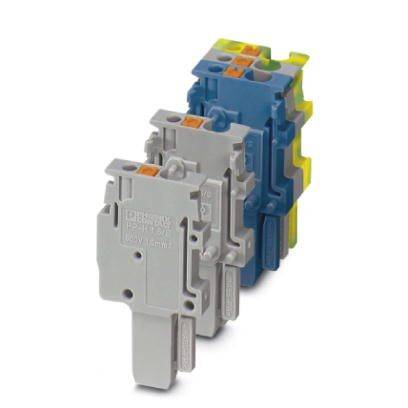

Three clamps of different colours and types are arranged in a row, demonstrating their construction and potential applications.
A straight line with open brackets at one end and a circle at the other end, symmetrically displayed.

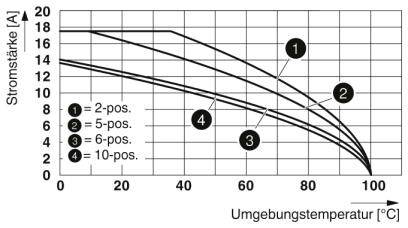

Graph shows current [A] against ambient temperature [°C] for 4 positions (2, 5, 6, 10-pos.), decreasing with increasing temperature.
1/5
Image similar
Packaging type
Piece
Factory colour
Grey
AWG max.
14
Stripping length
8 mm
Stripping length (max.)
10 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Flammability class according to UL 94: V0
  • Width 38.5 mm
  • Number of floors: 1
  • Number of connections: 11
  • Potential: 11
  • Insulating material: PA
  • Dimensioning surge voltage: 6 kV
  • Pollution level 3
  • Over voltage category III
  • Insulating material group: I
  • Maximum power loss at rated condition: 0.56 W.
  • Maximum load current: 17.5 A (at 1.5 mm² cross section)
  • Open side wall: Yes
  • Building height 19.5 mm
  • Pitch measured: 3.5 mm
  • Connection: 1. Floor
Packaging type

Piece

Factory colour

Grey

AWG max.

14

Stripping length

8 mm

Stripping length (max.)

10 mm

Dim

(L x W x H) 16.5 x 38.5 x 19.5 mm

Connection

Push-in connector

Manufacturer part #

3212604

Content

10 pc(s)

Clamp width

38.5 mm

Material

PA

Nominal voltage

500 V

Nominal current

17.5 A

Nominal current - rounded value

17.5 A

Number of pins

11

Width

38.5 mm

Height

19.5 mm

Length

16.5 mm

Type

PP-H 1,5/S/11

Cross section (flexible) (max.)

1.5 mm²

Cross section (inflexible) (max.)

1.5 mm²

Cross section (flexible) (min.)

0.14 mm²

Cross section (inflexible) (min.)

0.14 mm²

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2225929 Phoenix Contact 3212604 Grey 10 pc(s)

Datasheet 2225929 Phoenix Contact 3212604 Grey 10 pc(s)

User & Safety Instructions

User & Safety Instructions 2225929 Phoenix Contact 3212604 Grey 10 pc(s)

Description

Tested for railway applications.
