Phoenix Contact 3273162 Green 8 pc(s)

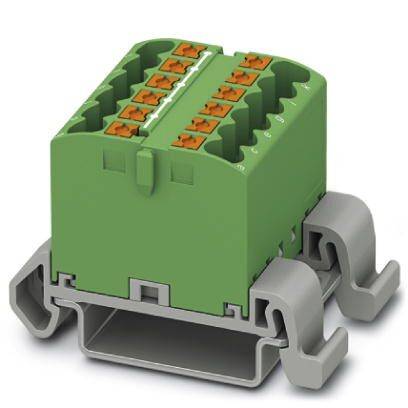

Green electrical connector with grey terminals and orange wires, suitable for DIN rail mounting in control cabinet.
Electrical socket connector in a metal plate, numbered 1 to 8 with multi-coloured terminals for cable connections.

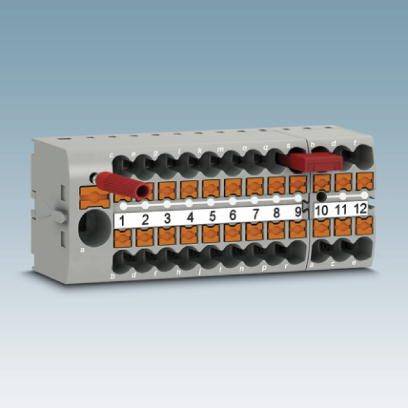

A terminal block with numbering from 1-12 and two red cables connected, set against a grey background.

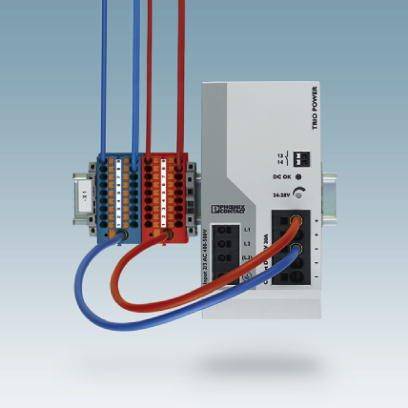

A network or electrical system with blue and red cables connected to a modular device.

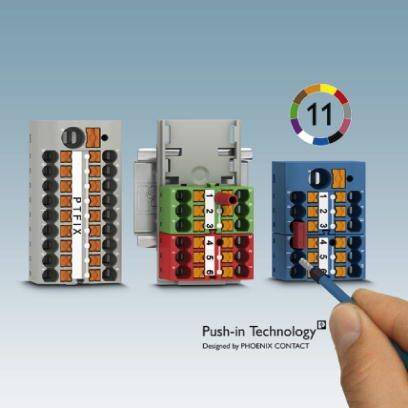

Three modular push-in terminals with colour markings and numbers. A hand is pointing to the blue terminal with a pen. Text: 'Push-in Technology'.

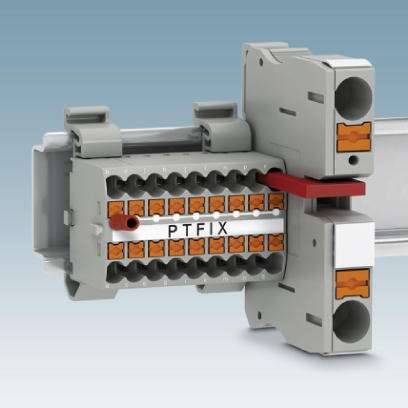

Terminal block with multiple connection options. Label reads 'PTFIX'. Mounting on DIN rail demonstrated.
A diagram with two rows and six identical rings. Vertically connected from top to bottom. Black dots in the centre.
1/7
Image similar
Factory colour
Green
AWG max.
12
Stripping length
8 mm
Stripping length (max.)
10 mm
Dim
(L x W) 45.7 mm x 31.5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Flammability class according to UL 94: V0
  • Width 31.5 mm
  • Number of floors: 1
  • Number of connections: 12
  • Potential: 1
  • Insulating material: PA
  • Dimensioning surge voltage: 8 kV
  • Pollution level 3
  • Over voltage category III
  • Insulating material group: I
  • Maximum power loss at rated condition: 0.77 W (the value refers to a terminal block and is multiplied depending on the terminal assignment)
  • Maximum load current 32 A.
  • Open side wall: No.
  • Total current max. 48 A.
Factory colour

Green

AWG max.

12

Stripping length

8 mm

Stripping length (max.)

10 mm

Dim

(L x W) 45.7 mm x 31.5 mm

Connection

Push-in connector

Connector colour

Green

Manufacturer part #

3273162

Content

8 pc(s)

Material

PA

Nominal voltage

690 V

Nominal current

24 A

Nominal current - rounded value

24 A

Width

31.5 mm

Length

45.7 mm

Type

PTFIX 12X2,5-NS35A GN

Cross section (flexible) (max.)

2.5 mm²

Cross section (inflexible) (max.)

4 mm²

Cross section (flexible) (min.)

0.14 mm²

Cross section (inflexible) (min.)

0.14 mm²

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2226045 Phoenix Contact 3273162 Green 8 pc(s)

Datasheet 2226045 Phoenix Contact 3273162 Green 8 pc(s)

User & Safety Instructions

User & Safety Instructions 2226045 Phoenix Contact 3273162 Green 8 pc(s)

Description

Up to 80% time advantage through ready-to-assemble blocks without manual bridging. Time-saving conductor connection through tool-free push-in direct plug technology. Clear wiring through eleven different color variants. Flexible use through rail mounting, direct mounting or sticking. Up to 50% space saving on the mounting rail through cross-mounting.

This text is machine translated.

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
