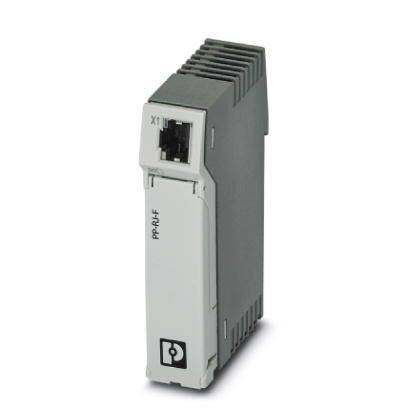

Phoenix Contact PP-RJ-SCC-F Patch panel
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Ambient temperature (operating): -40 °C - +75 °C.
- Ambient temperature (storage/transport): -40 °C - +85 °C.
- Protection class: IP20
- Net weight 124.2 g
- Material casing: Plastic
- Colour: grey
- Transmission length 100 m (incl. patch cables)
- Conductor cross-section 0.2 mm² - 1.5 mm²
- Conductor cross-section AWG: 26 - 16
- Maximum output power: 725 mA
- Maximum output power 60 W.
- Rated insulation voltage 85 V/DC
- Wire stripping length: 8 mm
- Product type
Patch panel
- Transfer rate
10 / 100 / 1000 MBit/s
- Connection method
Push-in wire connector

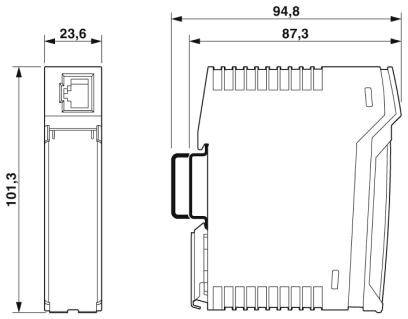

- Width
23.8 mm
- Height
101.3 mm
- Length
86 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2137246 Phoenix Contact PP-RJ-SCC-F Patch panel
User & Safety Instructions
User & Safety Instructions 2137246 Phoenix Contact PP-RJ-SCC-F Patch panel
Description
Safe shield connection to ground potential.
This text is machine translated.
This text is machine translated.
