Name: Phoenix Contact PSR-MM30-2NO-2DO-24DC-SC 2702357 Safety switchgear No. of relay outputs: 2
Brand: Phoenix Contact
SKU: 2209832
Availability: BackOrder

Yellow, rectangular electronic device with green terminal connectors on top, used for interface transmission in industrial applications.

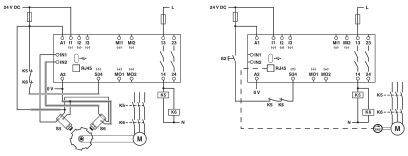

Circuit diagram with two circuits showing electrical wiring and components for controlling a 24V DC motor.

1/2

Image similar

Product type

Safety switchgear

No. of relay outputs

Operating voltage

24 V DC

Type

PSR-MM30-2NO-2DO-24DC-SC

Probe inputs

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 11 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,375.00 / piece)

€ 1,375.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Ambient temperature (operation): -40 °C ... 55 °C (observe derating)
Protection class: IP20
Contact design: 2 release current paths
Output fuse 6 A GL/GG
Mechanical life: 10x 10 6 operations
Mounting position: Vertical or horizontal
Mounting instructions: See derating curve
Connection type: screw terminals.
Wire stripping length: 7 mm
Pollution level: 2
Over voltage category III
Operating height: ≤ 2000 m (above sea level)
Number of digital inputs: 6
Mounting type: Rail mounting
Protection class Installation location minimum: IP54
Material casing: PBT
Housing color: Yellow
Operating voltage display: 1 x green LED (PWR)
Status display: 2x LED green (OUT1, OUT2)
Pluggable: Yes
Conductor cross-section rigid max.: 2.5 mm²
Conductor cross-section flexible max.: 2.5 mm²
Conductor cross-section AWG max. 12
Tightening torque: 0.5 Nm ... 0.6 Nm

Type: PSR-MM30-2NO-2DO-24DC-SC

Product type: Safety switchgear

No. of relay outputs: 2

Probe inputs: 3

Outputs: 2

Operating voltage: 24 V DC

Dim: (L x W x H) 114.5 x 22.5 x 112.2 mm

Weight: 196.3 g

Width: 22.5 mm

Height: 112.2 mm

Length: 114.5 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2209832 Phoenix Contact PSR-MM30-2NO-2DO-24DC-SC 2702357 Safety switchgear No. of relay outputs: 2

User & Safety Instructions

User & Safety Instructions 2209832 Phoenix Contact PSR-MM30-2NO-2DO-24DC-SC 2702357 Safety switchgear No. of relay outputs: 2

Description

Two-channel speed and standstill monitors up to SIL 3, Cat. 4, PL e, 2 safe relay outputs, suitable for the connection of HTL, TTL or Sin/Cos encoders as well as proximity switches, pluggable screw terminal, width: 22.5 mm

This text is machine translated.
