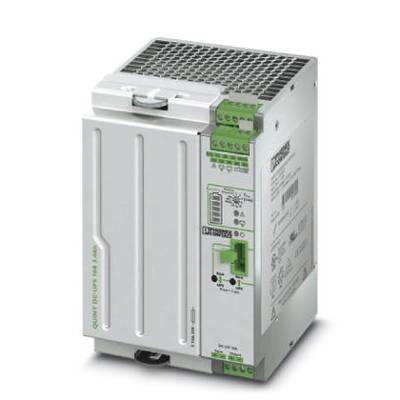

Phoenix Contact QUINT-UPS/ 24DC/ 24DC/10/3.4AH 2320267 Rail-mount UPS (DIN)
EAN:
Part number:
Item no:
Datasheet (PDF)
1 Piece(s)
Sales and shipping:
Number
Total (€ 318.49 / piece)
€
Only 1 Piece(s) available
Technical specifications
- Product type
Rail-mount UPS (DIN)
- Nominal power
240 W
- No. of outputs
1 x
- Input voltage (max.)
30 V DC
- Min. input voltage
18 V DC
- Output voltage (max.)
27.6 V DC
- Output voltage (min.)
19.2 V DC
- Type
QUINT-UPS/ 24DC/ 24DC/10/3.4AH
- Bridging time, max load
900 s
120
169 mm
125 mm
4.114 kg/m
DC
Documents & Downloads
Datasheet
Datasheet 516854 Phoenix Contact QUINT-UPS/ 24DC/ 24DC/10/3.4AH 2320267 Rail-mount UPS (DIN)
User & Safety Instructions
User & Safety Instructions 516854 Phoenix Contact QUINT-UPS/ 24DC/ 24DC/10/3.4AH 2320267 Rail-mount UPS (DIN)
Description
Uninterruptible power supply with integrated rechargeable battery and IQ technology 24 V/10 A. Provides information regarding the charging state, remaining runtime, and service life of your rechargeable battery module at all times and thereby increases system availability.
