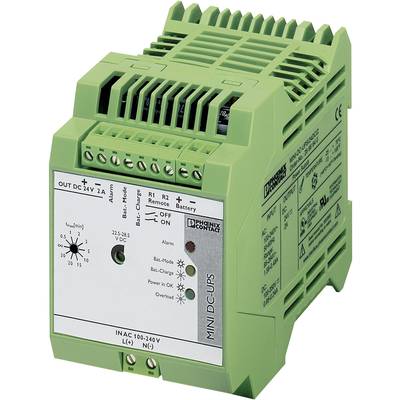

Phoenix Contact MINI-DC-UPS/24DC/2 2866640 Rail-mount UPS (DIN)
EAN:
Part number:
Item no:
Datasheet (PDF)
13 Piece(s)
Sales and shipping:
Number
Total (€ 256.30 / piece)
€ 315.13
-19 %
€
Highlights & Details
Uninterrupted power supply MINI-DC-UPS/24DC/2
- Extensive signalling
- Optimized battery management
- Integrated timeout
Technical specifications
- Input voltage
85 - 264 V/AC/110 - 350 V DC
- Product type
Rail-mount UPS (DIN)
- Nominal power
48 W
- No. of outputs
1 x
- Input voltage (max.)
350 V DC
- Min. input voltage
100 V DC
- Output voltage (max.)
29.5 V DC
- Output voltage (min.)
22.5 V DC
- Dim
(W x H x D) 68 x 99 x 107 mm
- Rechargeable battery capacity (details)
extern 0.8/1.3 Ah
- Connections
Pluggable screw terminals
- Output current (details)
2 A
- Input current
0,6 A/AC
- Weight
0.45 kg
- Width
68 mm
- Height
99 mm
- Depth
107 mm
- Interfaces
none
- Type
MINI-DC-UPS/24DC/2
- Bridging time, max load
1200 s
- Output voltage
24 V DC
- Max. current
3 A
67.5
99 mm
107 mm
0.447 kg/m
DC
Documents & Downloads
Datasheet
Datasheet 511776 Phoenix Contact MINI-DC-UPS/24DC/2 2866640 Rail-mount UPS (DIN)
User & Safety Instructions
User & Safety Instructions 511776 Phoenix Contact MINI-DC-UPS/24DC/2 2866640 Rail-mount UPS (DIN)
Description
Uninterruptible Power Supplies - The ideal solution in case of power outages. Uninterruptible power supplies (UPS) provide power even if the power stays away. A non-disruptive solution consists of three functional units: power supply, electronic switching unit and battery. Benefits of the MINI DC-UPS: Space-saving, getting power and electronic switching unit in the same enclosure · Flexible - Battery module with 0.8 or 1.3 Ah for 24 V DC or 1.6 and 2.6 Ah for 12 V DC · Fast installation - Prefabricated jumper saves time and prevents errors when connecting.
