Name: Phoenix Contact Socket housing cable SPC Total number of pins 2 Contact spacing: 10.16 mm 1711378 50 pc(s)
Brand: Phoenix Contact
SKU: 569312
Availability: InStock

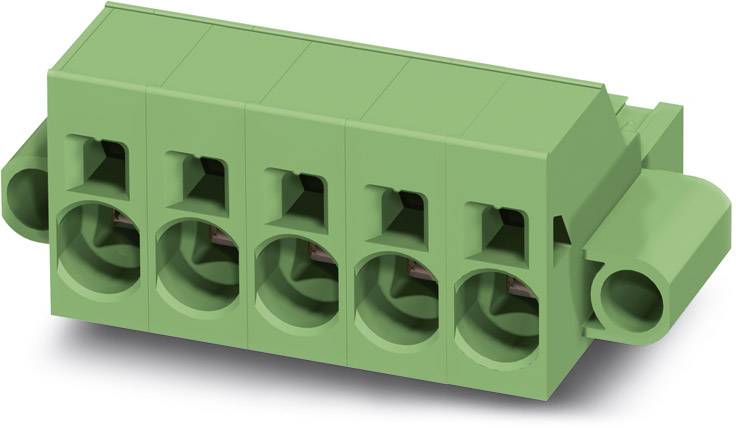

Green five-pole electrical connector with rectangular openings and side mounting elements.

Image similar

Product type

Socket housing cable

Connector type

Socket, straight

No. of rows

Series

SPC

10.16 mm

Datasheet (PDF)

Dispatches on Tue 20 Oct

606 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 4.70 / piece)

€ 234.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Printed-circuit board connector SPC 16/ 2-STF-10,16

Content: 50 pc(s)
No. of rows: 1
Total number of pins: 2

Technical specifications

Product type: Socket housing cable

Connector type: Socket, straight

No. of rows: 1

Connector system: wire-to-board

Series: SPC

Features: + push-in spring bracket

CS: 10.16 mm

Pins per row: 2

Total number of pins: 2

Width: 44.50 mm

Nominal current: 76 A

Nominal current - rounded value: 76 A

Content: 50 pc(s)

AWG max.: 4

AWG (min.): 18

Stripping length (max.): 18.00 mm

Dim: (L x W x H) 25.10 x 44.50 x 38.08 mm

Connection: Spring-loaded terminal
Plug

Manufacturer part #: 1711378

Factory colour: Green

Industrial packaging: Yes

Contact material: Silver plated

Connector contact surface: Tin plated

Nominal voltage: 1000 V

Height: 38.08 mm

Length: 25.10 mm

max. cross section: 16 mm²

Min. cross section: 0.75 mm²

Type: SPC 16/ 2-STF-10,16

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 569312 Phoenix Contact Socket housing cable SPC Total number of pins 2 Contact spacing: 10.16 mm 1711378 50 pc(s)

User & Safety Instructions

User & Safety Instructions 569312 Phoenix Contact Socket housing cable SPC Total number of pins 2 Contact spacing: 10.16 mm 1711378 50 pc(s)

Description

Plug component, Nominal current: 76 A, Rated voltage (III/2): 1000 V, Number of positions: 2, Pitch: 10.16 mm, Connection method: Spring-cage conn., Color: green, Contact surface: Silver

Description

Plug component, Nominal current: 76 A, Rated voltage (III/2): 1000 V, Number of positions: 2, Pitch: 10.16 mm, Connection method: Spring-cage conn., Color: green, Contact surface: Silver
