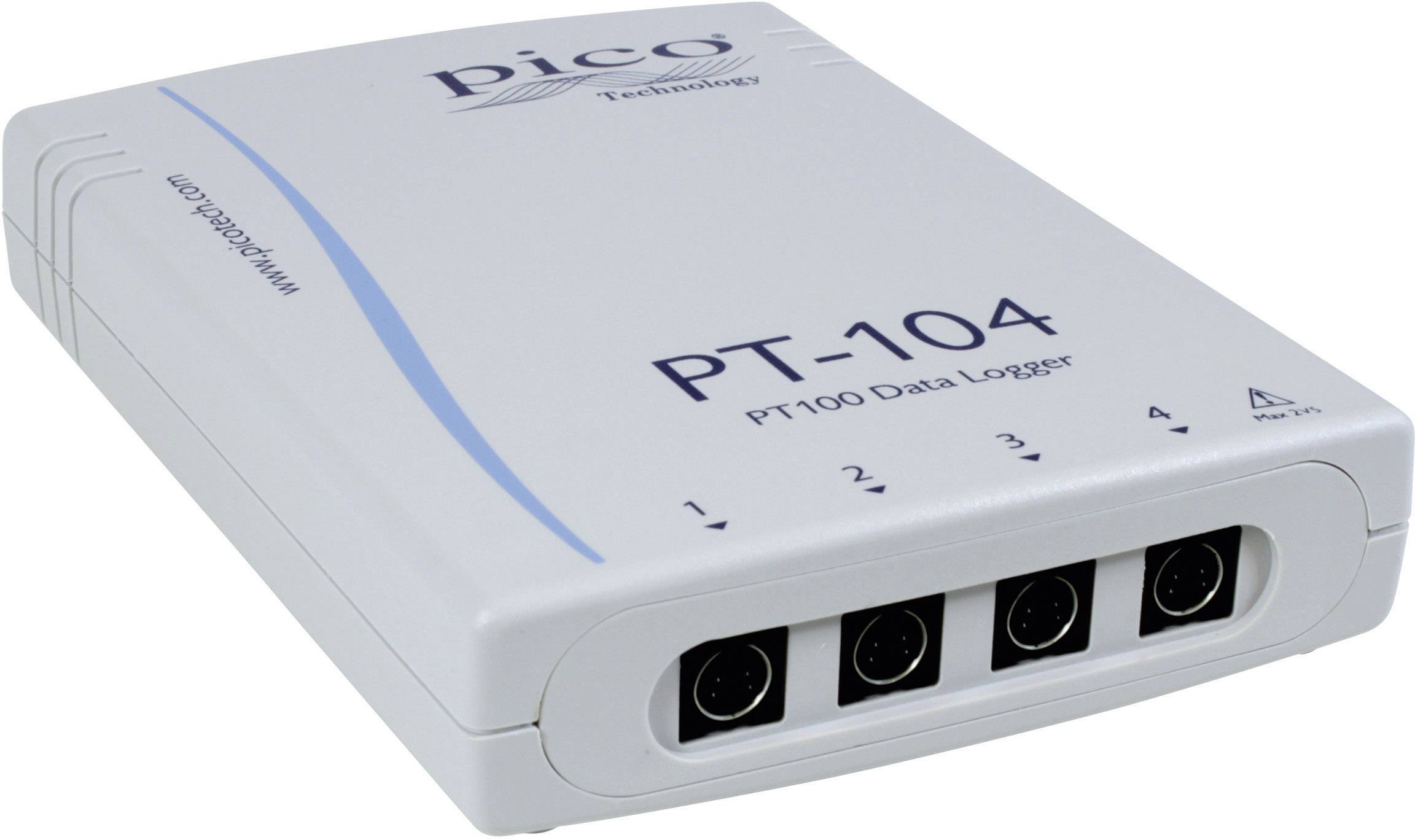

Pico Technology PT-104 Temperature, resistance, Spannun g USB Data Logger
EAN:
Part number:
Item no:
Number
Total (€ 1,045.00 / piece)
€ 1,045.00
incl. VAT
14-day return policy included
Technical specifications
- Product type
Multi-channel data logger
- Unit of measurement
Temperature
Voltage
Resistance
- Temperature resolution
0,001 °C
- Temperature reading range (min.)
-200 °C
- Temperature reading range (max.)
800 °C
Manufacturer's standards (no certificate)
- Voltage reading range (max.)
2.5 V
- Power supply (details)
USB or Ethernet
- Dim
(L x W x H) 184 x 135 x 36 mm
- Voltage reading range (min.)
0 V
- Temperature reading range
-200 up to 800 °C
- Resistance reading range (max.)
375 Ω
- Resistance reading range (min.)
0 Ω
- Width
135 mm
- Height
36 mm
- Length
184 mm
- Power supply
USB
- Reading accuracy temperature
0.01 °C
- Type
PT-104
- Reading range
Temperature, resistance, Spannun g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 128663 Pico Technology PT-104 Temperature, resistance, Spannun g USB Data Logger
Description
The Data Logger PT-104 is a high-resolution four-channel temperature converter for PT100 and Pt1000 platinum resistance thermometer (PRTs). It can be used for temperature, resistance and voltage measurement. In the modes of PT100, Pt1000 and resistance measurement, the device can be a two-, three- or four-wire circuit. The highest degree of accuracy is achieved with the four-wire measurement. In the voltage mode, the input connection as differential input with earth or two unbalanced inputs.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Platinum RTD-data recording device
- USB installation manual
- USB cable
- Software and reference-CD
- Ethernet patch cable.
