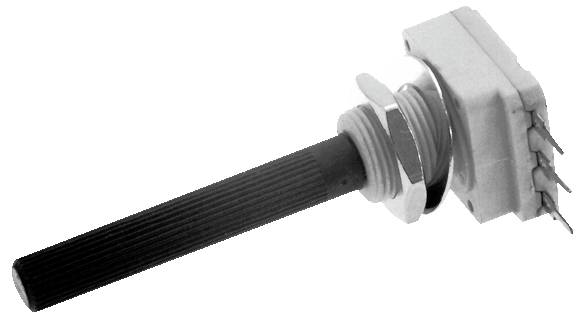

Piher PC16SH-10IP06503A2020TA Carbon film pot Dustproof Mono 0.2 W 50 kΩ 1 pc(s)
Part number:
Item no:
Product type
Carbon film pot
Potentiometer features
Dustproof
Resistance
50 kΩ
Resistance characteristic
linear
Output
Mono
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.93
10
8% = € 0.22
€ 2.71
25
11% = € 0.31
€ 2.62
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.93 / piece)
€ 2.93
plus VAT.
Highlights & Details
Piher potentiometer 16/6 mono linear 50K
- 50 kΩ
- linear
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series PC16
- Design: Horizontal
- Length, socket 16 mm
- Width, base 16 mm
- Height, socket 6.5 mm
- Length, shaft 45 mm
- Diameter, Shaft 6 mm
- Axis: Plastic
- Resistance value 50 kOhm
- Resistance unit: KOhm
- Resistance value_1: 50
- Resistance tolerance: ±20 %
- Resistance curve: Linear
- Rated output: 0.2 W
- Max voltage 250 V
- Mechanical rotation angle 300 °
- Electrical angle of rotation 280 °
- Stop strength 40 Ncm
- Torque 1.5 Ncm
- Approvals UL 94 V0
- Product type
Carbon film pot
- Potentiometer features
Dustproof
- Resistance
50 kΩ
- Resistance characteristic
linear
- Output
Mono
- Power rating
0.2 W
- Cut-off voltage
250 V
- Mechanical angle
300°
- Electrical angle
280°
- Torque (max.)
1.5 Ncm
- Impact tolerance
40 Ncm
- Axle length
45 mm
- Axle type
Plastic
- Axle Ø
6 mm
- CS
5 mm
- Length
16 mm
- Width
16 mm
- Height
6.5 mm
- Tolerance ±
20 %
- Content
1 pc(s)
- Type
PC16SH-10IP06503A2020TA
- Dim
(L x W x H) 16 x 16 x 6.5 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3527543 Piher PC16SH-10IP06503A2020TA Carbon film pot Dustproof Mono 0.2 W 50 kΩ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3527543 Piher PC16SH-10IP06503A2020TA Carbon film pot Dustproof Mono 0.2 W 50 kΩ 1 pc(s)
Description
POTENTIONS mono linear 6mm-axle
This text is machine translated.
This text is machine translated.
Features
- • 16mm carbon film potentiometer
- • Protection class IP54 to IEC 60529
- • Self-extinguishing material UL 94-V0
Scope of delivery
- PC16SH-10IP06503A2020TA.
