Name: Piher PT10LV10-103A2020-S Carbon film pot Enclosed linear 0.15 W 10 kΩ 220 ° 235 ° 1 pc(s)
Brand: Piher
SKU: 3523547
Availability: InStock

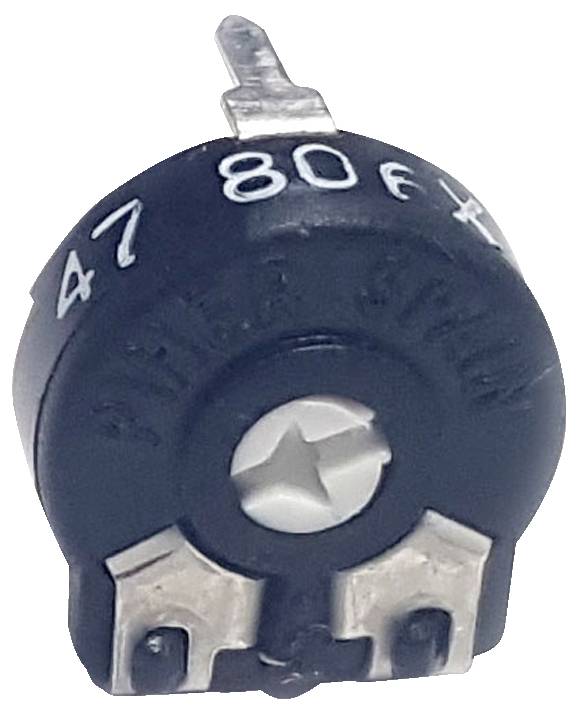

A black and silver rotary potentiometer labeled '47 806'. It has two metal terminals and a central adjustment screw for varying resistance.

Product type

Carbon film pot

Resistance

10 kΩ

Resistance characteristic

linear

Power rating

0.15 W

Mechanical angle

235 °

Datasheet (PDF)

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

149 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 0.6036 / piece)

€ 0.60

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Piher e-controller horizontal RM5/10 10K

Our service for you

Technical specifications

ESD Packaging: No ESD
Series PT10
Design: Horizontal
Diameter, housing 10.3 mm
Axis: Arrow slot
Resistance value 10 kOhm
Resistance unit: KOhm
Resistance value_1: 10
Resistance tolerance: ±20 %
Resistance curve: Linear
Rated output: 0.15 W
Max voltage 200 V
Confirmation: From above
Mechanical rotation angle 235 °
Electrical angle of rotation 220 °
Stop strength 5 Ncm
Torque 2 Ncm

Product type: Carbon film pot

Potentiometer features: Enclosed

Resistance: 10 kΩ

Resistance characteristic: linear

Power rating: 0.15 W

Cut-off voltage: 200 V

Electrical angle: 220°

Mechanical angle: 235°

Tolerance ±: 20 %

Height: 9.5 mm

CS: 10 mm

Content: 1 pc(s)

Type: PT10LV10-103A2020-S

RoHS-compliant: Yes

Outside Ø: 10.3 mm

Variants(All information include VAT, plus shipping costs)

Resistance

Mechanical angle

Piher PT10LV10-103A2020-S Carbon film pot Enclosed linear 0.15 W 10 kΩ 220 ° 235 ° 1 pc(s)

Item no:3523547

Fast track dispatch on Thu 5 Nov

149 Piece(s)Conrad Electronic

This article

10 kΩ

235 °

10 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.6036^*

Piher PT10LH01-103A2020-S Carbon film pot Enclosed linear 0.15 W 10 kΩ 220 ° 235 ° 1 pc(s) Piece

Item no:3523540

Fast track dispatch on Thu 5 Nov

116 Piece(s)Conrad Electronic

10 kΩ

235 °

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.6036^*

Piher PT10LH01-253A2020-S Carbon film pot Enclosed linear 0.15 W 25 kΩ 220 ° 235 ° 1 pc(s) Piece

Item no:3523539

Fast track dispatch on Thu 5 Nov

140 Piece(s)Conrad Electronic

25 kΩ

235 °

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.6036^*

Piher PT10LH01-502A2020-S Carbon film pot Enclosed linear 0.15 W 5 kΩ 220 ° 235 ° 1 pc(s)

Item no:3527540

Fast track dispatch on Thu 5 Nov

18 Piece(s)Conrad Electronic

5 kΩ

235 °

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.6036^*

Piher PT10LH01-503A2020-S Carbon film pot Enclosed linear 0.15 W 50 kΩ 220 ° 235 ° 1 pc(s) Piece

Item no:3523541

Fast track dispatch on Thu 5 Nov

134 Piece(s)Conrad Electronic

50 kΩ

235 °

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.6036^*

Piher PT10LV10-101A2020-S Carbon film pot Enclosed linear 0.15 W 100 Ω 220 ° 235 ° 1 pc(s)

Item no:3523542

Fast track dispatch on Thu 5 Nov

34 Piece(s)Conrad Electronic

100 Ω

235 °

10 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.6036^*

Piher PT10LV10-102A2020-S Carbon film pot Dustproof linear 0.15 W 1 kΩ 220 ° 235 ° 1 pc(s)

Item no:3523544

Fast track dispatch on Thu 5 Nov

84 Piece(s)Conrad Electronic

1 kΩ

235 °

10 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.6036^*

Piher PT10LV10-104A2020-S Carbon film pot Enclosed linear 0.15 W 100 kΩ 220 ° 235 ° 1 pc(s)

Item no:3523550

Fast track dispatch on Thu 5 Nov

286 Piece(s)Conrad Electronic

100 kΩ

235 °

10 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.6036^*

Piher PT10LV10-105A2020-S Carbon film pot Enclosed linear 0.15 W 1 MΩ 220 ° 235 ° 1 pc(s)

Item no:3523552

Fast track dispatch on Thu 5 Nov

76 Piece(s)Conrad Electronic

1 MΩ

235 °

10 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.6036^*

Piher PT10LV10-251A2020-S Carbon film pot Enclosed linear 0.15 W 250 Ω 220 ° 235 ° 1 pc(s) Piece

Item no:3523543

Fast track dispatch on Thu 5 Nov

54 Piece(s)Conrad Electronic

250 Ω

235 °

10 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.6036^*

Documents & Downloads

Datasheet

Datasheet 3523547 Piher PT10LV10-103A2020-S Carbon film pot Enclosed linear 0.15 W 10 kΩ 220 ° 235 ° 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3523547 Piher PT10LV10-103A2020-S Carbon film pot Enclosed linear 0.15 W 10 kΩ 220 ° 235 ° 1 pc(s)

Description

Trimmer PT10Lv horizontal RM5/10mm

This text is machine translated.

Features

• Support made of high-quality polyester film
• Fully enclosed housing prevents dust, colophonium from entering and protects against other harmful influences
• Double sander, 2-way bearing
• Great stability makes multiple use possible as a shift rotational resistance
• Slider position visible by arrow
• Resistant to cleaning agents, ultrasonic cleaning possible

Description

Trimmer PT10Lv horizontal RM5/10mm

This text is machine translated.

Features

• Support made of high-quality polyester film
• Fully enclosed housing prevents dust, colophonium from entering and protects against other harmful influences
• Double sander, 2-way bearing
• Great stability makes multiple use possible as a shift rotational resistance
• Slider position visible by arrow
• Resistant to cleaning agents, ultrasonic cleaning possible
