PL-AMD10V Eltako Dimmer actuator Flush mount

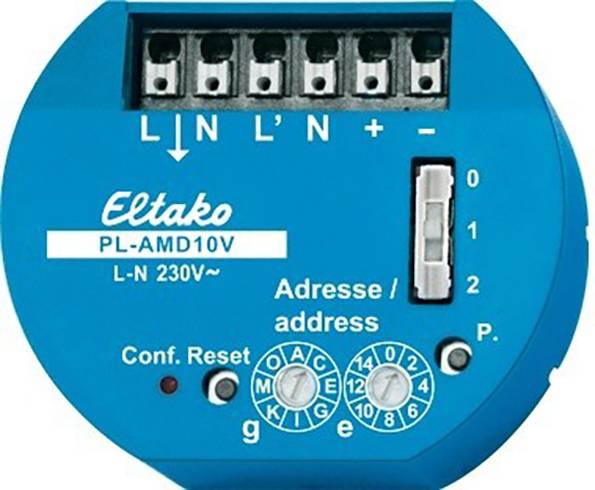

Powerline DIMM actuator 1-10V. 53x43mm, 25mm deep, for mounting in 58-mm switch boxes. For switching and/or dimming via a 1-10V interface. 1 closing contact not isolated 600VA. Standby loss of only 0.5 watt. For controlling and dimming in different places. Current sink of max. 30mA for active and passive EVG. A Powerline Sensor input is required for control. There are two rotary switches on the front for the address assignment: The left rotary switch determines the group address g with 16 alphabetical values from A to P. The right rotary switch determines the element address element with 16 numerical values from 0 to 15. Above it there is a sliding switch which does not function. To the left of the rotary switches is a red LED indicating all activities. There is a reset button next to it and a service pin to the right of it. Functions as per operating instructions. The above connection terminals are plug-in terminals for conductor cross-sections of 0.2 mm2 up to 1.5mm2.
