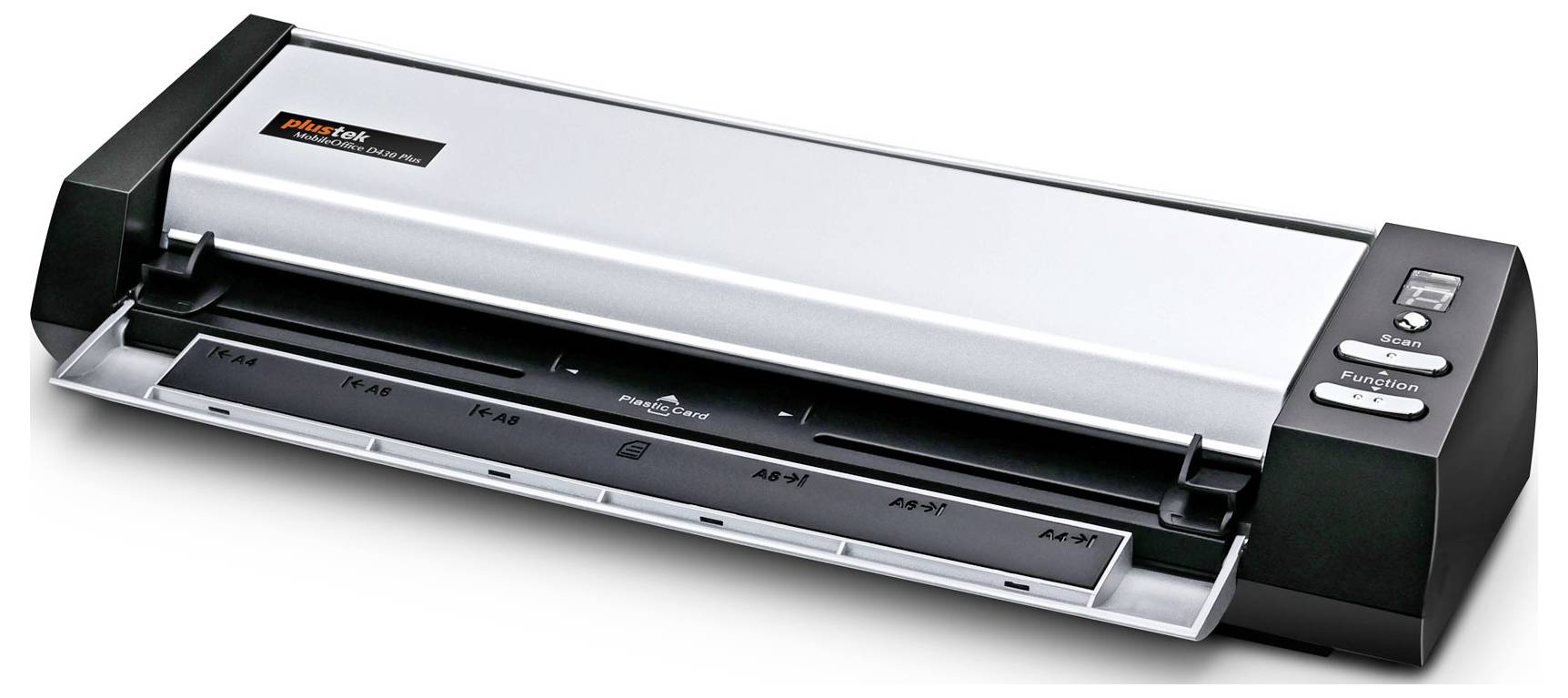

A portable document scanner with buttons on the right side, designed for A4-size paper scanning, featuring a sleek, compact design.

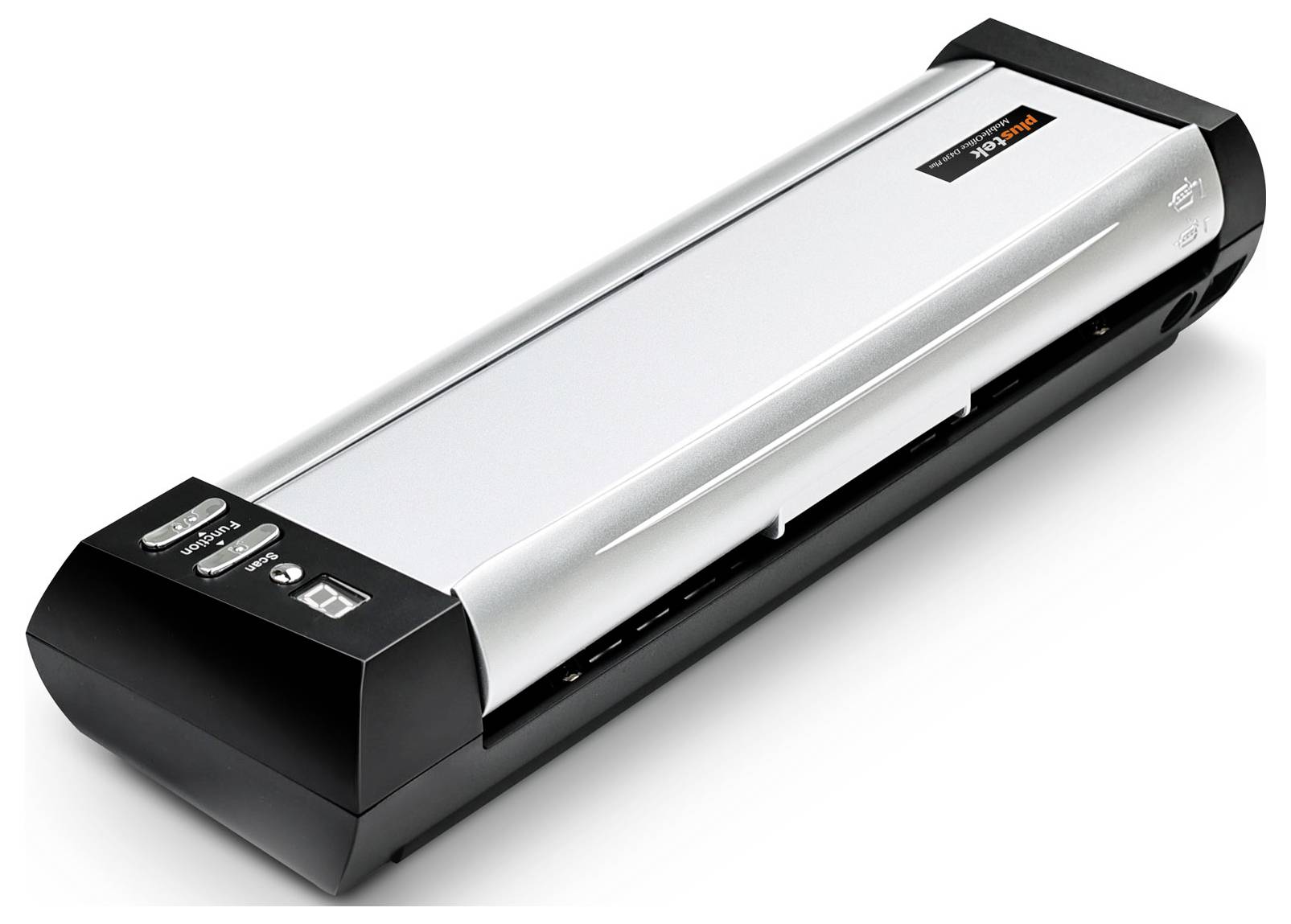

A silver and black laminator machine with control buttons on its side, designed for laminating documents.

A scanner processes an invoice document with 'Thank you' and total $519.00 visible, signed by 'John Doe, Accounts Manager'.

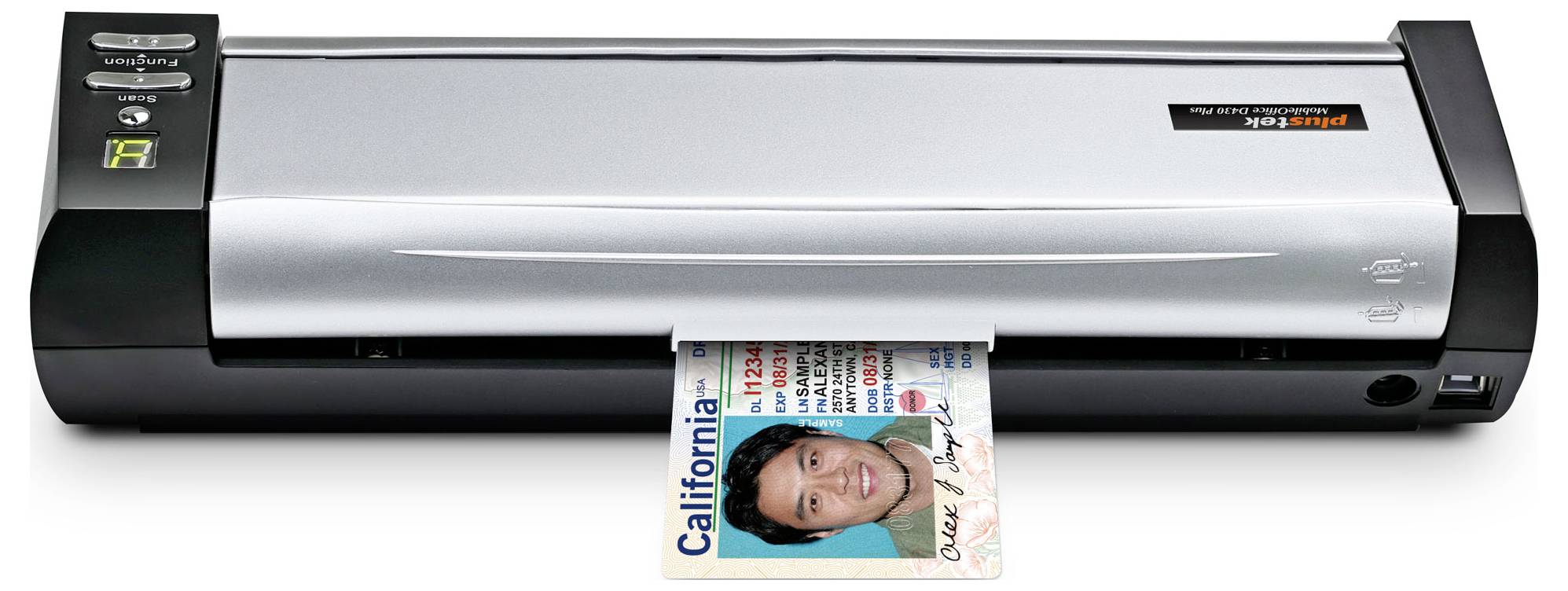

A silver card scanner is processing a California driver's license, which is partially inserted with the photo and details visible.

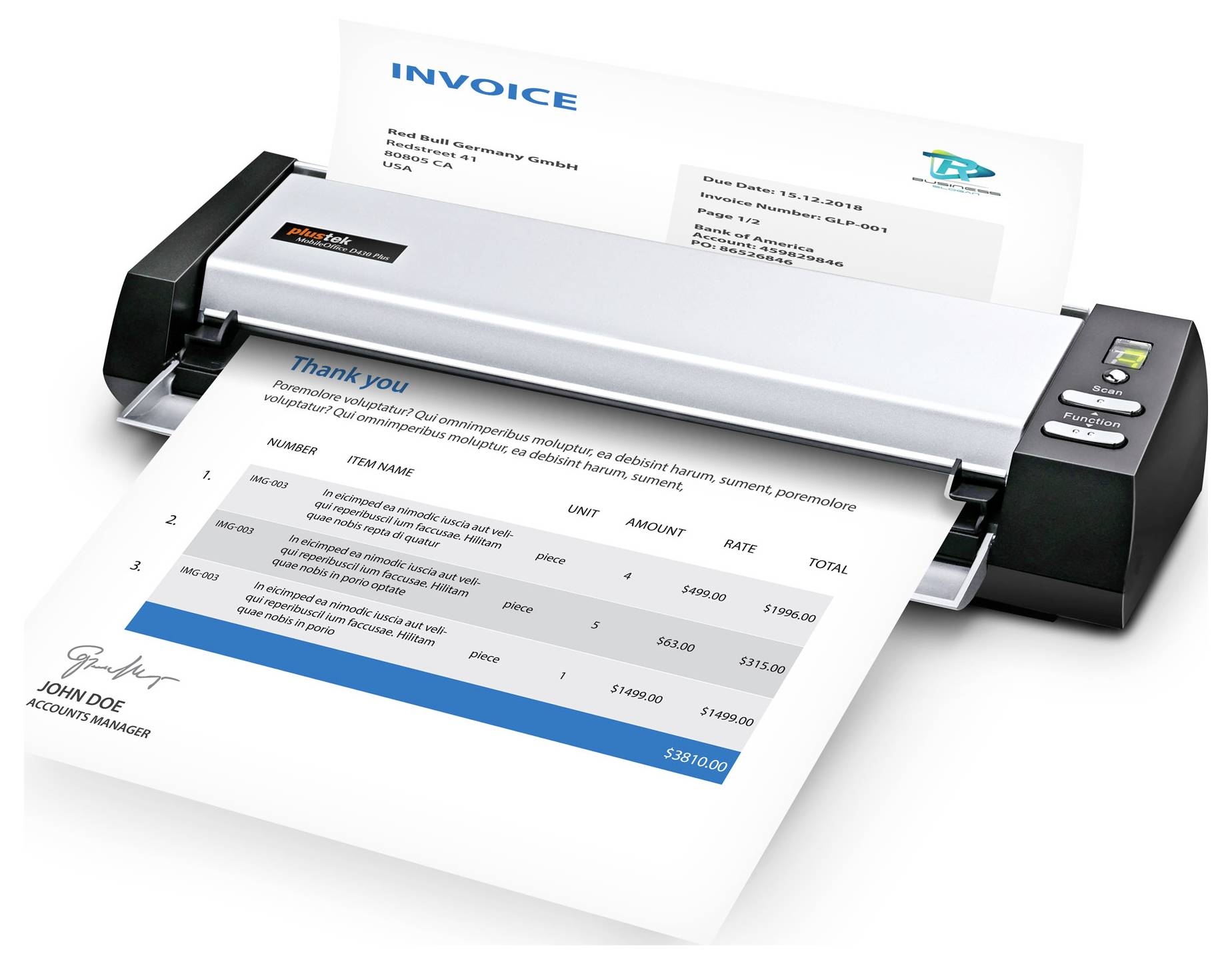

A scanner is scanning an invoice and a receipt. The scanned receipt thanks the customer, lists numbers, items, and prices, and includes a signature.

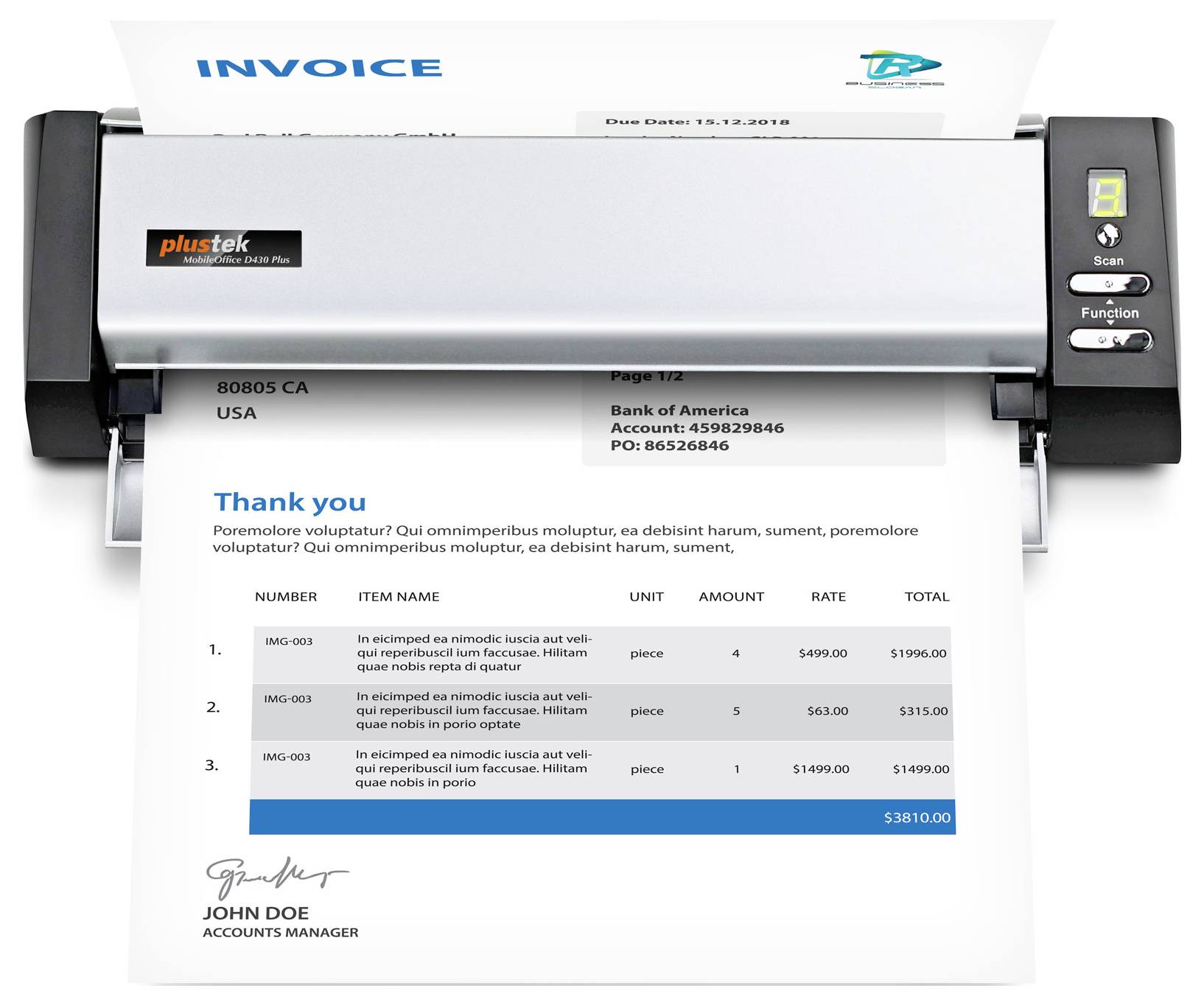

A scanner processes an invoice with a 'Thank you' note. The document lists a total of $3810.00, from John Doe, Accounts Manager.

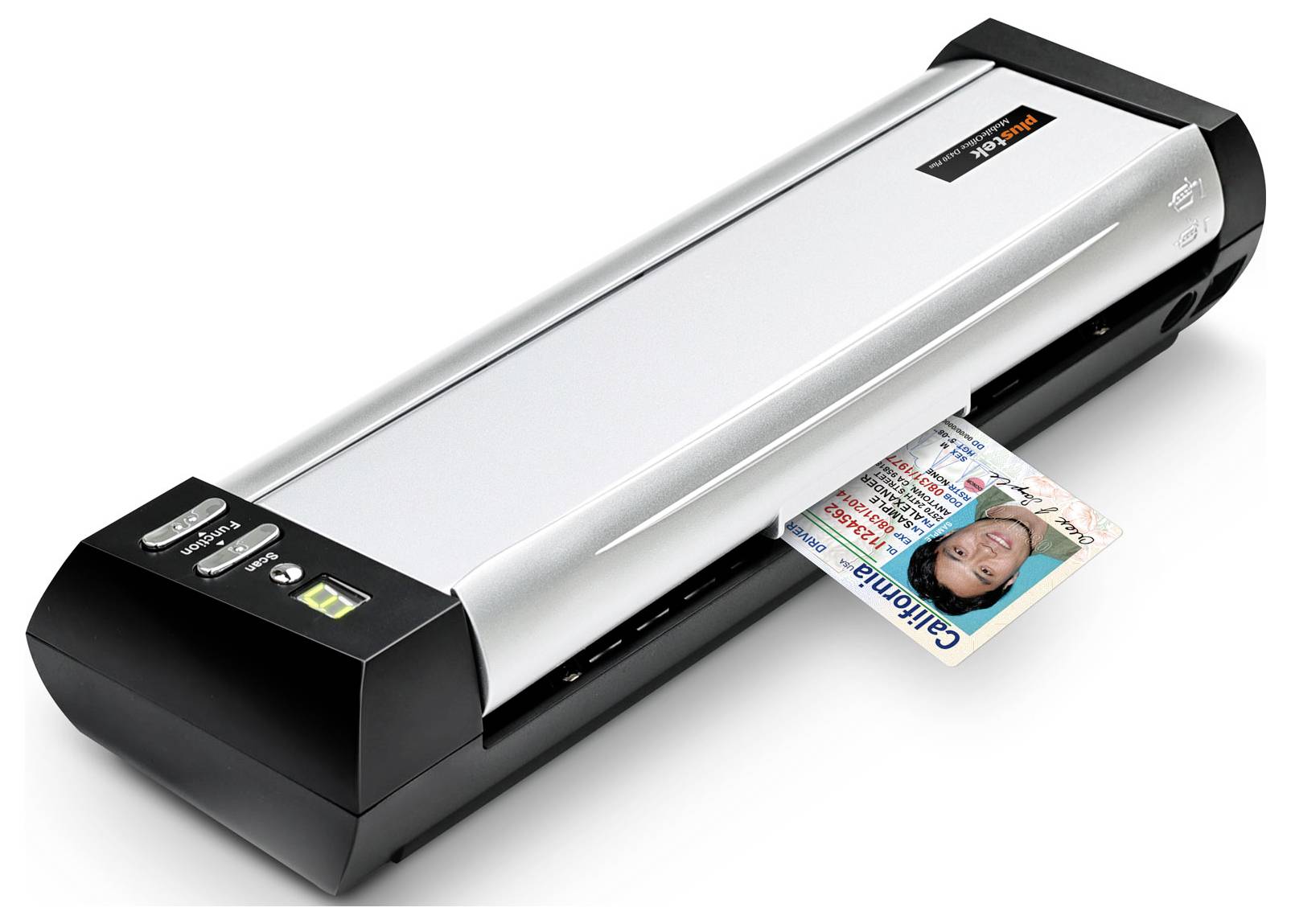

A laminating machine with a partially laminated card emerging, showing a person's face and the word 'California.'

1/10

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 276.47 / piece)

€ 276.47

plus VAT.

Only 6 Piece(s) available

Report legal concerns

Highlights & Details

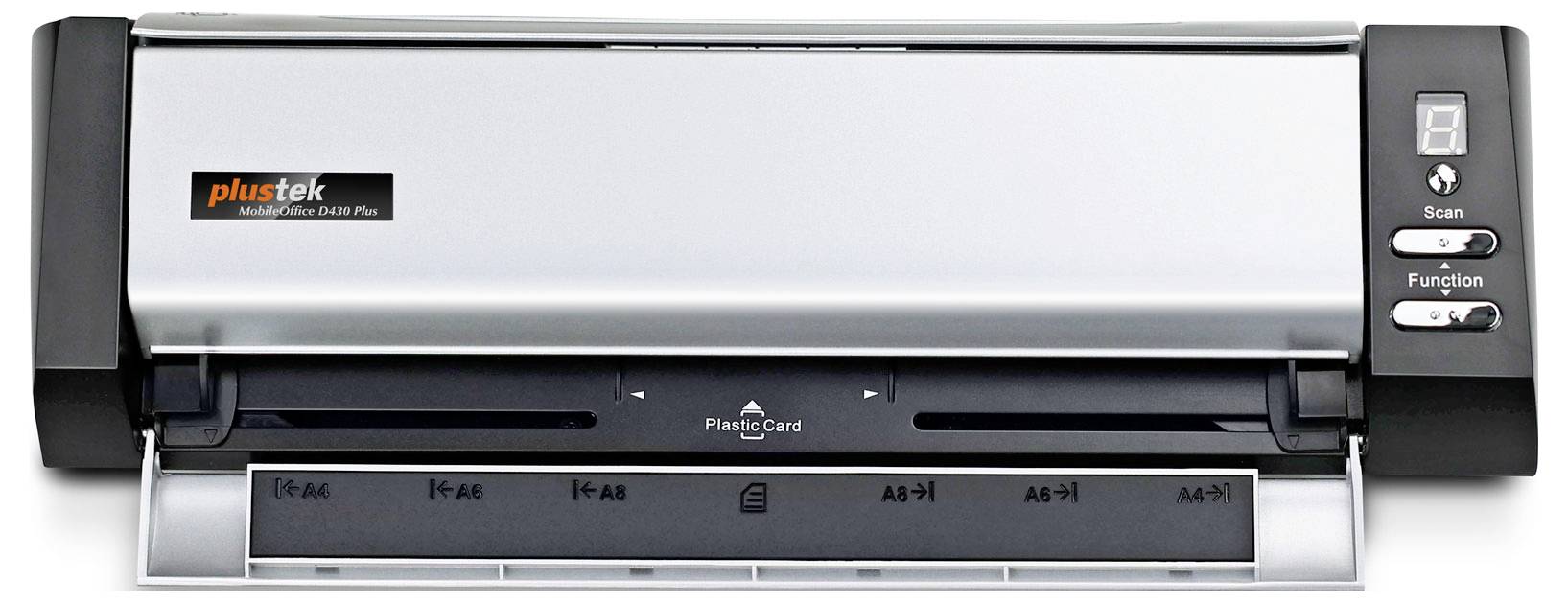

MobileOffice D430 Plus High-performance scanner for documents and cards for the hospital administration desk

• Flexible paper output - Document can be printed on the back or top side
• Suitable for scanning credit cards, driving licenses, ID cards and health cards
• TWAIN/Scan driver included in delivery

Technical specifications

Image sensor CIS x 2
Optical resolution 600 dpi
Hardware resolution 600 x 600 dpi
Colour: 48-bit input, 24-bit output
Grayscale: 16-bit input, 8-bit output
Black & White 1-bit
Scanning speed simplex: 1.9 seconds (grayscale, 200 dpi, A4)
Duplex: 1.9 seconds (grayscale, 200 dpi, A4)
Scanning range (W x L) Maximum 216 x 1270 mm (8.5" x 50")
Minimum 12.7 x 12.7 mm (0.5" x 0.5")
Supported paper size (W x L) Maximum: 240 x 1270 mm (9.45" x 50")
Minimum:
Front-On, Front-Off 105 x 45 mm (4.13" x 1.77")
Front-On, Rear-Off 30 x 45 mm (1.18" x 1.77")
Grammage (paper weight) Supported paper thickness: 50 g/㎡ ~ 125 g/㎡.
The maximum permissible thickness of plastic cards is: Unembossed 0.8 mm
Daily volume (pages) 1000
Function keys Scan, Up, Down
Power supply: 24V / 0.75A
Connection USB 2.0
Net weight 0.96 Kgs (2.13 Lbs)
Dimensions (W x D x H) 303 x 94 x 60 mm (11.93" x 3.7" x 2.36")
Interface TWAIN compatible
Operating system Windows 8 / 10 / 11
System requirements 2.0 GHz CPU processor or higher[1]
[1]Windows recommended: 2.8 GHz Intel® Core™ i5 processor with 4 CPU cores or higher
At least 4 GB RAM (8 GB or more recommended)
6 GB hard disk storage for the program installation
Display dimensions of 1024 x 768 or higher
Incl. Plustek DocAction software
Plustek OCR (for Windows)
(Supported by ABBYY® FineReader®)
All card scanners [M] 2
All document scanners [M] 1
All SB terminal scanners [M] 3
After resolution: [F] 2
After scan speed: [F] 2.3
By Main Purpose: [F] 1,3,5
By image sensor: [F] 2
By day volume: [F] 2
By software supplied: [F] 13
Filter by scan purpose: [F] 5.6
Filter by other functions: [F] 2
Filter by network type: [F] 3
After connection: [F] 1
By ADF Capacity: [F] 4
By Scanner Type: [F] 2
According to lamps: [F] 1
Filter by RFID detection: [F] 2
Resolution [S] 600 dpi
Scanning speed: [S] 1.9 seconds
Max. Scanning range [S] 216 x 1270 mm
Daily scanning: [S] 1.000
Plastic cards: [S] Up to 0.8 mm
Link [C] products/personal desktop scanners/MobileOffice-D430-plus/

Product type: Document scanner

Scan function: Documents
Plastic cards

Optical resolution: 600 x 600 dpi

Scan area width (min.): 216 mm

Scan area (max.): 1270 mm

Paper size (max.): 240 x 1270 mm (9.45'' x 50'')

Sensor type: CIS

Interfaces: USB

Width: 303 mm

Height: 60 mm

Depth: 94 mm

Dim: (W x H x D) 303 x 60 x 94 mm

Weight: 0.96 kg

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3638614 Plustek MobileOffice D430 Plus Document scanner 240 x 1270 mm (9.45'' x 50'') 600 x 600 dpi USB Documents, Plastic cards

User & Safety Instructions

User & Safety Instructions 3638614 Plustek MobileOffice D430 Plus Document scanner 240 x 1270 mm (9.45'' x 50'') 600 x 600 dpi USB Documents, Plastic cards

Description

The Plustek MobileOffice D430 Plus is a high-speed scanner with a compact design, Ideal suitable for vertical market applications that require the collection of ID-cards, embossed cards and documents from 1.5 x 1.5" up to 8.5 x 50".

This text is machine translated.

Scope of delivery

Scanners
USB cable

Hints

Pre-installed OCR
