Buy Plustek OpticPro A390 Document scanner A3 USB type B Documents, OHP film, Drawings, Handwriting, Photos, Books

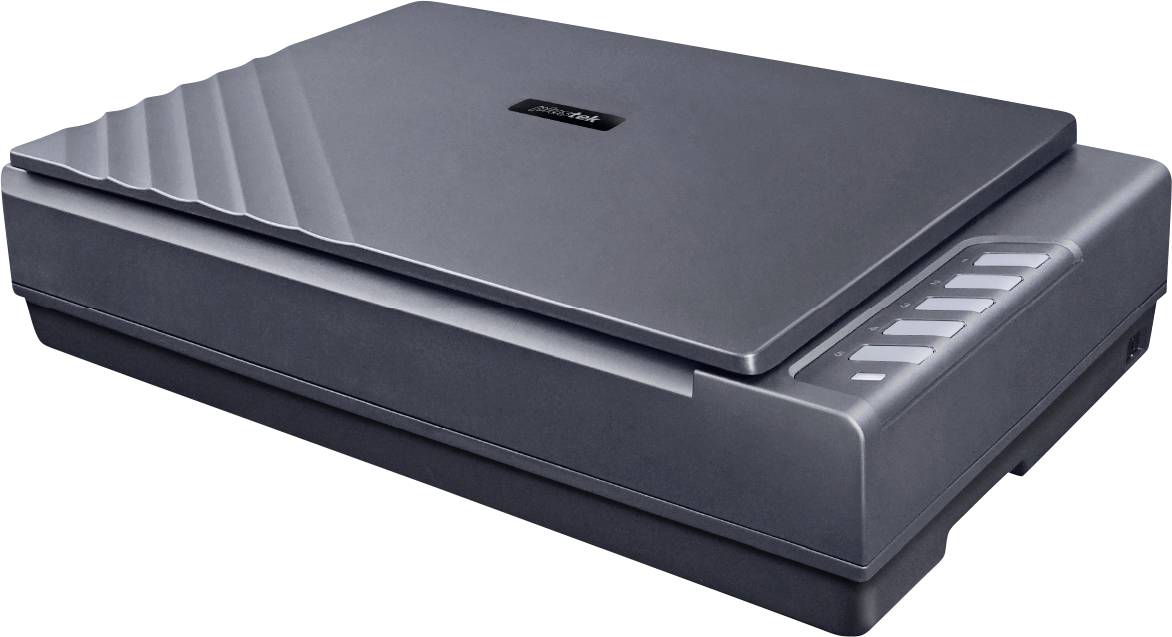

A flatbed scanner with a dark gray exterior and a closed lid, designed for scanning documents or photos.

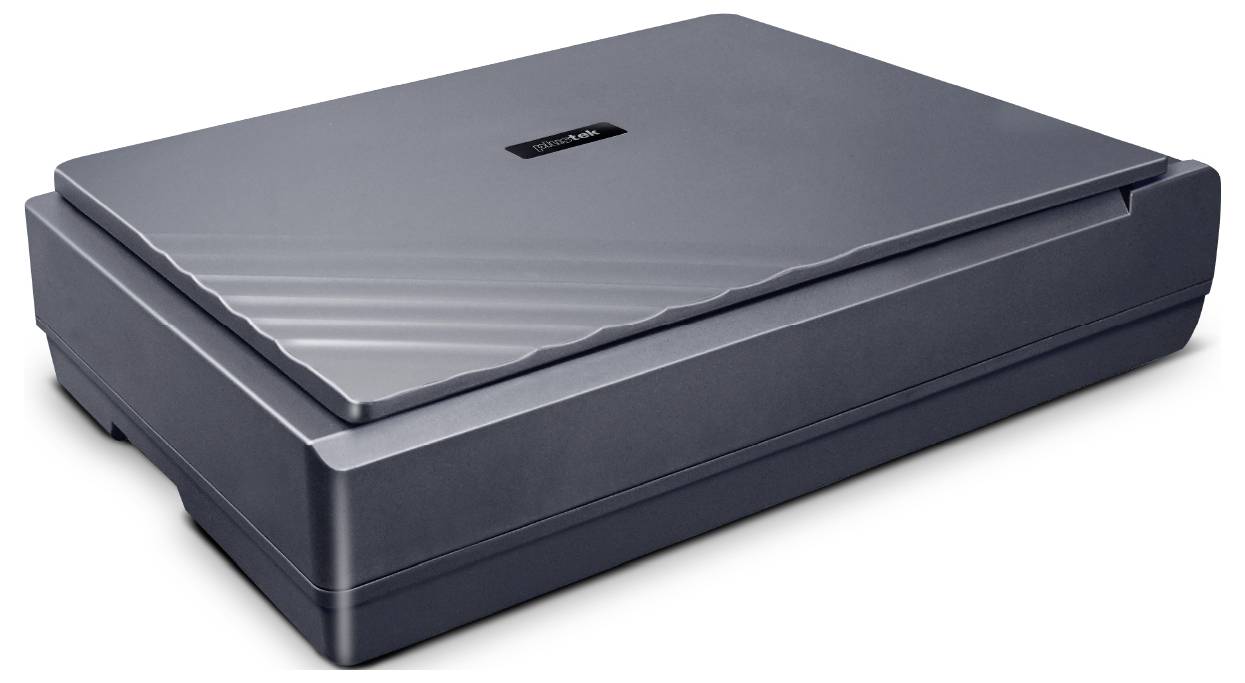

A closed, flatbed scanner with a dark gray cover.

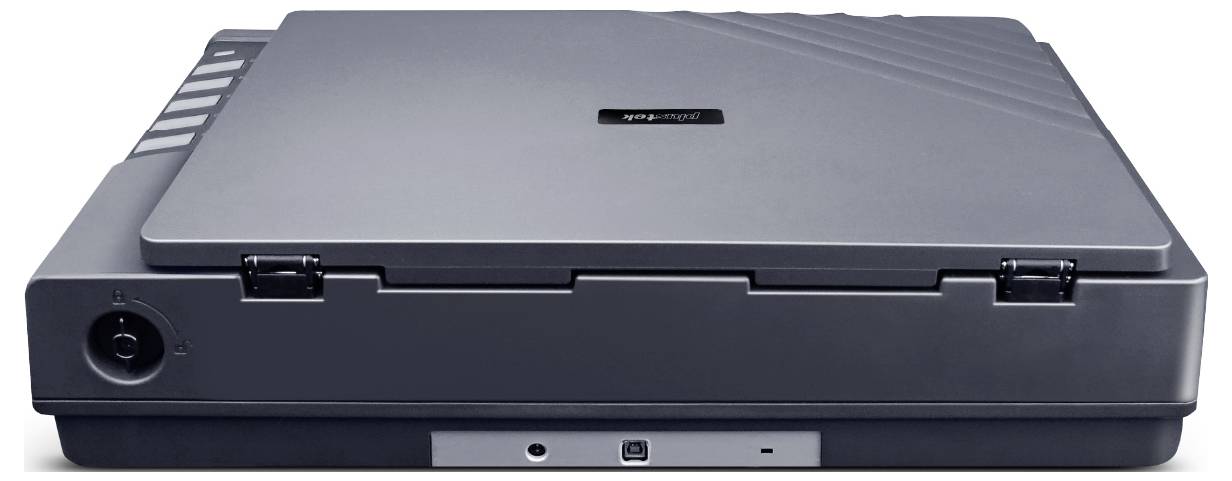

Closed gray laptop viewed from the front with a visible hinge and power button on the left side.

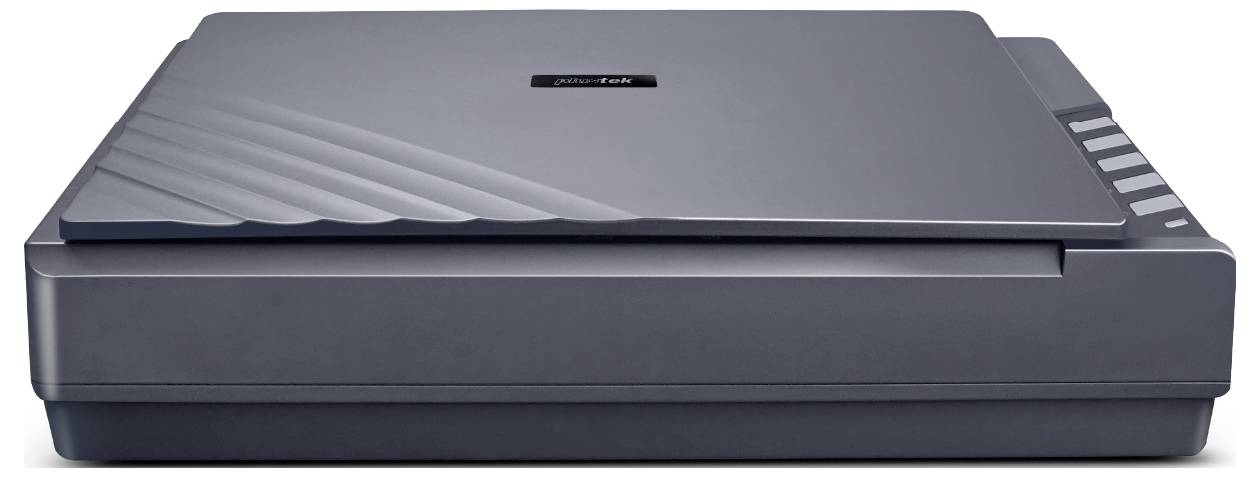

A closed, gray flatbed scanner viewed from the front, showing ridged detail on the lid's corner, suitable for office or home use.

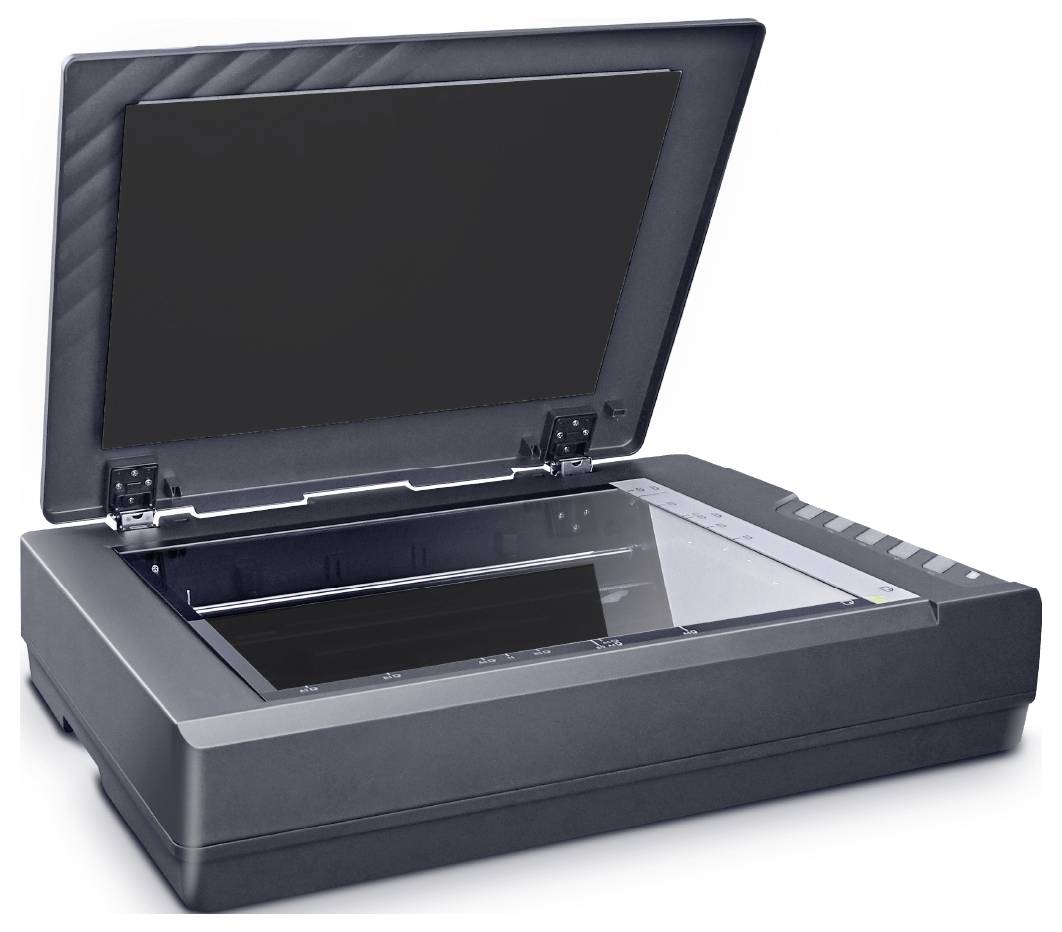

An open flatbed scanner with a lid raised, showing a glass scanning surface, ready for scanning documents or photos.

1/5

Fast track dispatch on Fri, 11 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,021.01 / piece)

€ 1,021.01

plus VAT.

Only 3 Piece(s) available

Report legal concerns

Highlights & Details

OpticPro A390 An effortless solution for scanning in A3 large format

A3-large format, scanning speed of less than 1.75 seconds per page, hall effect
Simply close the cover and the scanning starts immediately, OCR, automatic image optimization

Technical specifications

Image sensor 4-line CCD
Light type: LED
Optical resolution 600 dpi
Interpolated resolution 1600 dpi
Colour: 48-bit input, 24-bit output
Grayscale: 16-bit input, 8-bit output
Black & White 1-bit
Scanning speed < 1.75 seconds, 300 dpi (color/grayscale/ black/white)
Scanning area (W x L) Maximum: 304.8 mm x 431.8 mm (12" x 17"), A3
Daily volume (pages) 5.000
Power supply 24 Vdc/ 1.25 A.
Power consumption < 24 W (operation), < 8 W (standby)
Connection USB 3.2 Gen 1x1 type B
Net weight 9.5 Kgs (20.95 Lbs)
Dimensions (W x D x H) (57 x 433 x 154 mm (25.86” x 17.04” x 6.04”)
Interface TWAIN compatible, WIA
Operating system Windows 7 / 8 / 10 / 11
Accompanying software Plustek image Express, Plustek SmartTWAIN
Additional functions:
Output: TIFF, multi-page TIFF, JPEG, RTF, BMP, PDF, multipage PDF, PNG, Searchable PDF, docx, xlsx, txt
Document coverage: Black background
Pre-installed OCR
Plustek OCR (driven by the ABBYY® engine)

Product type: Document scanner

Scan function: Documents
OHP film
Drawings
Handwriting
Photos
Books

Scan area width (min.): 304.8 mm

Scan area (max.): 431.8 mm

Paper size (max.): A3

Sensor type: CCD

Interfaces: USB type B

Width: 57 mm

Height: 154 mm

Depth: 433 mm

Dim: (W x H x D) 57 x 154 x 433 mm

Weight: 9.5 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3639493 Plustek OpticPro A390 Document scanner A3 USB type B Documents, OHP film, Drawings, Handwriting, Photos, Books

Description

The OpticPro A390 was developed for high-quality scanning of artwork, photos, painting albums, books and other large-format documents up to a size of 304 mm x 426 mm.

This text is machine translated.

Scope of delivery

Scanners
Power supply,
Plustek image express software
Plustek SmartTWAIN

Hints

Pre-installed OCR

System requirements

Windows 7 / 8 / 10 / 11
