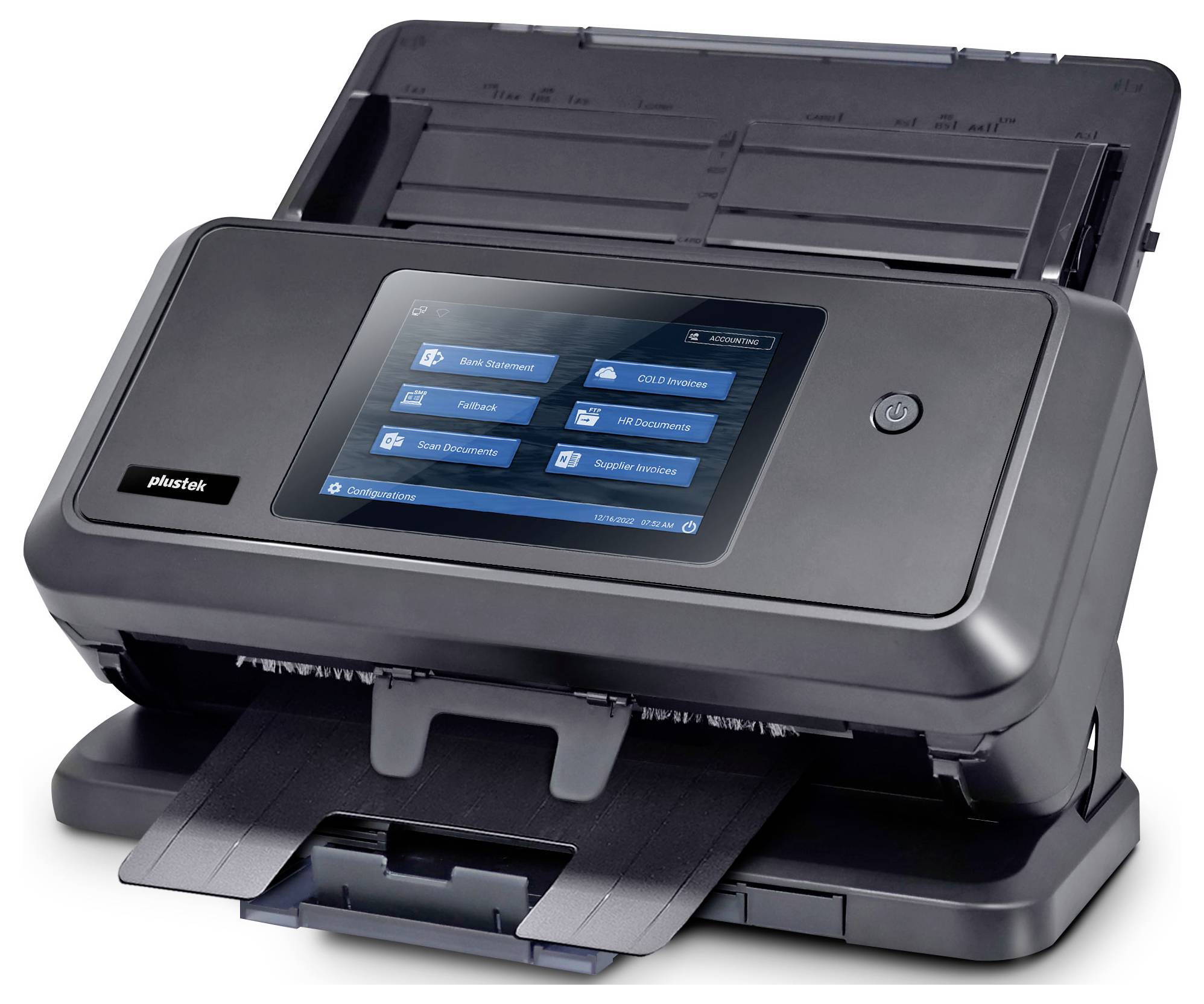

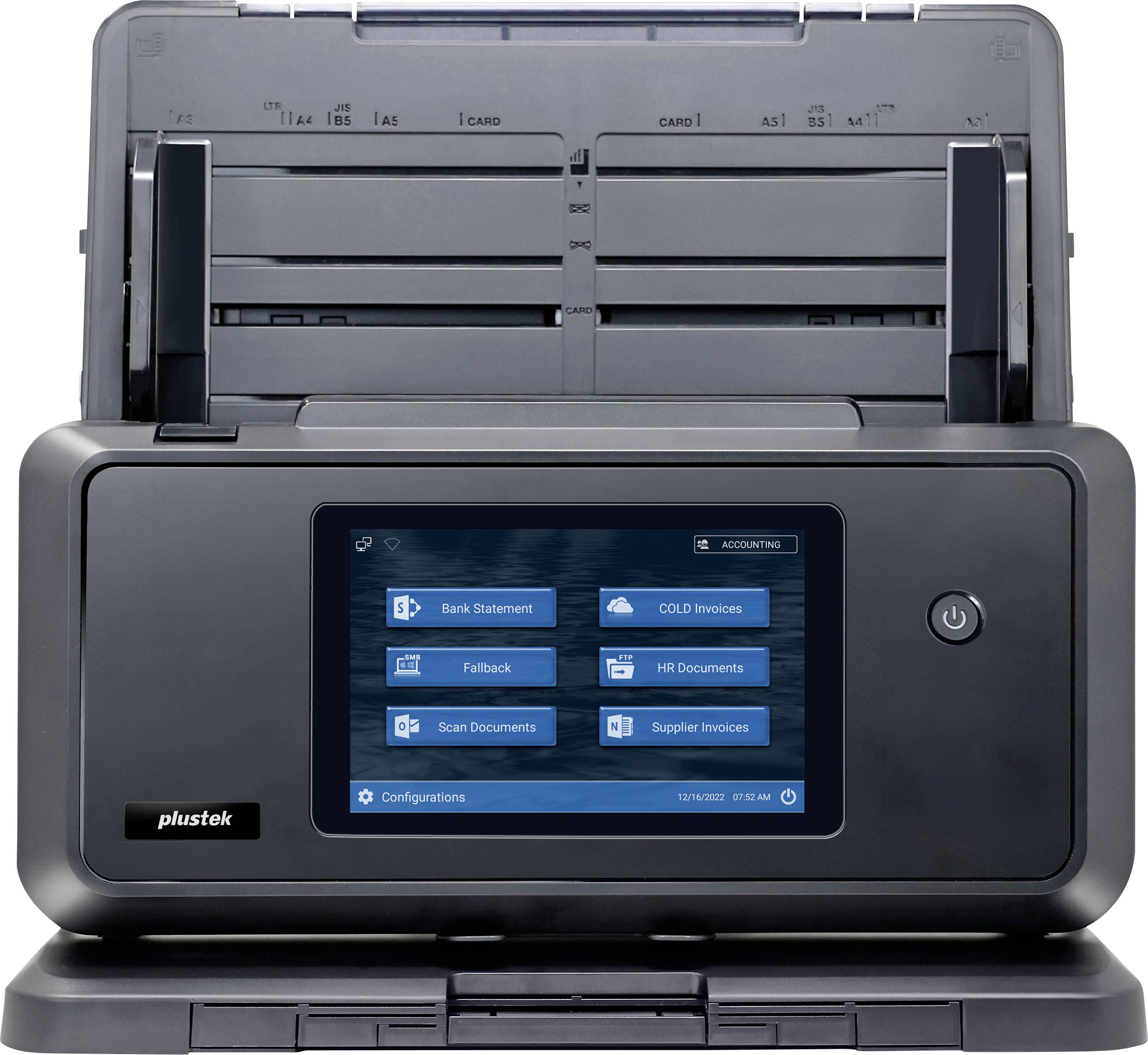

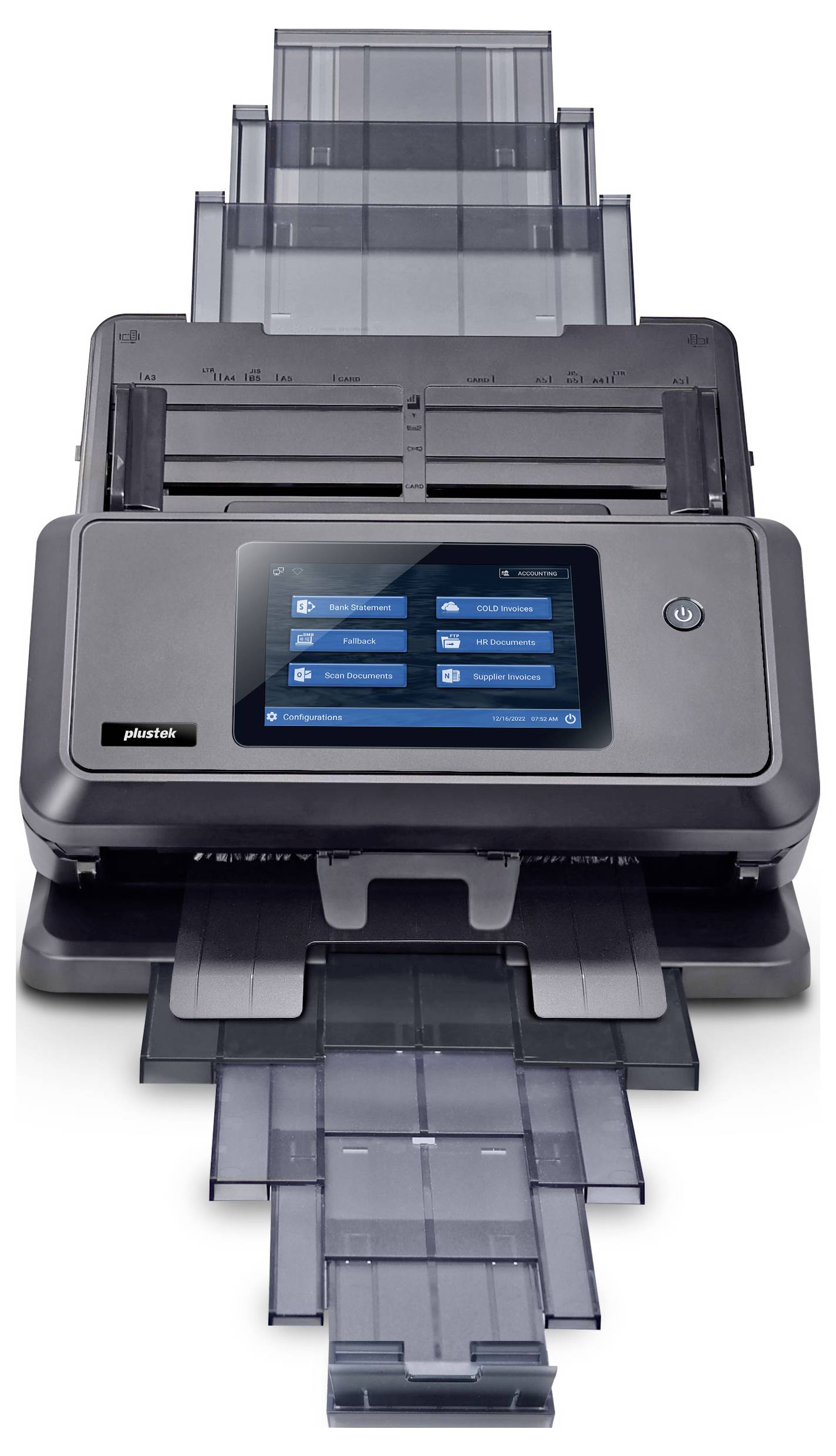

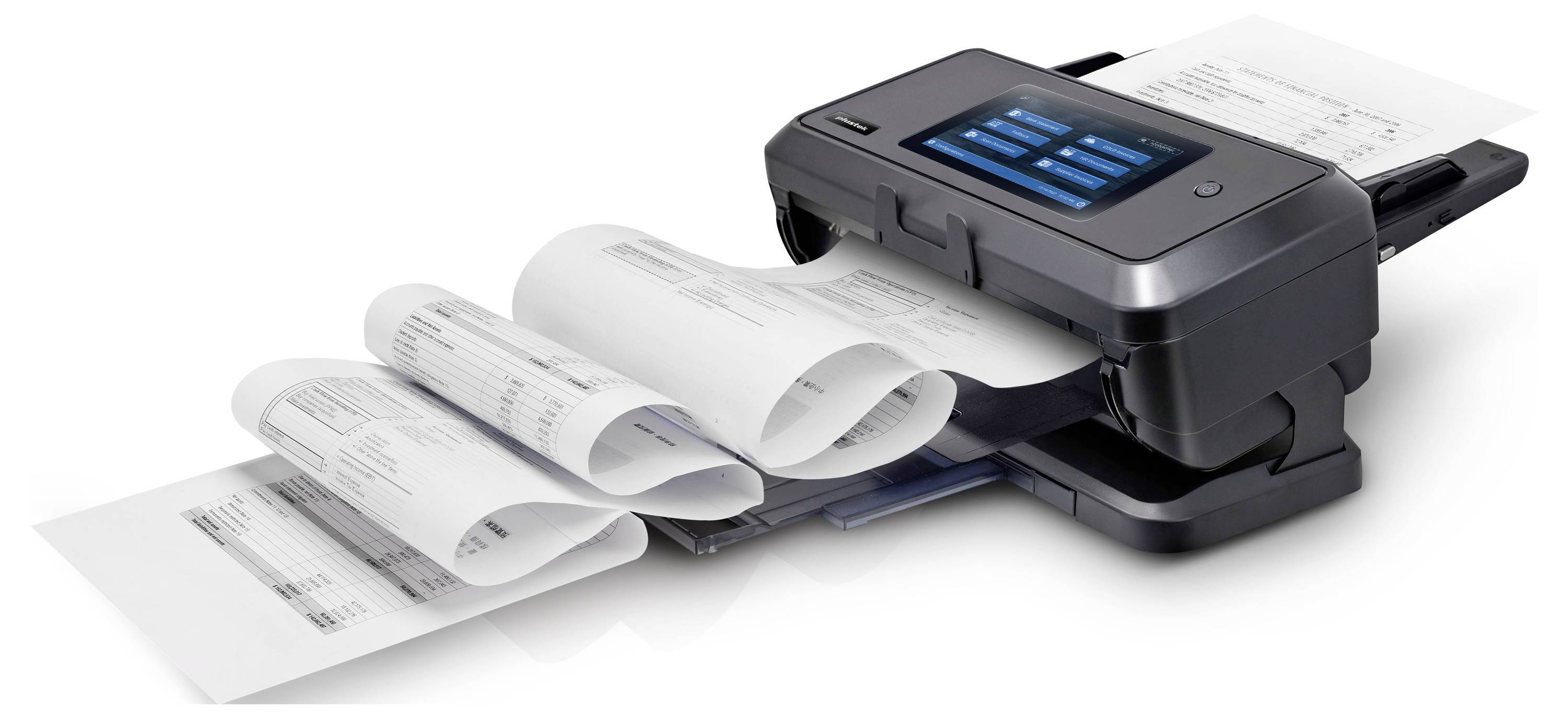

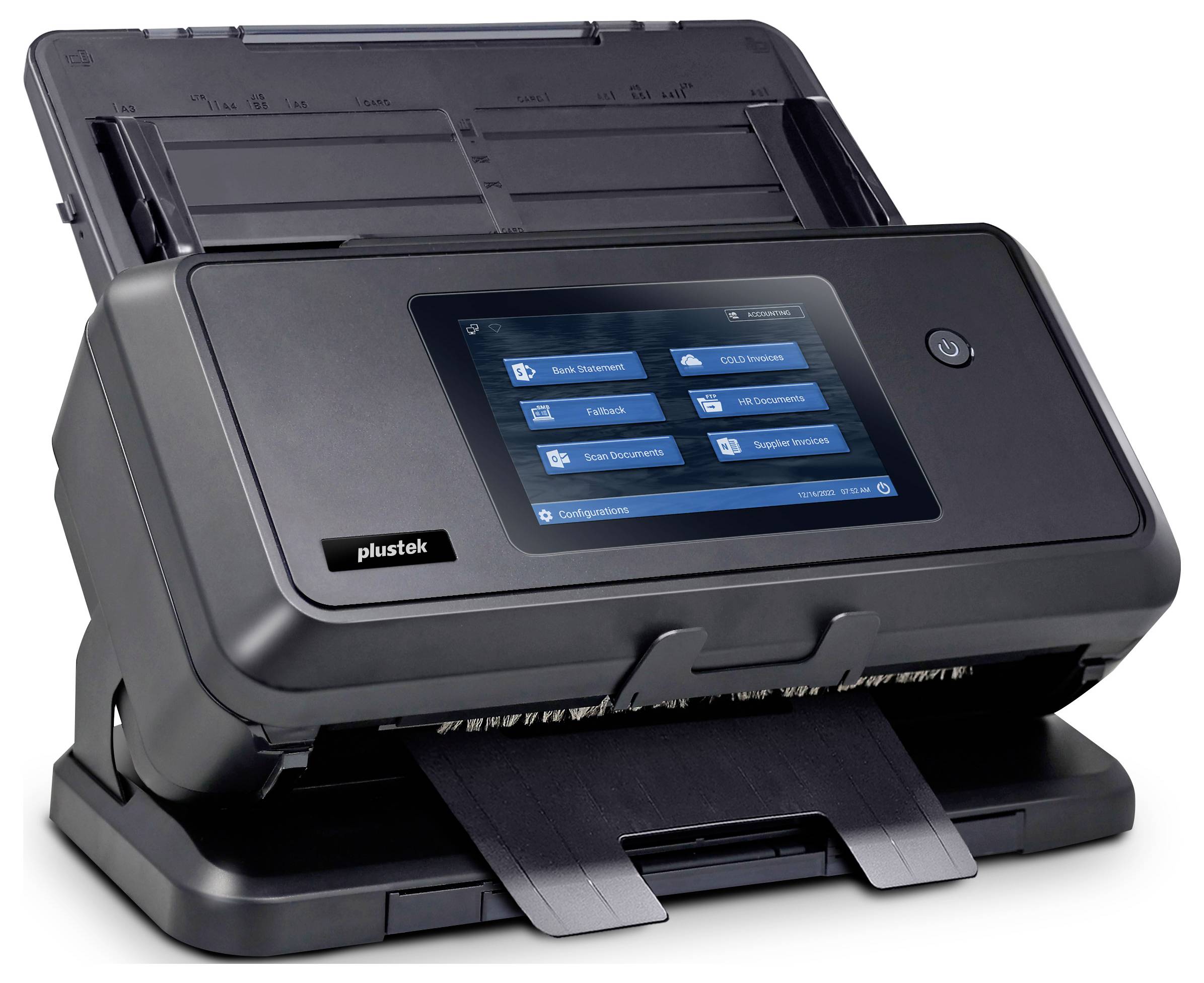

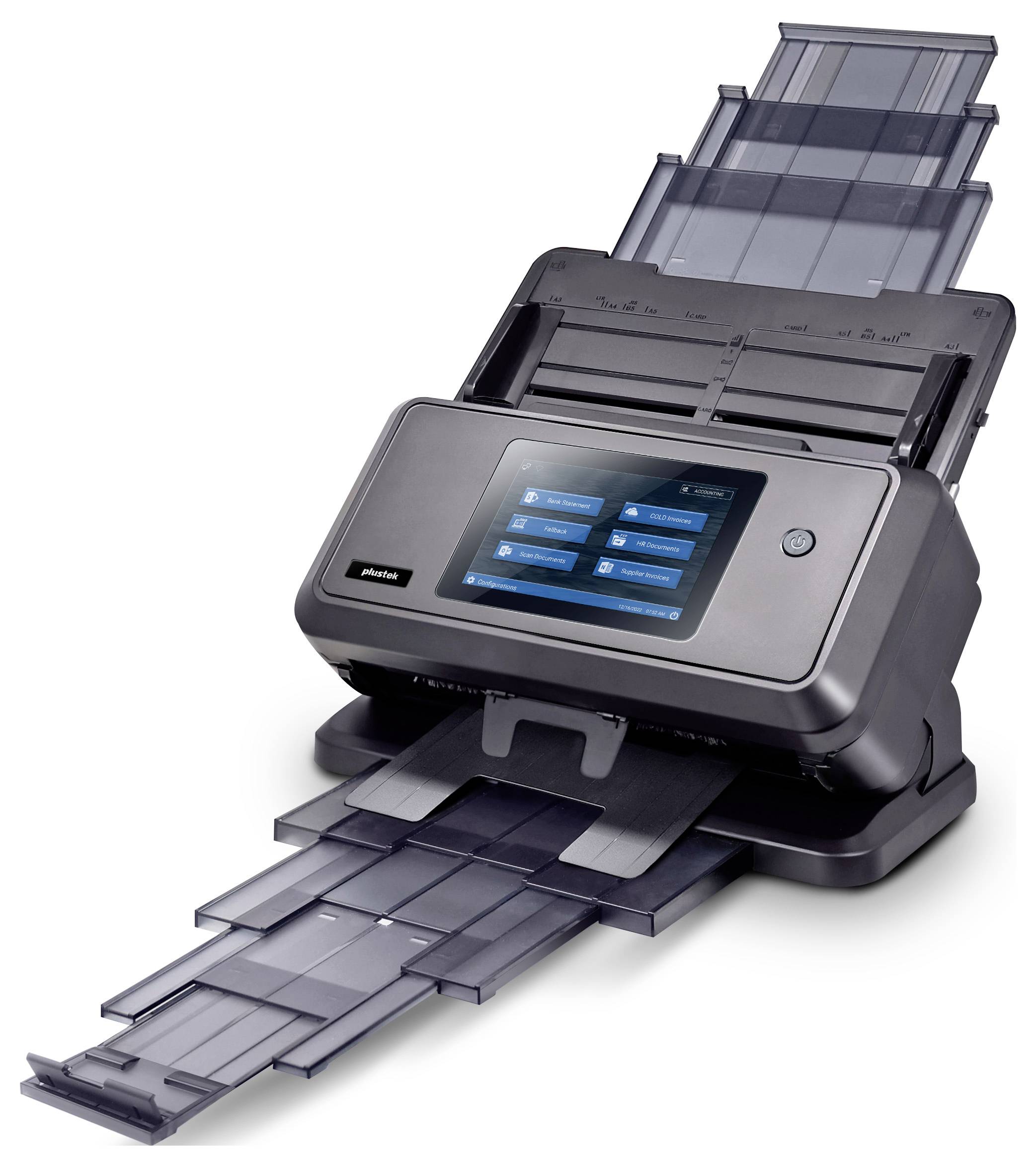

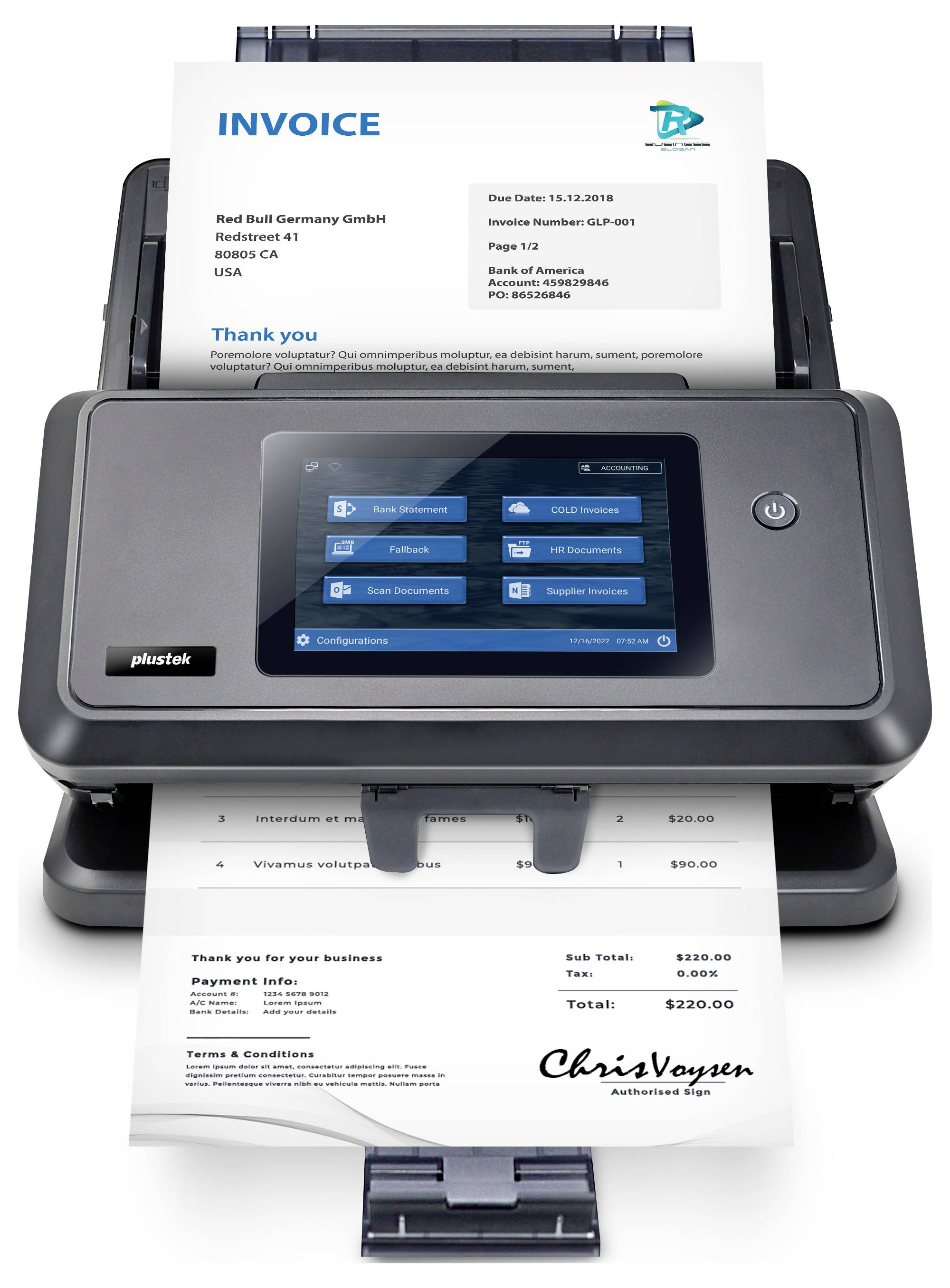

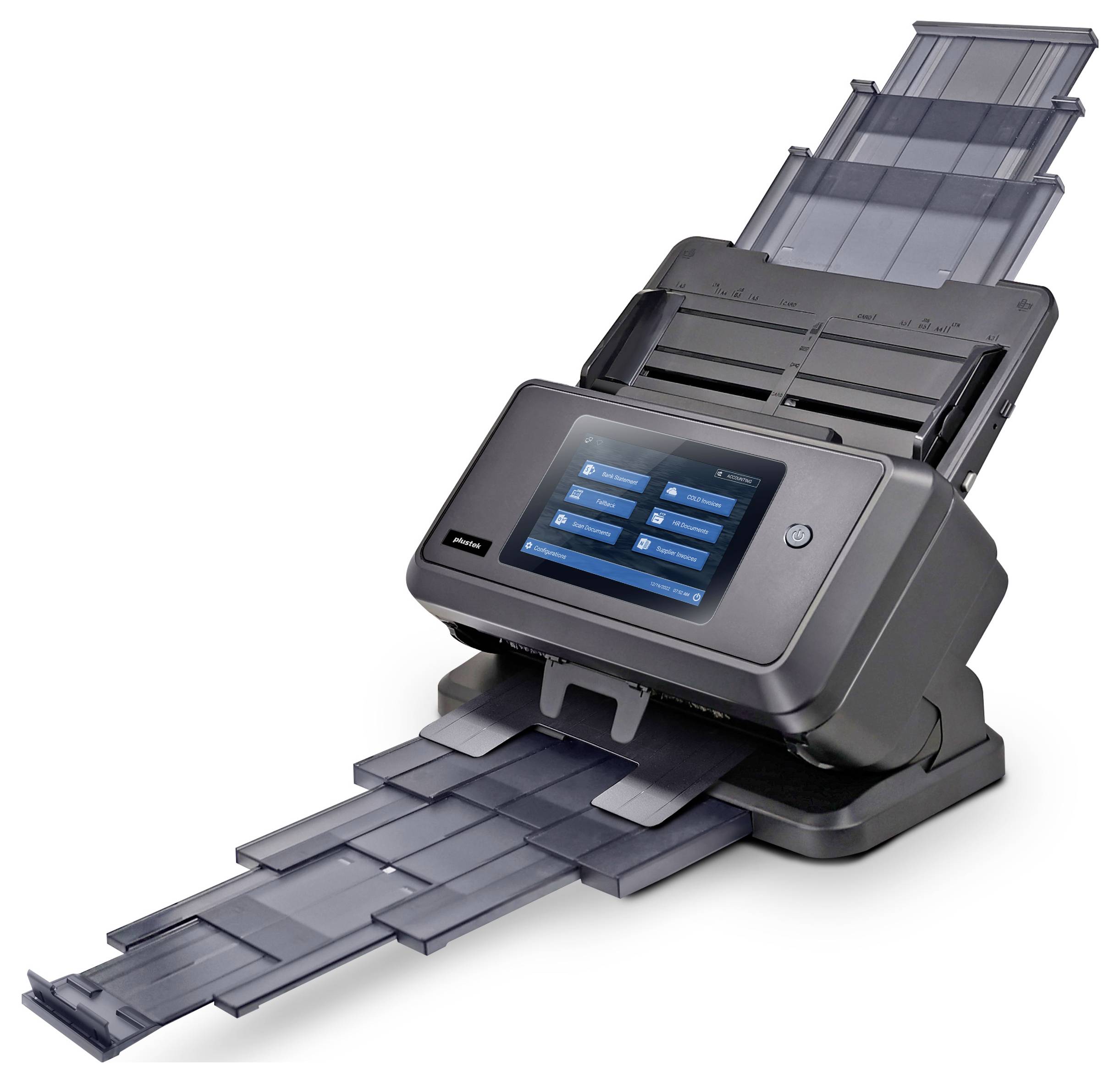

Plustek eScan A650 Pro Duplex document scanner A3 600 x 600 dpi USB, RJ45
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,331.93 / piece)
€ 1,331.93
plus VAT.
Highlights & Details
ScanA650 ProAll-in-one network scanner with built-in OCR for easy large format scanning

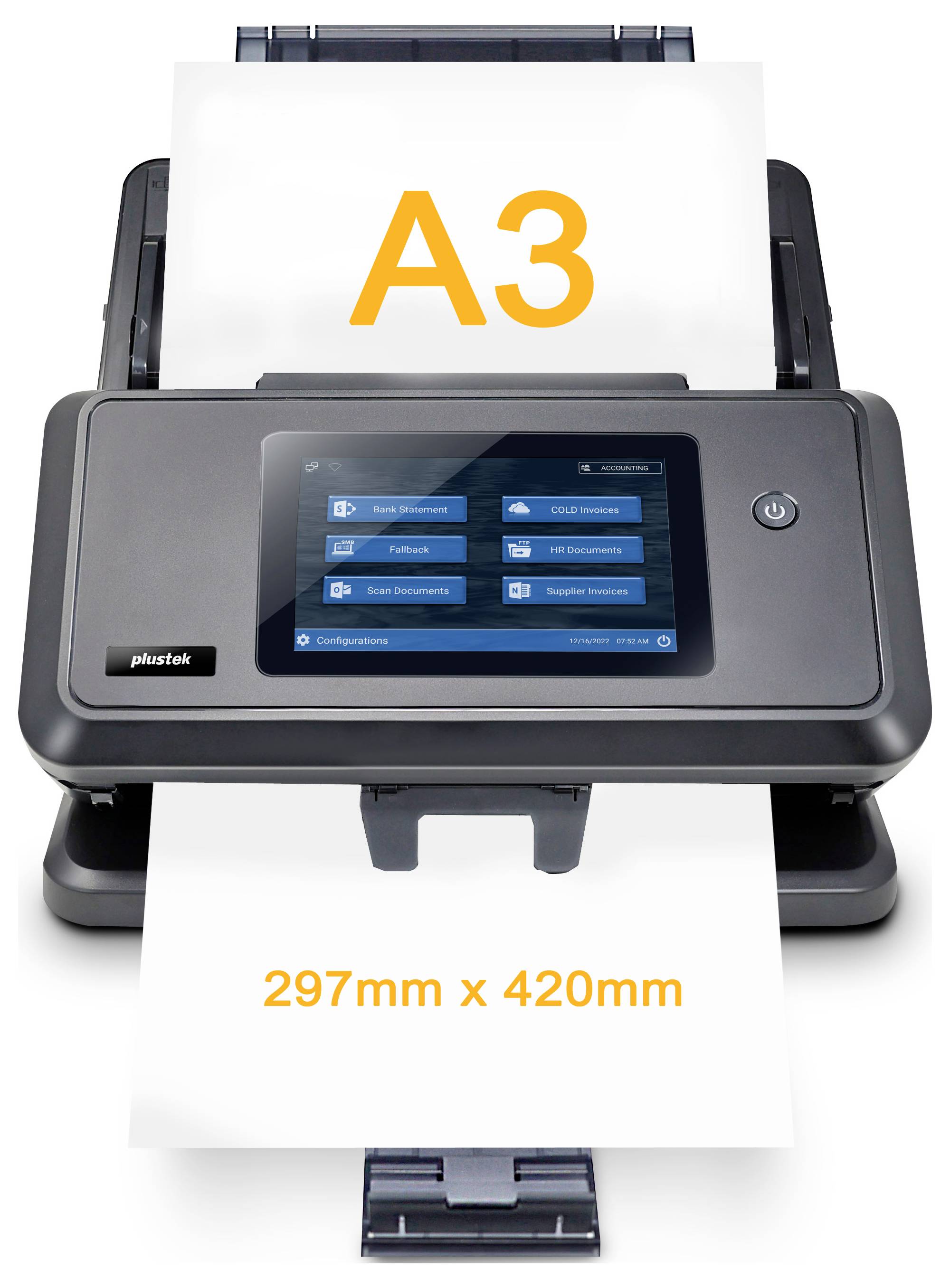

- Integrated OCR technology, large format scanning up to A3 (29.7 x 42 cm), seamless network & cloud connectivity
Technical specifications
- Image sensor CIS x 2 (duplex scanner)
- LED bulb
- Optical resolution 600 dpi
- Hardware resolution 600 x 600 dpi
- Colour: 48-bit input, 24-bit output
- Grayscale: 16-bit input, 8-bit output
- Black & White 1-bit
- ADF capacity 1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 lbs), Max. Thickness less than 10 mm (0.4")
- 2. 50 sheets (A3, 70 g/㎡ or 18 lbs)
- 3. 20 sheets (business card)
- 4. Plastic cards (load landscape format), Max. Thickness under 1.2 mm and embossed cards can be scanned.
- Note: The maximum ADF capacity varies depending on the paper weight.
- Scanning speed (ADF) 60 ppm/ 120 ipm (color, 300 & 200 dpi, A4 landscape format)
- 45 ppm/ 90 ipm (color, 300 & 200 dpi, A4 portrait)
- 35 ppm/ 70 ipm (color, 300 & 200 dpi, A3)
- Note: Scan results and speeds may vary depending on CPU and available memory.
- Scanning range (W x L) Maximum: 304.8 x 431.8 mm (12" x 17")
- Minimum: 13.2 x 13.2 mm (0.52” x 0.52”)
- Long paper: 304.8 x 5080 mm (12” x 200”)
- Supported paper size (W x L) Maximum: 304.8 x 431.8 mm (12" x 17")
- Minimum: 50.8 x 63.5 mm (2” x 2.5”)
- Connection USB 2.0 x 2, USB 2.0 (host) x 1, RJ45 (network connection) x 1
- Grammage (paper weight) 40 to 220 g/m²
- Multiple feed detection With ultrasonic technology
- Daily volume (pages) 18.000
- Service life of the separation roll up to 300,000 scans
- Service life of the selection roll up to 300,000 scans
- Service life of the friction roller up to 100,000 scans
- Function keys Power
- Power supply 24 Vdc/ 2.7 A.
- Network functions Scan to USB
- Scan to FTP/SFTP/FTPS
- Scan to network (SMB 2.0/3.0)
- Scan to SMTP
- Scan to SharePoint 2010/2013/2016/2019
- Scan to SharePoint Microsoft 365
- Scan to OneDrive for Business
- Scan to email
- Scan to OneNote Online
- Scan to Microsoft Exchange
- Scan to Azure file storage
- Net weight 6.8 Kgs (14.99 Lbs)
- Dimensions (W x D x H) 405 x 272 x 297 mm (15.95" x 10.7" x 11.69")

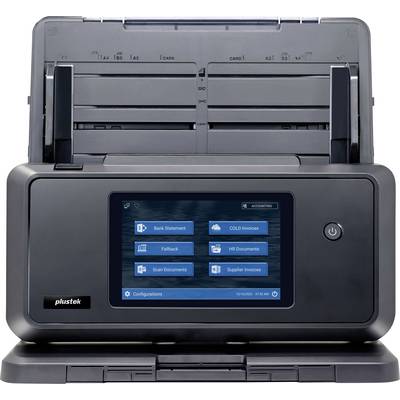

- Control panel Display: 7" 1280x800 pixel IPS-Multi-Touch-Panel with wide viewing angle
- Interface Network TWAIN-compliant
- TWAIN compatible
- Pre-installed OCR
- All document scanners [M] 3
- All network scanners [M] 1
- After scan speed: [F] 18
- By Main Purpose: [F] 1,2,3
- Filter by scan purpose: [F] 7
- Filter by other functions: [F] 6,8,3
- Filter by network type: [F] 3
- After connection: [F] 2
- By ADF Capacity: [F] 3
- By Scanner Type: [F] 3.4
- Scanning speed: [S] 60 ppm 120 ipm
- Max. Scanning range: [S] 304.8x5080 mm (12"x200")
- ADF capacity: [S] 100 sheets
- Daily scanning: [S] 18.000
- Link [C] products/network scanners/eScan-A650-pro/
- Product type
Duplex document scanner
- Scan function
Documents
Plastic cards
- Optical resolution
600 x 600 dpi
- Scan area width (min.)
304.8 mm
- Scan area (max.)
431.8 mm
- Paper size (max.)
A3
- Max. grammage
220 g/m²
- Sensor type
CIS
- Interfaces
USB
RJ45
- Duplex unit
Yes
- Width
405 mm
- Height
297 mm
- Depth
272 mm
- Dim
(W x H x D) 405 x 297 x 272 mm
- Weight
6.8 kg
- Factory colour
Multicolour
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3638615 Plustek eScan A650 Pro Duplex document scanner A3 600 x 600 dpi USB, RJ45
User & Safety Instructions
User & Safety Instructions 3638615 Plustek eScan A650 Pro Duplex document scanner A3 600 x 600 dpi USB, RJ45
Description
The eScan A650 Pro is a standalone network scanner that digitizes and forwards data
Documents simplified – completely without PC. Thanks to direct integration of Microsoft 365 and SharePoint
Users check scans in advance via the 7-inch touch display and upload directly to their cloud accounts. Fennel Systems GmbH is an internationally positioned group of companies with over 50 subsidiaries and sales offices worldwide.
Integrated image optimization automatically provides optimum scanning quality, resulting in manual editing
is not applicable. Multiple user accounts can be stored securely on the device without additional software or
Server connection. The eScan A650 Pro can be used for large format plans in A3 format or standard business documents
Streamlines workflows through efficient document management.
This text is machine translated.
Documents simplified – completely without PC. Thanks to direct integration of Microsoft 365 and SharePoint
Users check scans in advance via the 7-inch touch display and upload directly to their cloud accounts. Fennel Systems GmbH is an internationally positioned group of companies with over 50 subsidiaries and sales offices worldwide.
Integrated image optimization automatically provides optimum scanning quality, resulting in manual editing
is not applicable. Multiple user accounts can be stored securely on the device without additional software or
Server connection. The eScan A650 Pro can be used for large format plans in A3 format or standard business documents
Streamlines workflows through efficient document management.
This text is machine translated.
Scope of delivery
- Scanners
- Power supply unit
Hints
Scan speed (if stated) refers to A4-sized documents.
