Plustek SmartOffice S60 Document scanner A4 600 x 600 dpi 10 pages/min USB C® (USB 2.0)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,091.60 / piece)
€ 1,091.60
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Versatile and very compact A3 document scanner
- Fast duplex scanning of up to 64 pages per minute/128 images per minute (A4 landscape format)
- Processing large quantities of documents – with a capacity of the automatic document feeder (ADF) of up to 50 pages in A3 or 100 pages in A4 format
- Reliable quality - improved functions including selection and separation roller, paper stopper, paper weight, programmable jobs and a daily peak load of up to 18,000 sheets
- Compatible with software and document management systems – built-in TWAIN drivers for easy integration with existing applications
- High performance and productivity – automatic rotation, automatic cutting, automatic straight-forward, blank-page removal, and "Cancel" button to protect the paper
- Scan-to-FTP function – easy sending of data to your storage destinations thanks to the user-friendly software Plustek DocAction
- Create searchable PDFs – scanned content is instantly accessible and editable with Plustek OCR (supported by ABBYY® FineReader®)
- Versatile paper processing – visiting cards, ID cards, individual sheets, extra long papers up to 5080 mm and documents up to 304.8 x 431.8 mm
Technical specifications
- Power supply via USB (no power supply required)
- Scanning method
- Colour 48-bit input, 24-bit output
- Grayscale: 16-bit input, 8-bit output
- Black & White 1-bit
- ADF capacity
- 1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 lbs), Max. Thickness less than 10 mm (0.4")
- 2. 50 sheets (A3, 70 g/㎡ or 18 lbs)
- 3. 20 sheets (business card)
- 4. Plastic cards (load landscape format), Max. Thickness under 1.2 mm and embossed cards can be scanned.
- Note: The maximum ADF capacity varies depending on the paper weight.
- Scanning speed (ADF)
- 64 ppm/ 128 ipm (color, 300 dpi, A4 landscape format)
- 64 ppm/ 128 ipm (color, 200 dpi, A4 landscape format)
- 48 ppm/ 96 ipm (color, 300 dpi, A4 portrait)
- 48 ppm/ 96 ipm (color, 200 dpi, A4 portrait)
- 36 ppm/ 72 ipm (color, 300 dpi, A3)
- 36 ppm/ 72 ipm (color, 200 dpi, A3)
- Note: Scan results and speeds may vary depending on CPU and available memory.
- Scan range (W x L)
- Maximum 304.8 x 431.8 mm
- Minimum 13.2 x 13.2 mm
- Long paper 304.8 x 5,080 mm
- Supported paper size (W x L)
- Maximum 304.8 x 431.8 mm
- Minimum 50.8 x 63.5 mm
- Function buttons
- 5 keys: Power, Up, Down, Cancel, Scan
- 9 function buttons. All adaptable.
- Product type
Document scanner
- Scan function
Documents
Calling cards
Plastic cards
- Optical resolution
600 x 600 dpi
- Scanning speed
10 pages/min
- Scan area width (min.)
216 mm
- Scan area (max.)
356 mm
- Paper size (max.)
A4
- Max. grammage
120 g/m²
- Sensor type
CIS
- Interfaces
USB C® (USB 2.0)
- Duplex unit
No
- Traversing light unit
No
- Feeder
Yes
- Flatbed unit
No
- Width
174.5 mm
- Height
41 mm
- Depth
60.5 mm
- Dim
(W x H x D) 174.5 x 41 x 60.5 mm
- Weight
190 g
- Factory colour
Black
Silver
Documents & Downloads
Datasheet
Datasheet 3819922 Plustek SmartOffice S60 Document scanner A4 600 x 600 dpi 10 pages/min USB C® (USB 2.0)
User & Safety Instructions
User & Safety Instructions 3819922 Plustek SmartOffice S60 Document scanner A4 600 x 600 dpi 10 pages/min USB C® (USB 2.0)

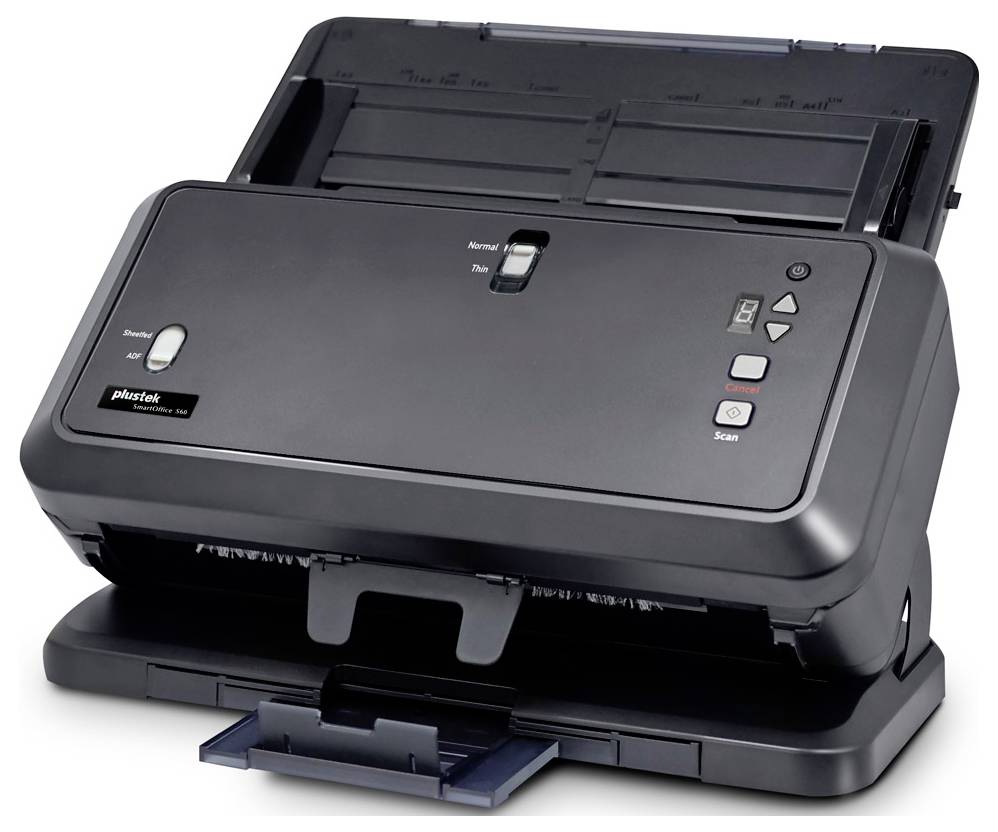

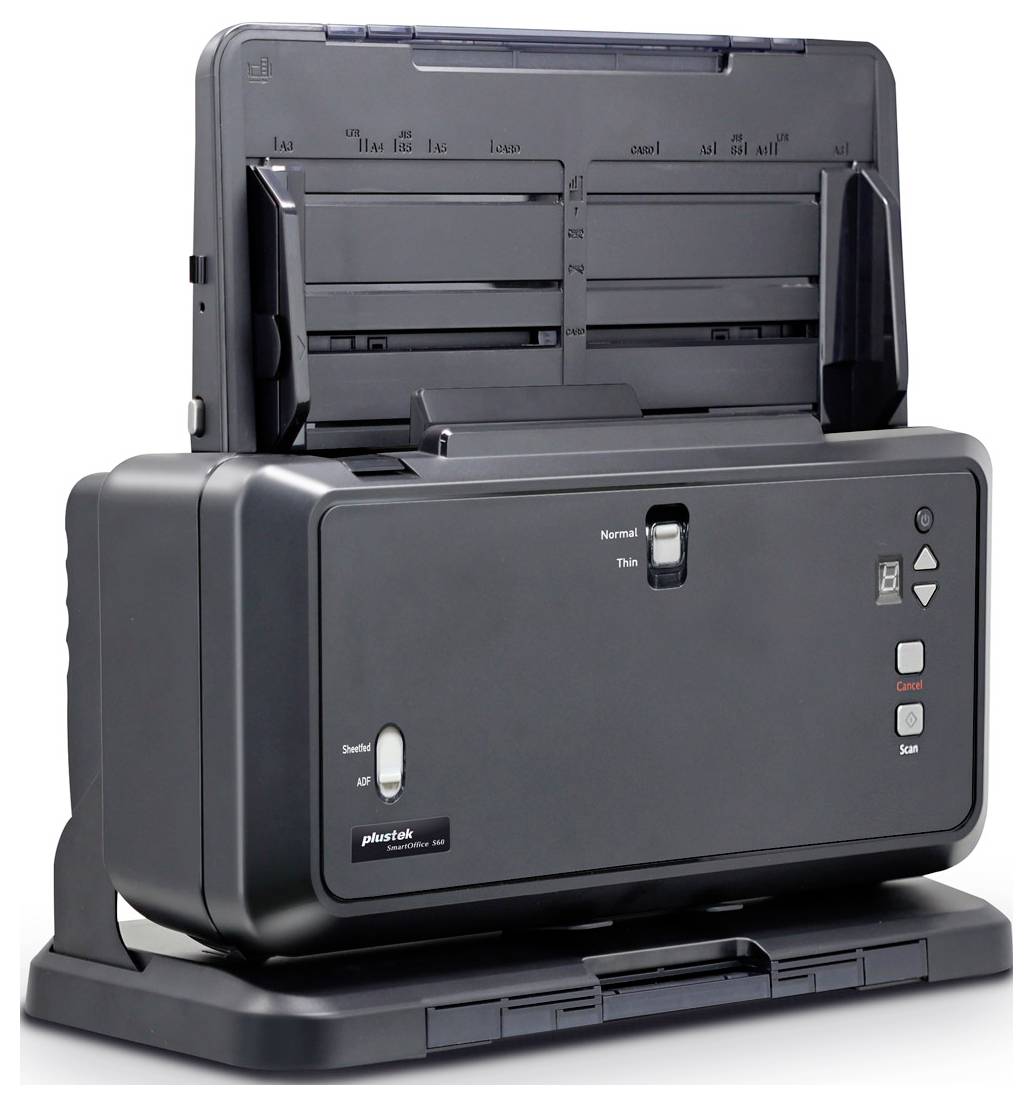

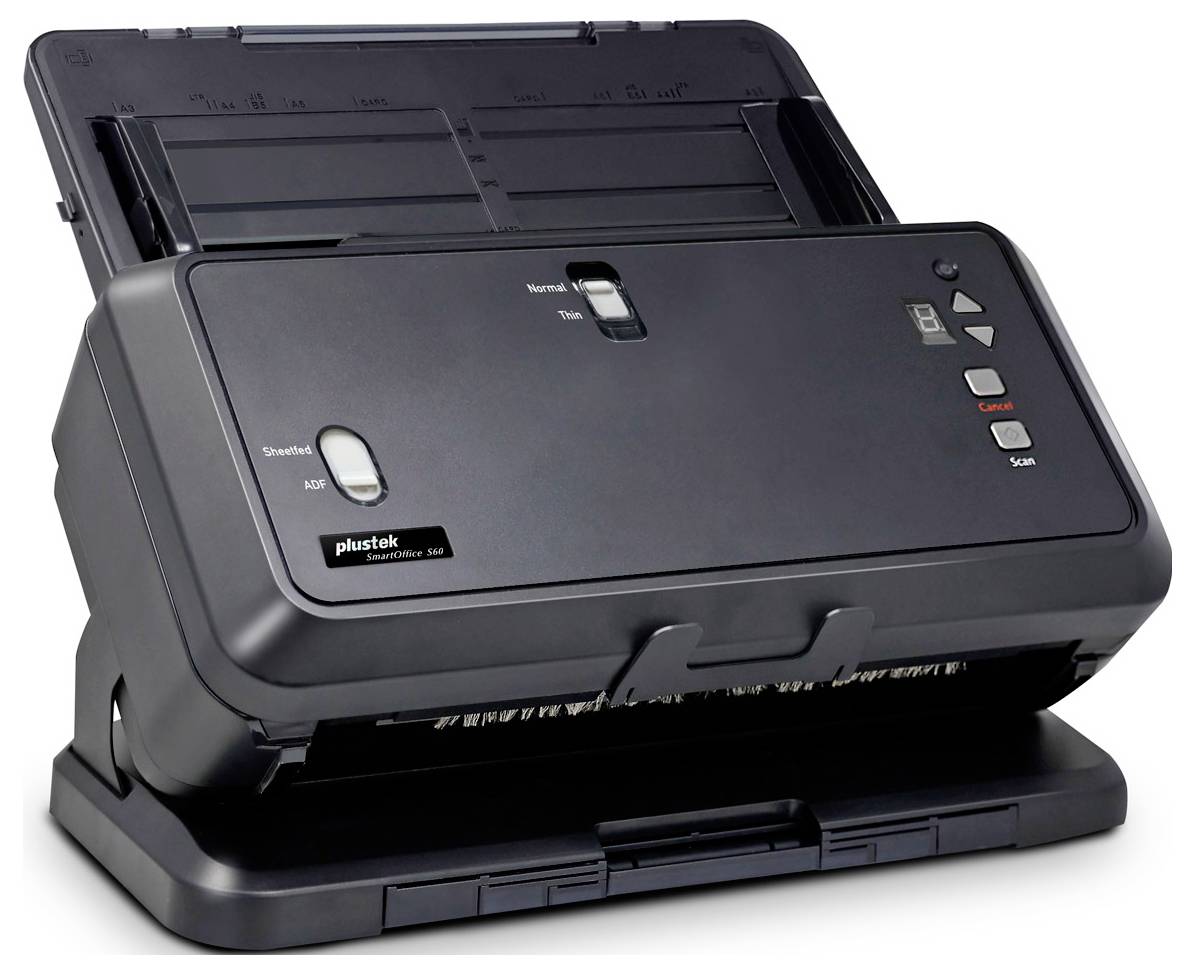

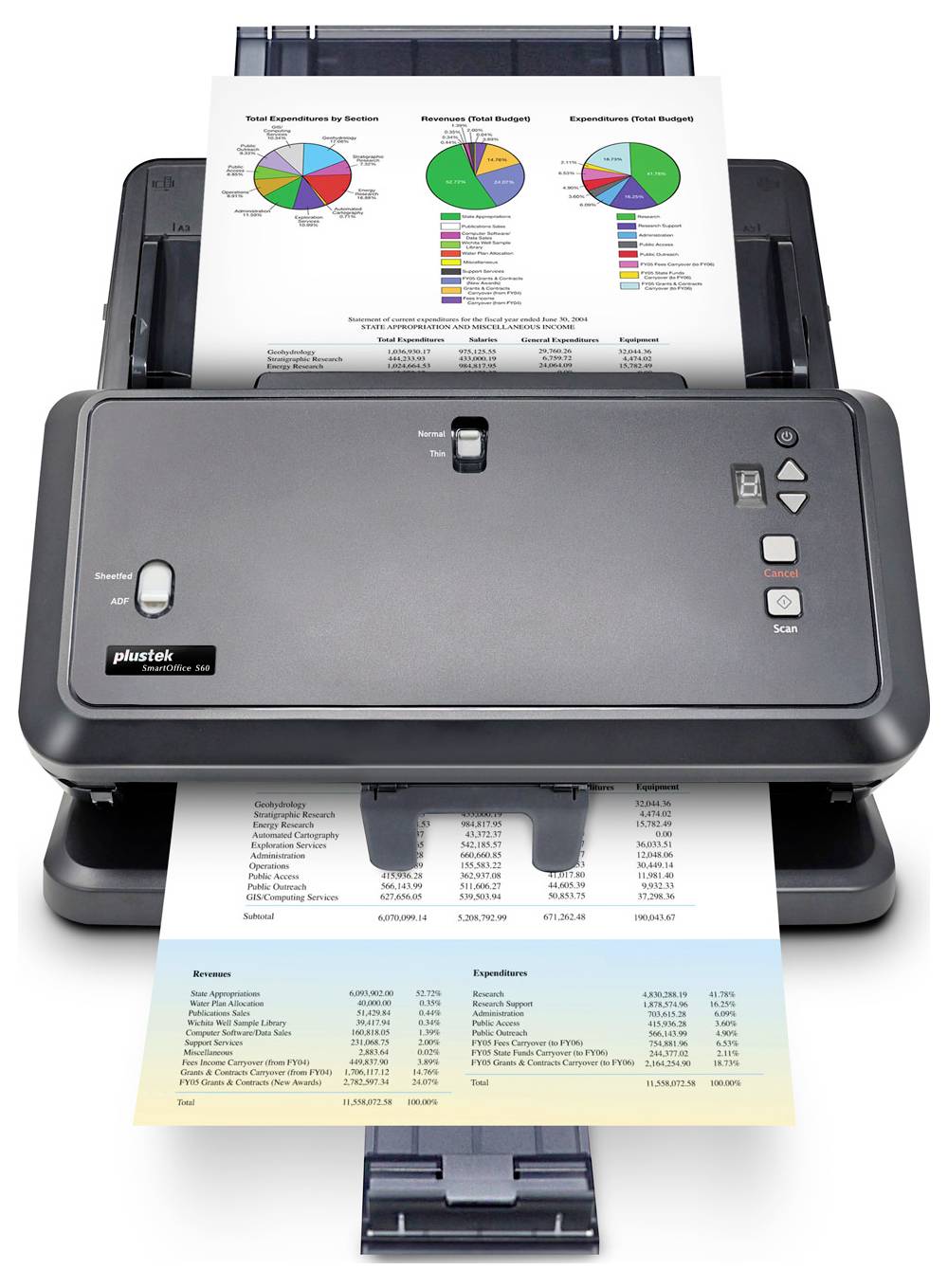

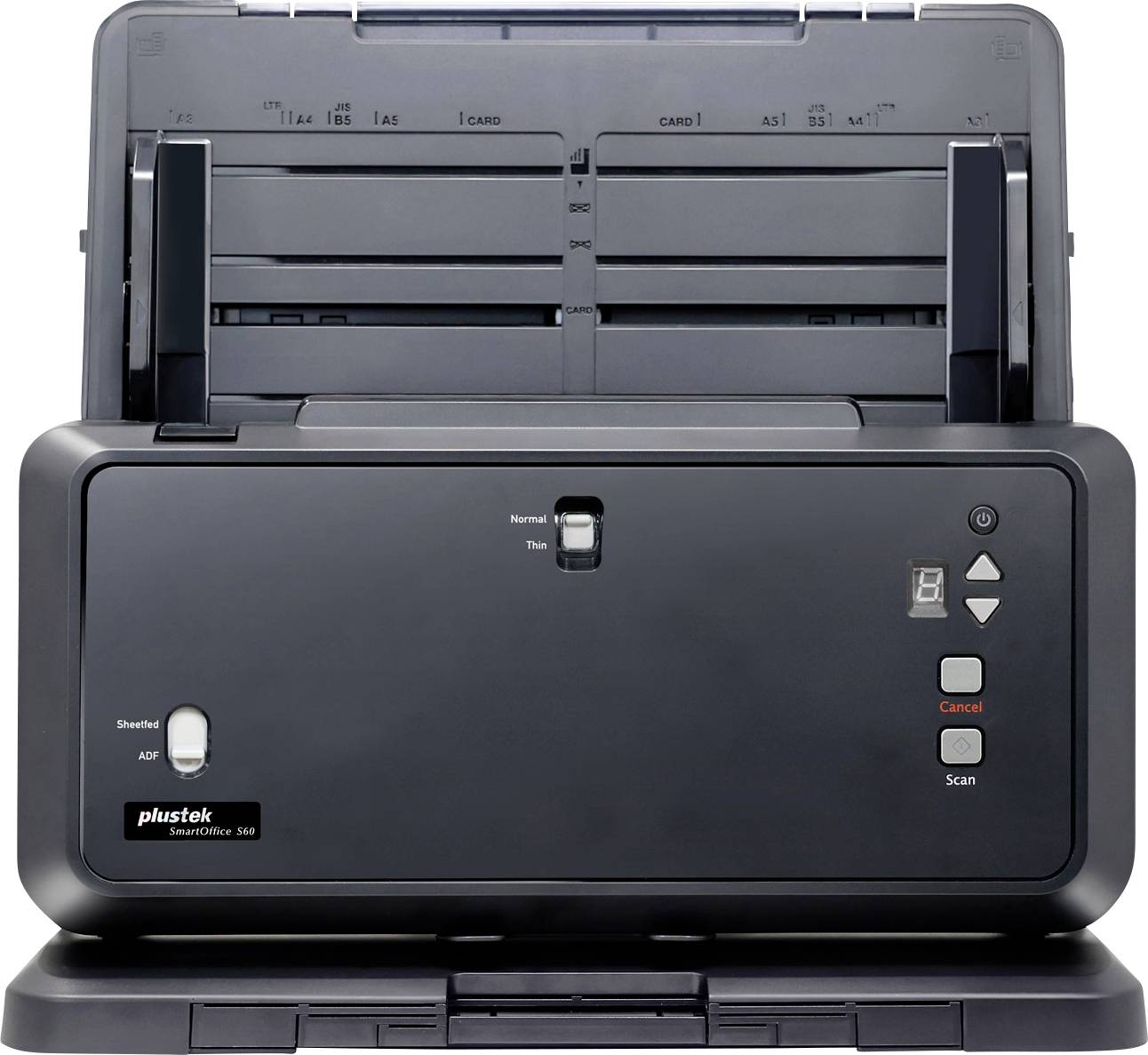

Description
The Plustek SmartOffice S60 A3 duplex document scanner increases productivity in working environments with Hohem scanning volumes. With high speeds of up to 64 pages/min. Or 128 pages/min. And a daily volume of up to 18,000 sheets, it combines performance and reliability with a slim, compact one
design. Switching between plain and thin paper allows you to scan a wide range of document types with different thicknesses, helping to avoid multiple feed errors. The supplied TWAIN driver ensures seamless integration with standard applications and software systems. Thanks to his
Design, the scanner can be kept extremely space-saving after use.
This text is machine translated.
design. Switching between plain and thin paper allows you to scan a wide range of document types with different thicknesses, helping to avoid multiple feed errors. The supplied TWAIN driver ensures seamless integration with standard applications and software systems. Thanks to his
Design, the scanner can be kept extremely space-saving after use.
This text is machine translated.
Features
- Picture sensor CIS x 2
- Light type: LED
- Optical resolution 600 dpi
- Interpolated resolution: 1,200 dpi
- 600 x 600 dpi hardware resolution
- Grammage (paper weight) 40 to 220 g/m²
- Multiple feed detection With ultrasonic technology
- Daily volume (pages) 18,000
- Service life of the separation roll up to 300,000 scans
- Service life of the selection roll up to 300,000 scans
- Service life of the friction roller up to 100,000 scans
- Power supply 24 Vdc/ 1.25 A.
- Connection USB 3.2 Gen 1 type B x 1
- Net weight 6.8 kg
- Dimension (W x D x H) 405 x 272 x 297 mm
- Interface TWAIN compatible
- Operating system Windows 7 / 8 / 10 / 11
Scope of delivery
- Scanners
- USB cable
- Included software Plustek DocAction
- Plustek DocTWAIN
Hints
Scan speed (if stated) refers to A4-sized documents.
System requirements
- Windows 7 / 8 / 10 / 11
LINUX for System Integrators. Please contact your local sales department: sales@plustek.com (SDK only) - System requirements
3.2 GHz CPU or higher[1]
[1]Windows recommended: 3.2 GHz Intel® Core™ i7 processor with 4 CPU cores or higher
At least 4 GB RAM (8 GB or more recommended)
6 GB hard disk storage for the program installation
USB-connection USB 3.0-connection (support for USB 2.0/1.1)
Display dimensions of 1024 x 768 or higher
