Polaroid LS1024EU Charge controller PWM 12 V, 24 V 10 A
EAN:
Part number:
Item no:
Number
Total (€ 35.29 / piece)
€ 35.29
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Solar charge controller LS1024
- 3 charging levels
- USB output
- Alligator clip output
Technical specifications
- USB charging current 1200 mA
- Open circuit voltage max. 50 V.
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Temperature range
-35 °C Up to +55 °C
- Charging current (max.)
10 A
- Own power consumption
5 mA
- Matching rechargeable battery
SLA
Lead-acid
Lead acid membrane
- Control type
PWM
- Dim
(W x H x D) 120 x 67 x 22 mm
- Weight
100 g
- Width
120 mm
- Height
67 mm
- Depth
22 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2103150 Polaroid LS1024EU Charge controller PWM 12 V, 24 V 10 A
Description
Polaroid solar charge controller for solar panels.
The Polaroid Solar charge controller is a PWM device that uses the latest digital technology and impresses with its simple operation and control.
Charge and use your devices directly via the solar energy from your solar panel, such as Polaroid SP50 or SP100.

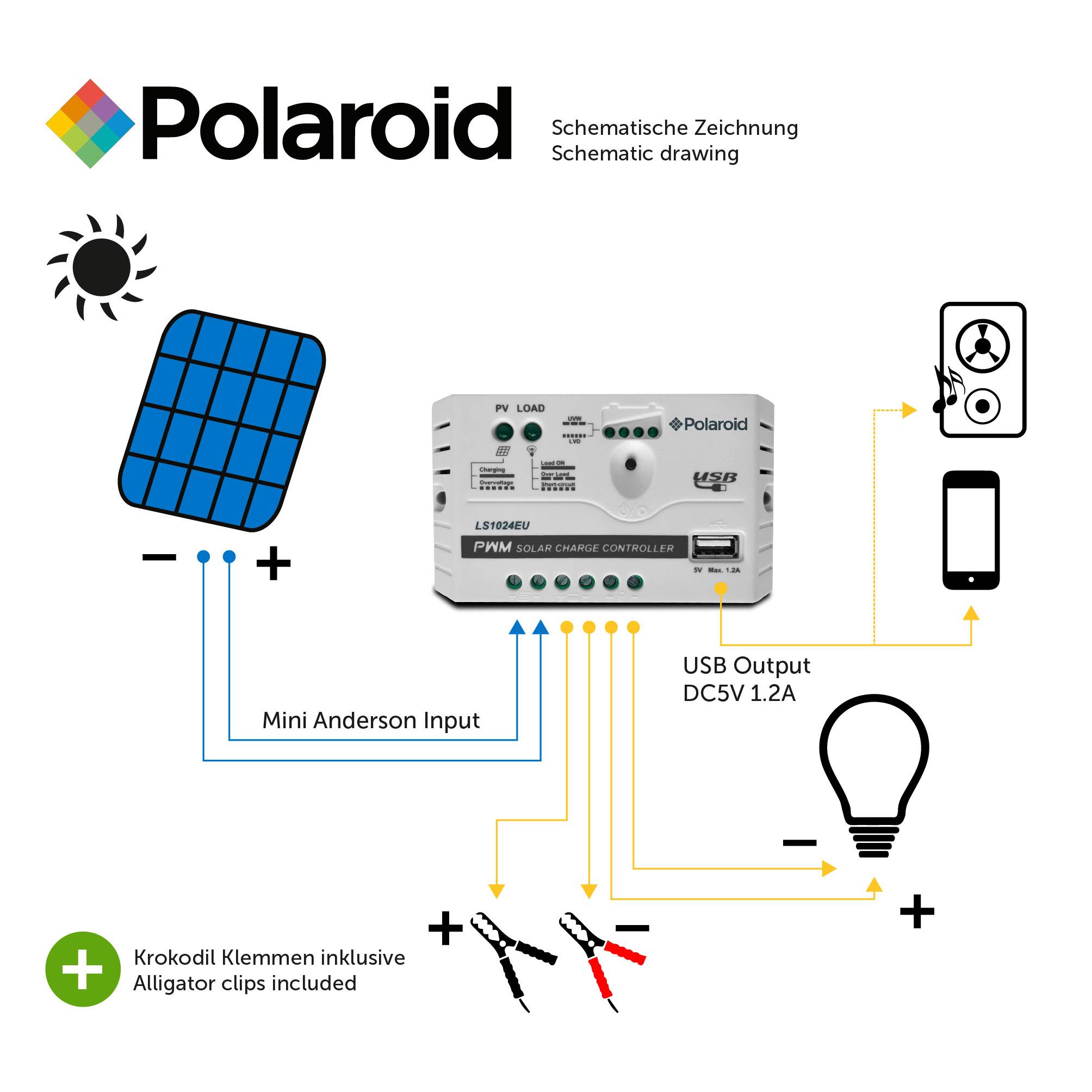

Smartphones, tablets, power banks, lamps and all other DC devices (5V) can be connected directly to the USB output of the charge controller. In addition, devices can also be connected and charged via the alligator clamps (e.g. lead-acid batteries).
This text is machine translated.
The Polaroid Solar charge controller is a PWM device that uses the latest digital technology and impresses with its simple operation and control.
Charge and use your devices directly via the solar energy from your solar panel, such as Polaroid SP50 or SP100.
Smartphones, tablets, power banks, lamps and all other DC devices (5V) can be connected directly to the USB output of the charge controller. In addition, devices can also be connected and charged via the alligator clamps (e.g. lead-acid batteries).
This text is machine translated.
Features
- 3 charging stages: Bul, Boost/Equalizer, Float
- Mini Anderson input
- USB output
- Alligator clip output
- LED display
- Overload protection.
- Circuit breaker
- Overvoltage protection
- Fixing eyelets Ø 4.5 mm
Scope of delivery
- LS1024
- Mini Anderson cable
- Alligator clips
- User manual.
