Name: Power off Grey 1-pin 6 mm² 20 A 1 maker Siemens 5TE8111
Brand: Siemens
SKU: 1795851

A Siemens 5TE8 protection switch in grey. It has two connections at the top and a large black switch button at the bottom.

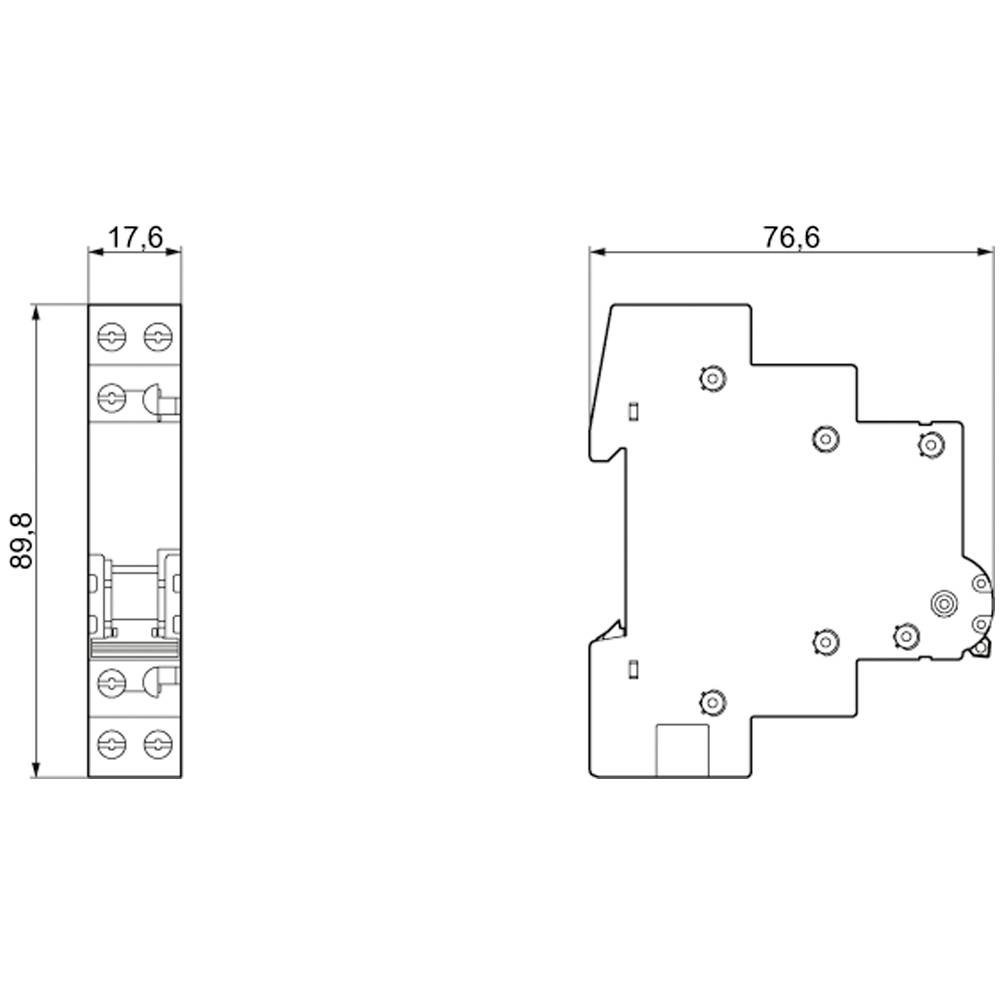

Technical drawing of a device with dimensions: Height 89.8 mm, Width 17.6 mm, Depth 76.6 mm. Shows connections and mounting points.

1/2

Image similar

Product type

Power off

Number of pins

Nominal current - rounded value

20 A

Contact type

1 maker

Operating voltage

230 V

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Cutout depth: 70 mm
Net weight: 57 g

Product type: Power off

Contact type: 1 maker

Operating voltage: 230 V

Factory colour: Grey

Cross section: 6 mm²

Number of pins: 1

Dim: (L x W x H) 70 x 76.6 x 90 mm

Nominal current: 20 A

Nominal current - rounded value: 20 A

No. of partitions: 1

Width: 76.6 mm

Height: 90 mm

Length: 70 mm

Depth: 17.6 mm

: AC

: Off switch

: FALSE

: 70 mm

: 20 A

: 230 V

: 1

: 0

: 0

: 1

: Other

: 10 kA

: 0.06 A

: 1

: Other

: Other

: Other

: 1

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1795851 Power off Grey 1-pin 6 mm² 20 A 1 maker Siemens 5TE8111

User & Safety Instructions

User & Safety Instructions 1795851 Power off Grey 1-pin 6 mm² 20 A 1 maker Siemens 5TE8111

Description

On-off switch 20A 1S switching devices for DIN rail mounting for controlling electrical systems. The switching devices for DIN rail mounting from Siemens as an important component of the SENTRON components for electrical installation are used in control cabinets and distributors for switching on, off and switching small loads. Whether by remote or manual switching, latching or momentary function, for infrastructure or industrial requirements - Siemens offers switching devices for all applications and every application area. Convenient mounting and connection technology, uniform accessories and a universal design - these are the characteristics of the device family. The switching devices from Siemens are characterized above all by: 1. Extensive applications for switching and buttons of small loads. 2. Uniform accessories in a wide variety are easy to mount and can be replaced at any time. 3. Space saving and simple rail mounting 4. Combination with remote switch possible 5. Reliable installation safety thanks to the standard grip and protection against accidental contact. 6. Optimal technology for your safety - only from Siemens.
