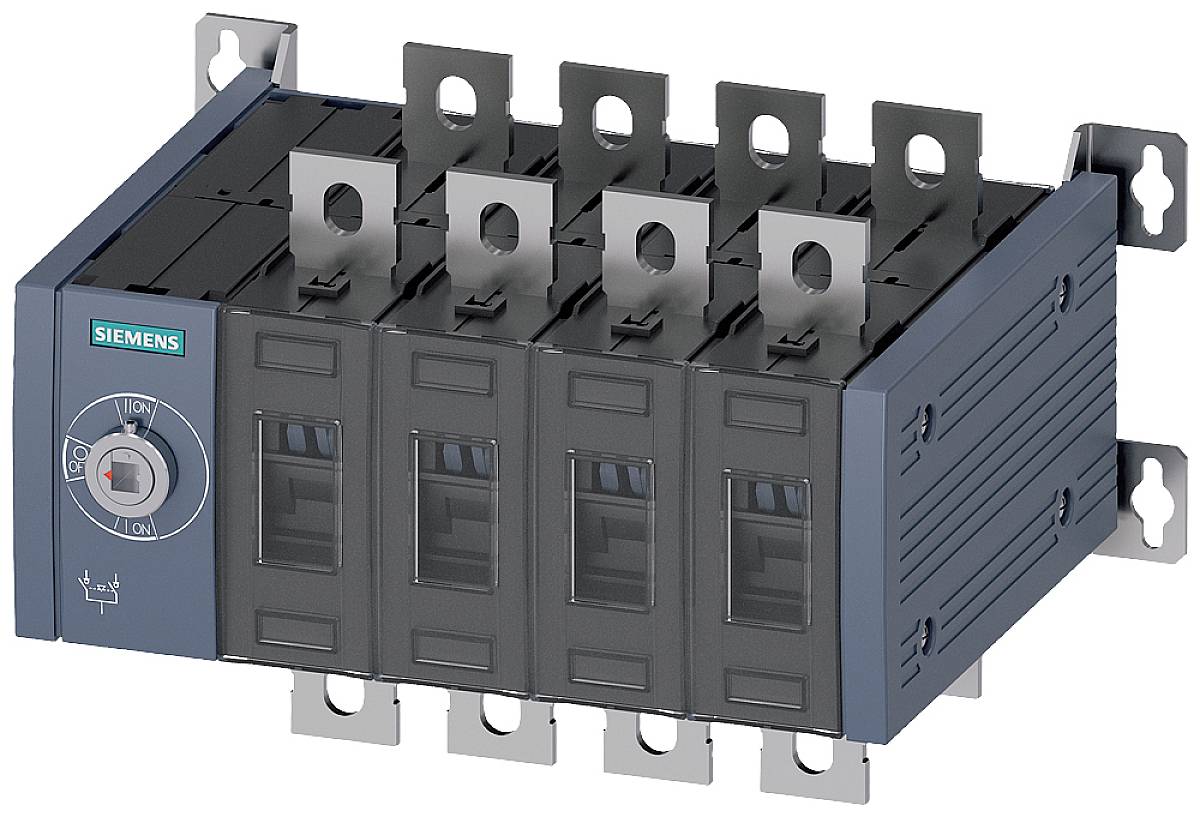

Power switch 4-pin 400 A 415 V AC Siemens 3KC04420PE000AA0
Product type
Power switch
Nominal voltage
415 V AC
Number of pins
4
Nominal current - rounded value
400 A
Operating voltage
415 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1,429.00 / piece)
€ 1,429.00
incl. VAT
14-day return policy included
Technical specifications
- Protection class: IP20
- Isolation voltage: 1000 V
- Ambient temperature: -25 °C to +70 °C
- Surge voltage resistance: 12 kV
- Mechanical life: 10000
- Power loss: 68 W
- Design of the electrical connection: rail connection
- Mounting type: screw fastening
- Product type
Power switch
- Operating voltage
415 V AC
- Nominal voltage
415 V AC
- Number of pins
4

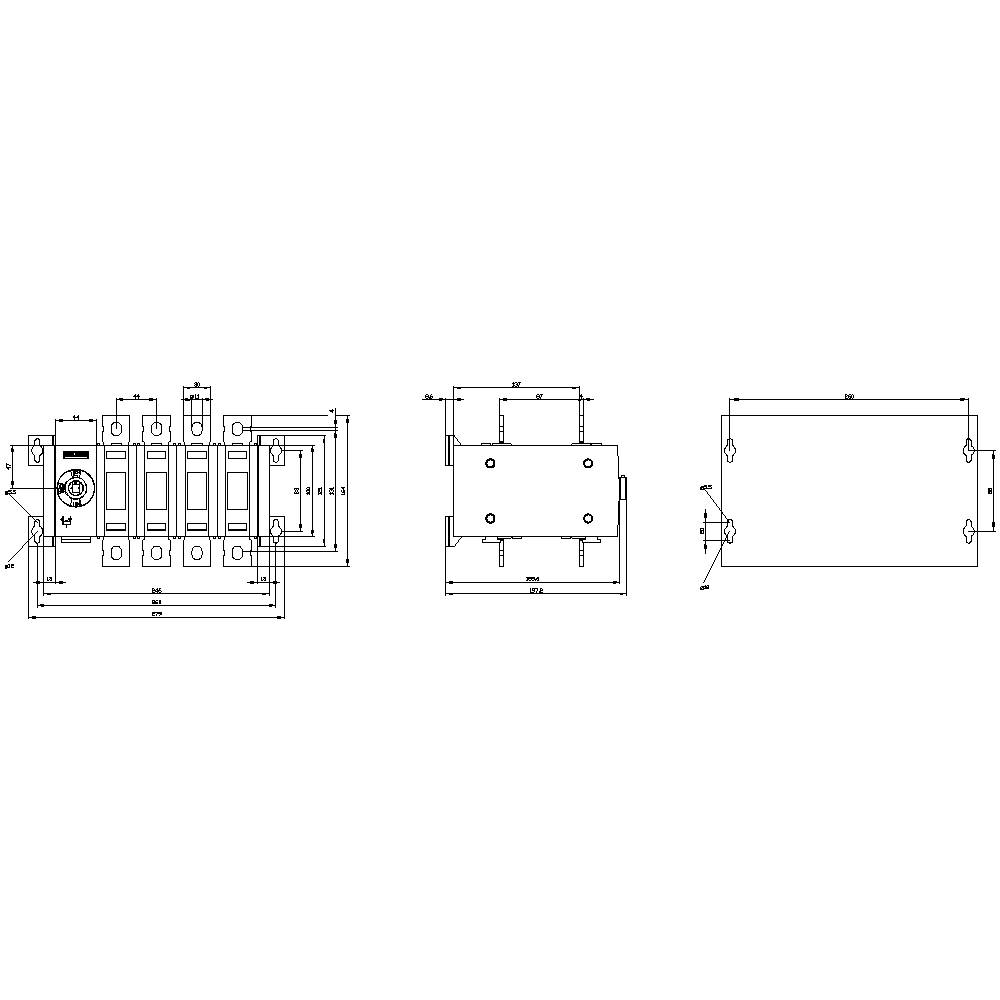

- Dim
(W x H x D) 279 x 164 x 197.2 mm
- Nominal current
400 A
- Nominal current - rounded value
400 A
- Type
Front wheel drive
- Width
279 mm
- Height
164 mm
- Depth
197.2 mm
12
12
400 A
4
IP00
0
FALSE
FALSE
Rail connection
TRUE
None
TRUE
TRUE
TRUE
220 kW
13 kA
Other
FALSE
FALSE
FALSE
FALSE
FALSE
415 V
FALSE
FALSE
Built-in device fixed built-in technique
400 A
400
Other
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1748433 Power switch 4-pin 400 A 415 V AC Siemens 3KC04420PE000AA0
User & Safety Instructions
User & Safety Instructions 1748433 Power switch 4-pin 400 A 415 V AC Siemens 3KC04420PE000AA0
Description
SENTRON 3KC ATC6300 LCD 144x144 mm Transfer control device for control of MCCB, ACB, LBS for load transfer between main and standby power supply Control panel instrument Un 100...240 V AC 50/60 Hz, 110...250 V DC Un 12...24 V DC Rated voltage Ue: 100...480 V AC 50/60 Hz screw terminal connection Expandable by maximum 2 additional modules
