Buy PTR Hartmann 2021-H-1.5N-RH-1.8 Precision test tip

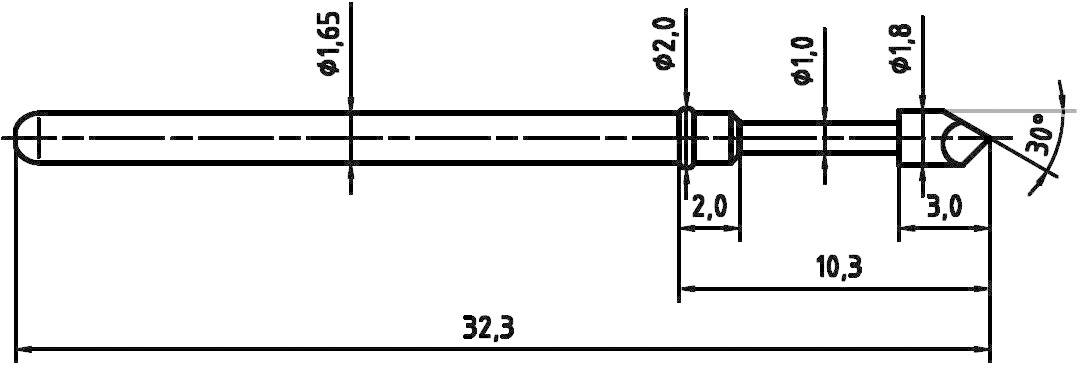

Technical drawing of a cylindrical pin with dimensions: Length 32.3 mm, diameter 1.65 mm, bevelled tip at 30 degrees.

Stroke drawing/circuit diagram

Drawing of a core drill with a cylindrical shaft and conical head. Marked with the letter 'H' in the bottom left.

1/2

Stroke drawing/circuit diagram

Datasheet (PDF)

18 Piece(s) (Only while stocks last)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 2.76 / piece)

€

Report legal concerns

Technical specifications

Continuity Resistance: ≤ 25 mΩ

Nominal current: 3 A

Nominal current - rounded value: 3 A

Refining: Rhodium

Type: H

Type: 2021-H-1.5N-RH-1.8

CS: 2.54 mm

Pitch of spring: 5.3 mm

Pin Ø: 1.65 mm

Pin length: 32.3 mm

Spring force: 1.5 N

Resistance: ≤25 mΩ

Nominal current (details): 3 A

RoHS-compliant: Yes

Product type: Precision test tip

Documents & Downloads

Datasheet

Datasheet 737006 PTR Hartmann 2021-H-1.5N-RH-1.8 Precision test tip

User & Safety Instructions

User & Safety Instructions 737006 PTR Hartmann 2021-H-1.5N-RH-1.8 Precision test tip

Description

Double precision test jack with spring contact for components and printed circuit board test. Consisting of guide housing with spring contact pin with probe. The sleeve is ordered separately, and is installed in a board or Plexiglas disk to hold the test jack. This allows the test jack to be removed or replaced easily.

Hints

Type coding:

xxxx (Series) - xx (head shape) - x.xN (contact button) - xx (processing) - xx.xx (head-Ø in mm/head material)

Processing: AU = Gold, RH = Rhodium, NI = Nickel; Head material: M = Brass, C = Beryllium bronze.
