Buy PULS CP20.242 Rail mounted PSU (DIN) 24 V 20 A 480 W No. of outputs:1 x Content 1 pc(s)

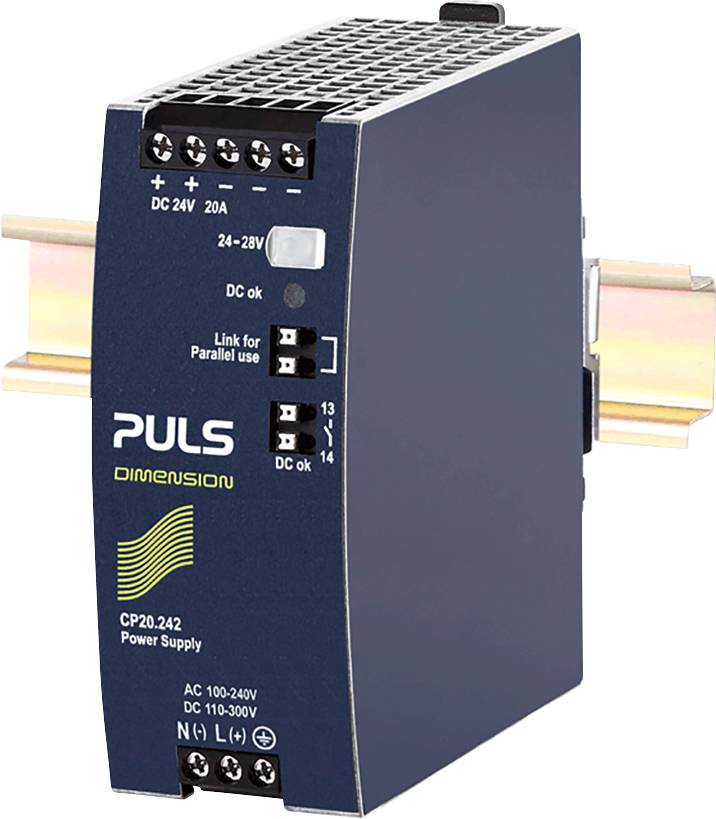

Industrial power supply by PULS for DIN rail mounting, model 'CP20.242', 24V, 20A output, developed for DC applications.

Fast track dispatch on Wed, 23 Sep

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 276.47 / piece)

€ 276.47

plus VAT.

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

AC 100-240V Wide range input
Wide 48mm
Efficiency up to 95.6%
outstanding partial load efficiency
20% Power reserve
Simple tripping of fuses - 3facher Rated current for 12ms
safe HiccupPLUS overload behavior
Active harmonics correction (PFC)
negligible small inrush current
full output power between -25°C and +60°C
DC-OK relay contact
Load distribution for parallel operation
Extended DC input

Technical specifications

Nominal input voltage: 110 - 240 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 85 V

Input voltage: AC 100-240V (± 15%)
DC 110V-300V (± 20%)

Input voltage (max.): 264 V

Max. output current: 20 A

Output current (max.) - rounded: 20 A

: 480 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 24 V

No. of outputs: 1 x

Connection: Screw terminal

Dim: (L x W x H) 127 x 48 x 124 mm

Weight: 830 g

Output voltage (max.): 30 V

Output voltage (min.): 24 V

Operating temperature (max.): +70 °C

Max. operating temperature (derating): +45 °C

Operating temperature (min.): -25 °C

Manufacturer part #: CP20.242

Content: 1 pc(s)

MTBF: 590.000 h

Width: 48 mm

Height: 124 mm

Length: 127 mm

Max. temperature: +70 °C

Min. temperature: -25 °C

Type: CP20.242

Efficiency: 95.6 %

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output type (power supply units)

Nominal input voltage

Output current (max.) - rounded

Min. input voltage

PULS CP20.242 Rail mounted PSU (DIN) 24 V 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:2189087

This article

480 W

Screw terminal

264 V

24 V

Adjustable

110 - 240 V/AC

20 A

85 V

PULS CP10.241-M1 Rail mounted PSU (DIN) 24 V 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:2189069

240 W

Spring-loaded terminal

264 V

24 V

Adjustable

100 - 240 V/AC

10 A

85 V

PULS XT40.361 Rail mounted PSU (DIN) 36 V 26.6 A 960 W No. of outputs:1 x Content 1 pc(s)

Item no:2189071

960 W

Screw terminal

475 V

36 V

Fixed voltage

400 V/3AC

26.6 A

300 V

PULS XT40.481 Rail mounted PSU (DIN) 48 V 20 A 960 W No. of outputs:1 x Content 1 pc(s)

Item no:2189072

960 W

Screw terminal

475 V

48 V

Fixed voltage

400 V/3AC

20 A

300 V

PULS CS5.241-C1 Rail mounted PSU (DIN) 24 V 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Item no:2189073

120 W

Screw terminal

264 V

24 V

Adjustable

100 - 240 V/AC

5 A

85 V

PULS XT40.482 Rail mounted PSU (DIN) 48 V 20 A 40 W No. of outputs:1 x Content 1 pc(s)

Item no:2189074

40 W

Screw terminal

565 V

48 V

Fixed voltage

20 A

360 V

PULS CS10.242 Rail mounted PSU (DIN) 24 V 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:2189077

240 W

Screw terminal

264 V

24 V

Adjustable

100 - 240 V/AC

10 A

85 V

PULS QS10.301 Rail mounted PSU (DIN) 30 V 8.6 A 240 W No. of outputs:1 x Content 1 pc(s)

Item no:2189078

240 W

Spring-loaded terminal

276 V

30 V

Adjustable

100 - 240 V/AC

8.6 A

85 V

PULS XT40.241 Rail mounted PSU (DIN) 24.1 V 40 A 960 W No. of outputs:1 x Content 1 pc(s)

Item no:2189081

960 W

Screw terminal

475 V

24.1 V

Fixed voltage

400 V/3AC

40 A

300 V

PULS ML50.111 Rail mounted PSU (DIN) 24 V 2.1 A 50 W No. of outputs:1 x Content 1 pc(s)

Item no:2189083

50 W

264 V

24 V

110 - 240 V/AC

2.1 A

85 V

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2189087 PULS CP20.242 Rail mounted PSU (DIN) 24 V 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Description

The DIN rail power supplies of THE DIMENSION product family impress through their highest performance, a large variety of variants as well as extensive features and approvals.
