TRU COMPONENTS TC-10580792 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
14-day return policy included
Highlights & Details
Din Rail Power Supply 24 V DC 5 A 120 W
- Input voltage range: 100 - 240 V AC
- Output voltage (nominal): 24 V DC
- Max. output current: 5 A
- Power: 120 W

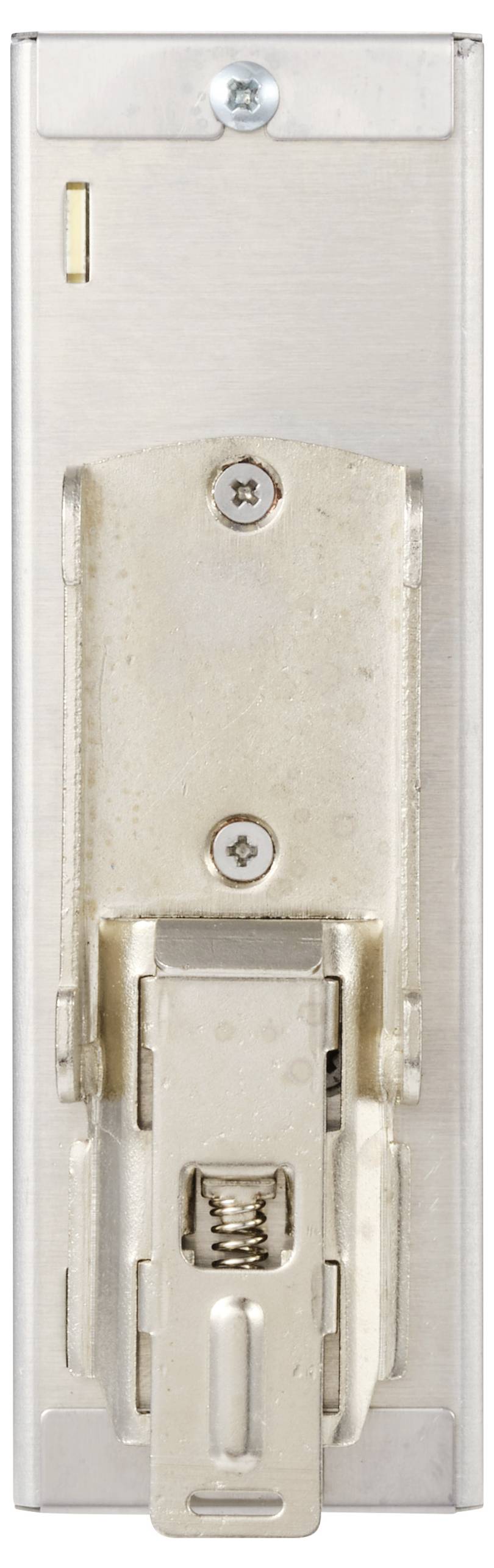

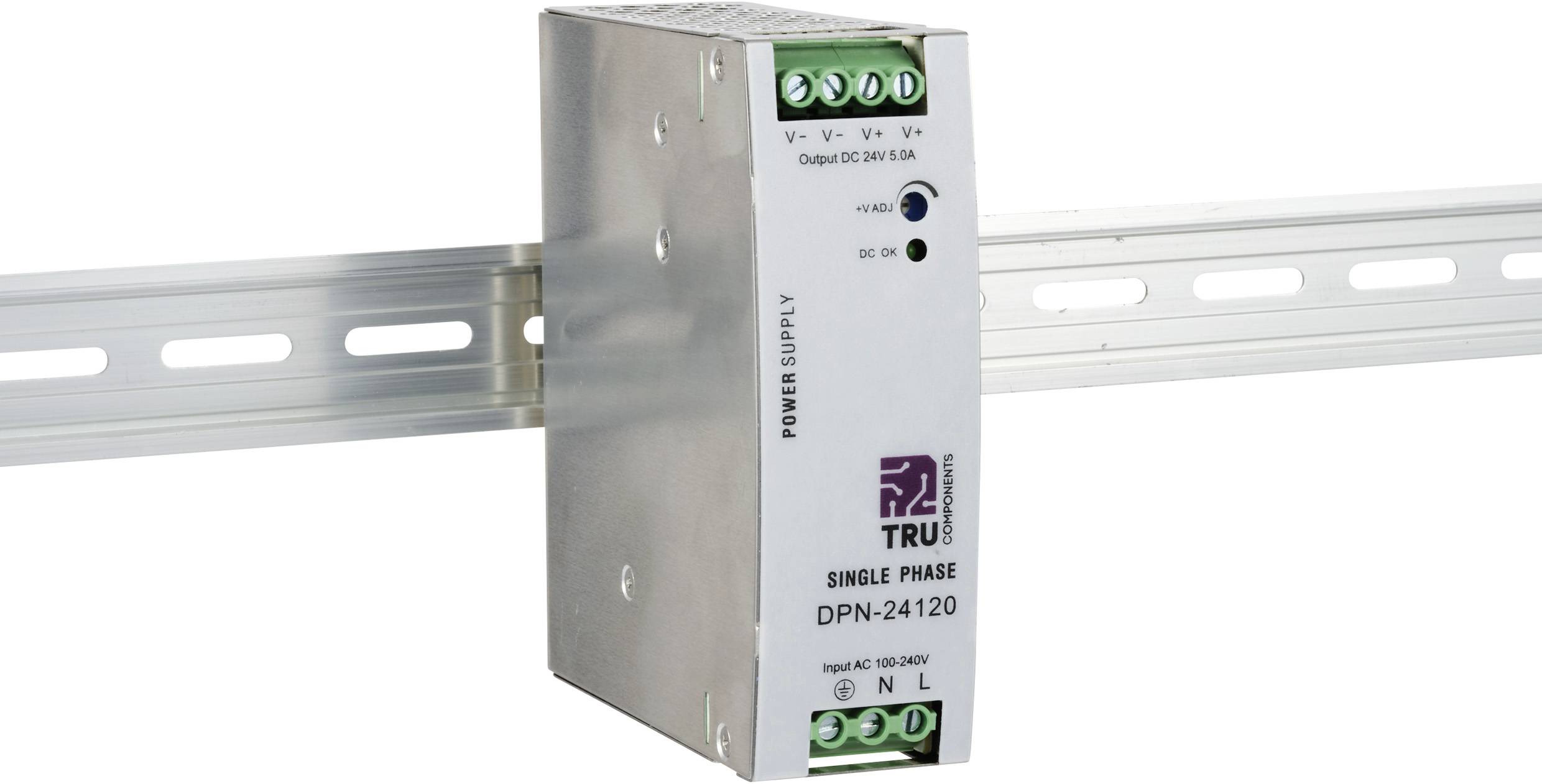

- Can be installed on TS-35/7.5 or TS-35/15 DIN rail
Technical specifications
- Fuse: T5A/L250
- Max. connected products per circuit breaker: 13x Type C16, 26x Type D16
- MTBF: 450 K hrs min, MIL-HDBK-217F (25 °C)
- I/P: 3 poles, O/P: 4 poles
- Output type (power supplies): Shut down O/P voltage, re-power on to recover
- Withstand voltage: I/P-O/P: 3 kV AC, I/P-FG: 2 kV AC, O/P-FG: 0.5 kV AC
- Nominal input voltage
100 - 240 V/AC
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
100 V AC
- Input voltage
100 - 240 V AC
- Input voltage (max.)
240 V AC
- Max. output current
5 A
- Output current (max.) - rounded
5 A
120 W
- Output voltage (nominal)
24 V DC
- No. of outputs
1 x

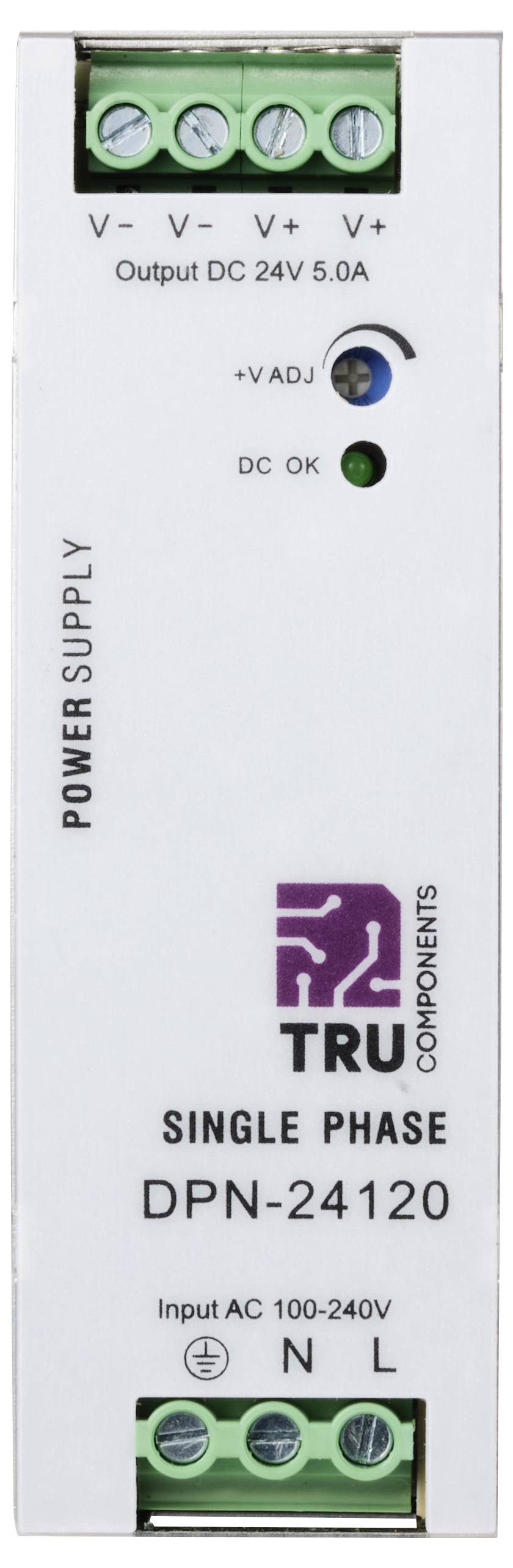

- Connection
Screw terminal

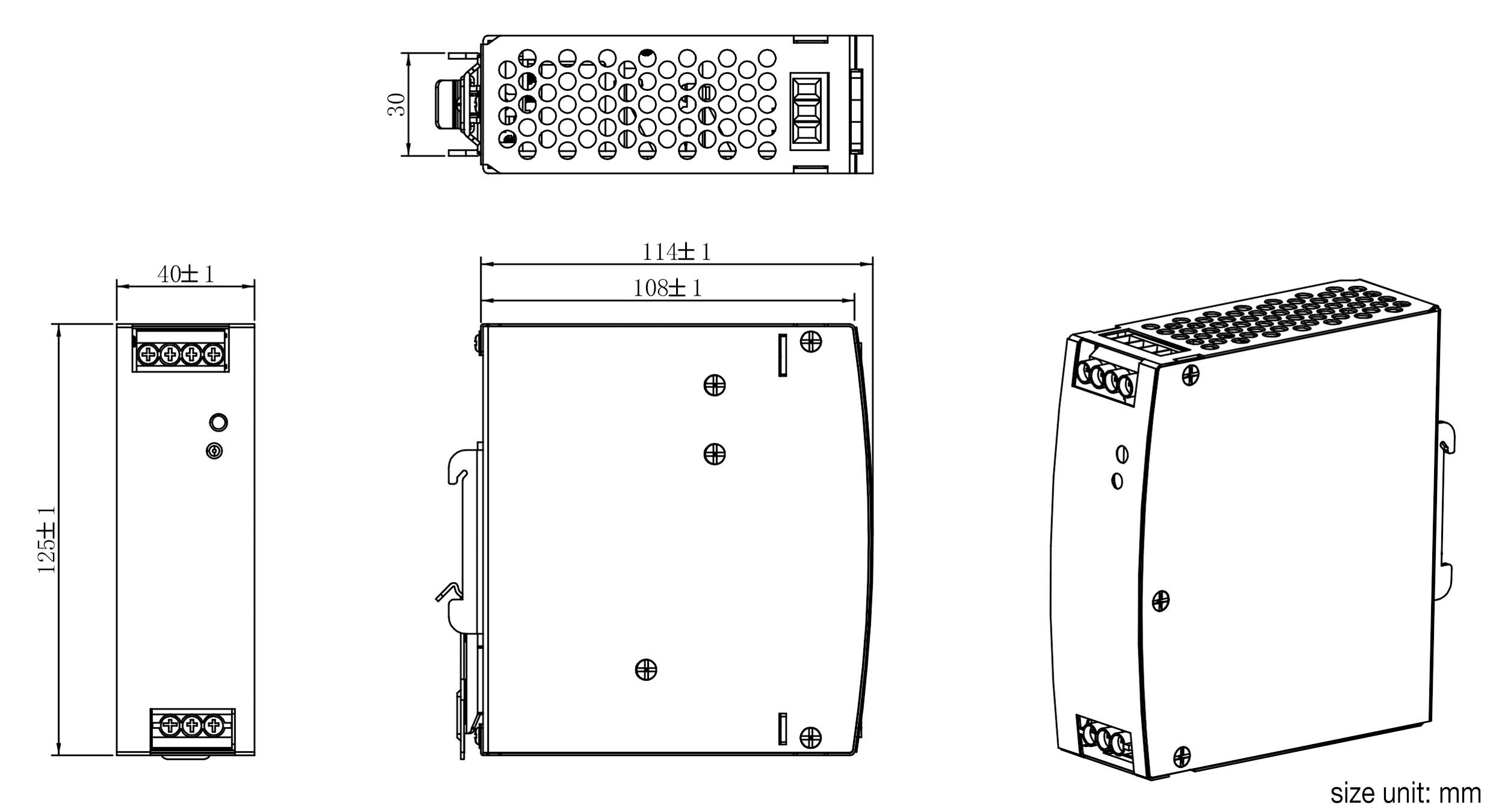

- Dim
(L x W x H) 40 x 114 x 125 mm
- Weight
600 g
- Output voltage (max.)
28 V DC
- Output voltage (min.)
24 V DC
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-20 °C
- Manufacturer part #
TC-10580792
- Content
1 pc(s)
- Width
114 mm
- Height
125 mm
- Length
40 mm

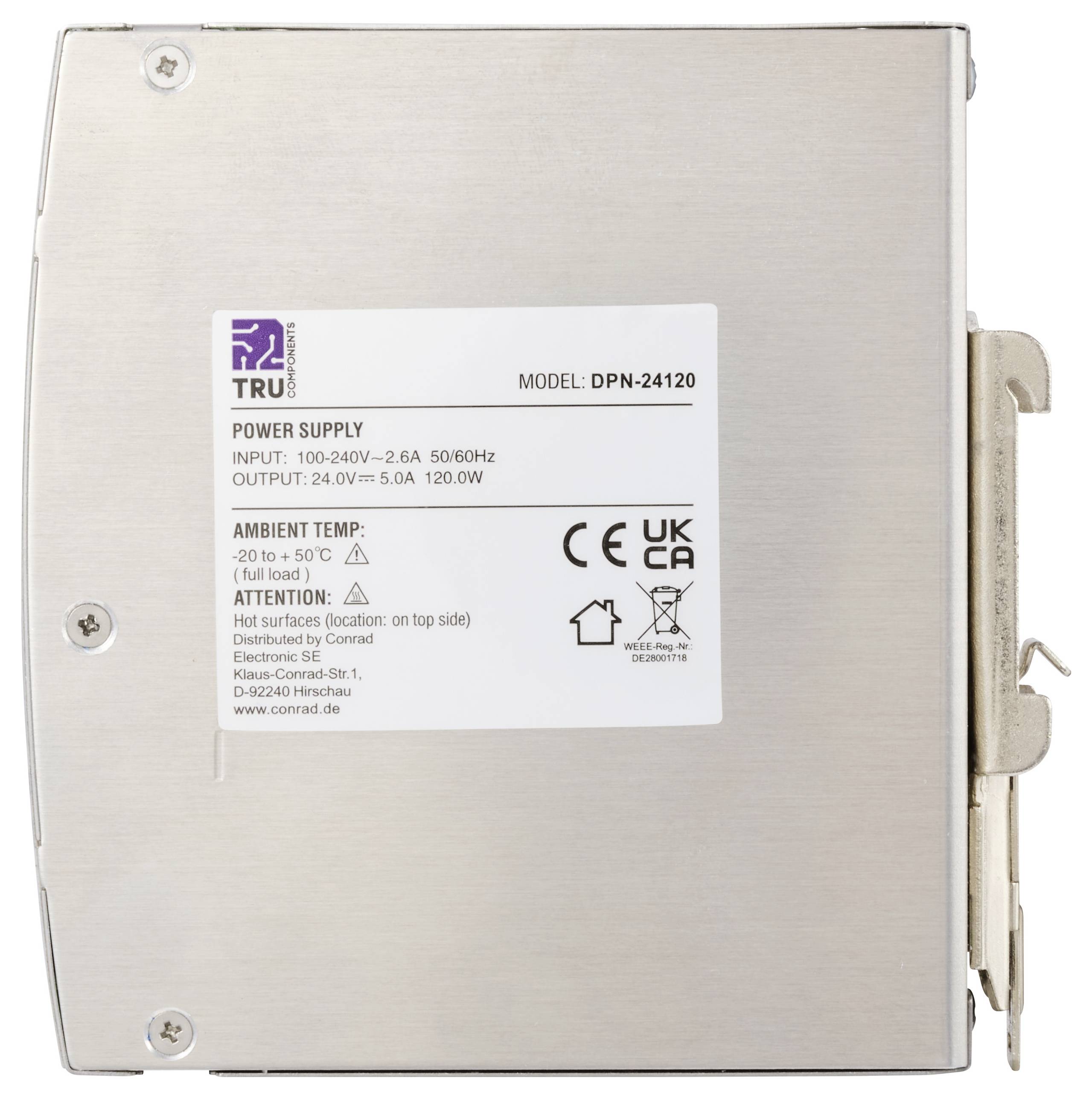

- Type
DPN-24120
- Efficiency
88 %
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2645198 TRU COMPONENTS TC-10580792 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2645198 TRU COMPONENTS TC-10580792 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)
Description
Features
- Universal AC input/full range
- Protection function: Short circuit/Overload/Overvoltage/Over temperature
- Cools by free air convection
- Adjustable DC output voltage
Scope of delivery
- Main unit
