Buy PULS DIMENSION PISA11.410 Overvoltage/overcurrent protector 24 V DC 10 A No. of outputs:4 x Content 1 pc(s)

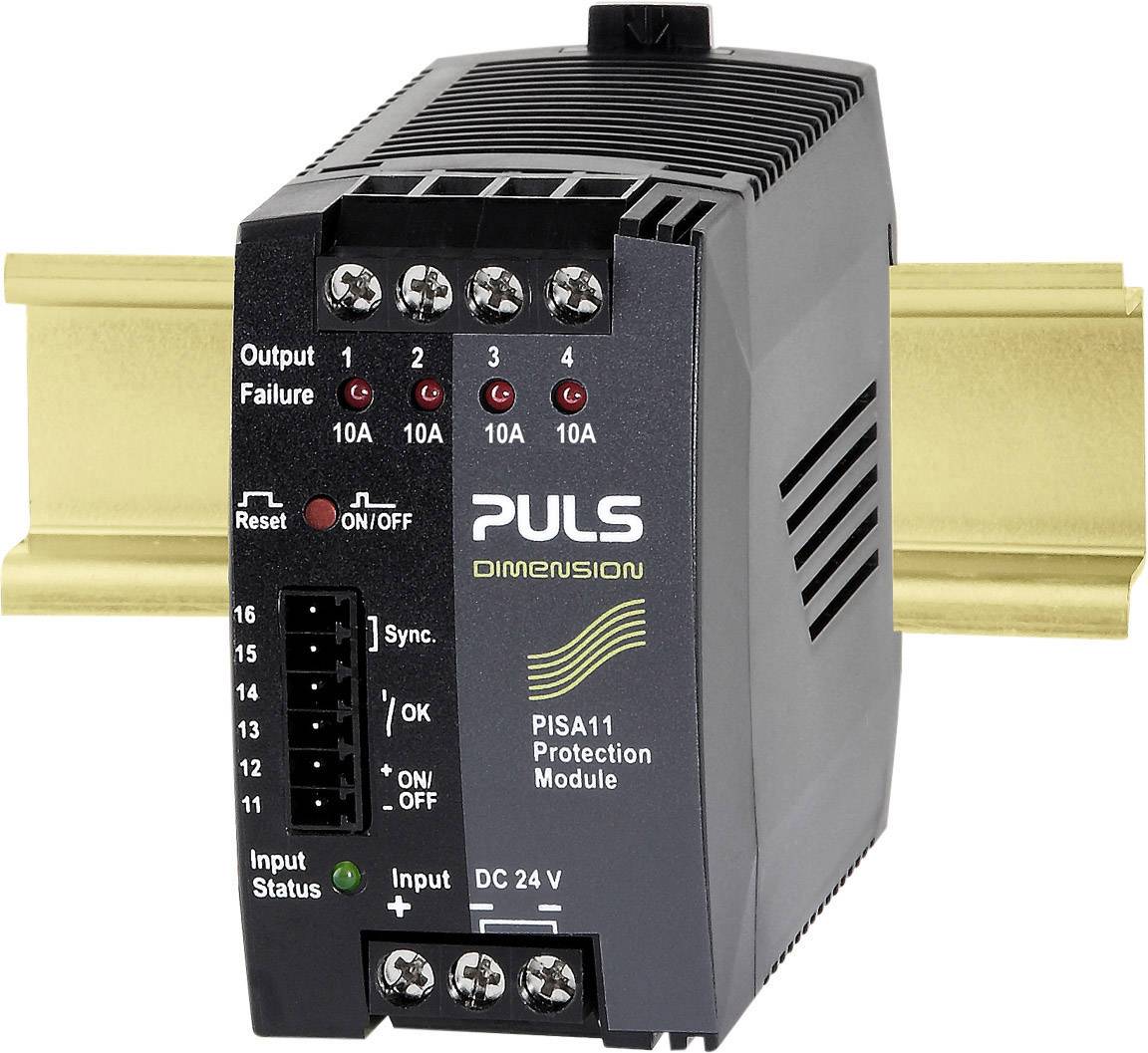

PULS Dimension Protection Module PISA11 on DIN Rail. Shows switches and connections for output and input.

Fast track dispatch on Thu, 17 Sep

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 68.90 / piece)

€ 76.46

-10 %

€ 68.90

plus VAT.

Only 4 Piece(s) available

Report legal concerns

Highlights & Details

4-channel fuse module PISA11.

24 V DC/ 10 A
Additional Voltage Monitoring
LED status and error display
4 xOutputs: 10 A

Technical specifications

Temperature range -25°C to +60°C.

Nominal input voltage: 24 V/DC

Type: DIN rail power supply

Product type: Overvoltage/overcurrent protector

Min. input voltage: 18 V DC

Output voltage: 24 V DC

Inputs: 1

Input voltage: 24 V DC

Input voltage (max.): 30 V DC

Max. output current: 10 A

Output current (max.) - rounded: 10 A

Output voltage (nominal): 24 V DC

No. of outputs: 4 x

Connection: Screw terminal

Dim: (W x H x D) 45 x 75 x 91 mm

Weight: 140 g

Output voltage (max.): 24 V DC

Output voltage (min.): 24 V DC

Manufacturer part #: PISA11.410

Content: 1 pc(s)

Width: 45 mm

Height: 75 mm

Max. temperature: +70 °C

Type: DIMENSION PISA11.410

Depth: 91 mm

Connections: Screw terminals

Output current (details): 4x 10 A

Output current (high): 20 A

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 513927 PULS DIMENSION PISA11.410 Overvoltage/overcurrent protector 24 V DC 10 A No. of outputs:4 x Content 1 pc(s)

Description

With the PISA-fuse module is for the first time in addition to a pure current monitoring of the individual outputs and the 24V power supply voltage is monitored and protected against voltage dips. A protective shield in the input stage of the PISA module functions as a variable valve and can only so much power that the supply voltage is not under 21 V sinks. This is a safe and uninterrupted supply for sensitive loads possible if this to the same power supply as the PISA module can be connected. For consumers, the insensitive to short voltage dips respond or the self-the cause of error on the 24 V supply, to be connected to one of the four current monitored outputs of the PISA module.

This text is machine translated.
