Name: PULS PISA-M-402 RCCB 12 V DC, 24 V DC 8 A 1 pc(s)
Brand: PULS
SKU: 3787704
Availability: InStock

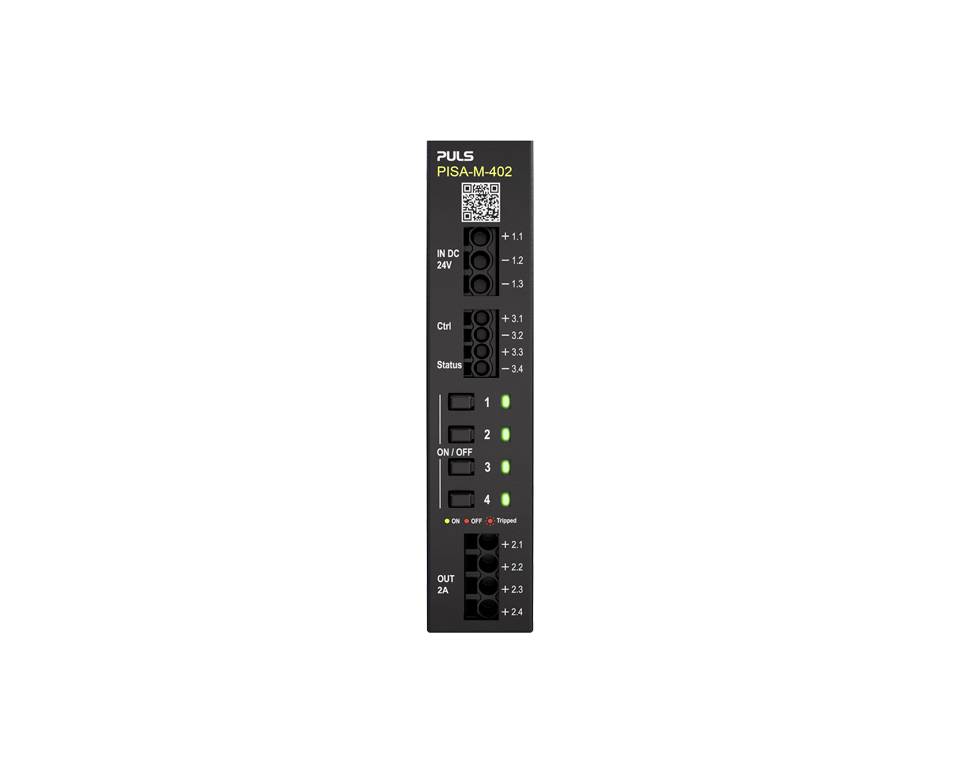

Front view of a PULS PISA-M-402 industrial power distribution module with labeled input, control, status LEDs, and output terminals.

Blue PULS-branded rectangular product box with a top flap and white outline<br>

Black PULS PISA-M-402 24V power distribution module with QR code, terminal ports, on/off switches, and green status LEDs.

1/3

Product type

RCCB

Switching voltage

12 V DC

24 V DC

Switching current (max.)

8 A

Connection

Push-in connector

Factory colour

Black

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 10 Nov

12 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 131.09 / piece)

€ 131.09

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Electronic circuit breaker

Versions with fully adjustable and fixed output current
Selective switching off of overloaded output channels
Compatible even with large capacitive loads
24 V and 12 V operation
Installation width only 22.5 mm
Protective function with overloading of the power supply unit
Local operation and reset (reset) via buttons
Configurable signaling and communication interface
ON/OFF function for each individual output channel
Simple wiring through push-in terminals

Technical specifications

Product type: RCCB

Connection: Push-in connector

Factory colour: Black

Switching voltage: 12 V DC
24 V DC

Switching current (max.): 8 A

Min. temperature: -25 °C

Max. temperature: 70 °C

: IP20

Length: 98 mm

Width: 22.5 mm

Height: 104 mm

Compatible with (details): Mounted on a standard 35 mm DIN rail according to EN 60715 or EN 50022 with a rail height of 7.5 mm or 15 mm

Content: 1 pc(s)

Type: PISA-M-402

Dim: (L x W x H) 98 x 22.5 x 104 mm

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3787704 PULS PISA-M-402 RCCB 12 V DC, 24 V DC 8 A 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3787704 PULS PISA-M-402 RCCB 12 V DC, 24 V DC 8 A 1 pc(s)

Conformity certificate

Conformity certificate 3787704 PULS PISA-M-402 RCCB 12 V DC, 24 V DC 8 A 1 pc(s)

Description

The PISA-M devices are miniature 4-channel protection modules for 24 V and 12 V systems that offer all the advantages of electronic circuit breakers in a compact housing for DIN rail mounting: Fully adjustable current tripping thresholds for 4 independent output channels in a single device – including selection of trip characteristic combined with various remote signaling and communication options, WAS allows remote configuration, monitoring and control.

The PISA-M supports several user-selectable signaling and communication methods that allow simple warning and reset functions to be selected.

All PISA-M devices are equipped with push-in terminals, which are optimized for automatic wiring and enable quick and secure installation.
