Name: PULS PISA-M-4CL2 RCCB 20 A 1 pc(s)
Brand: PULS
SKU: 3787703
Availability: InStock

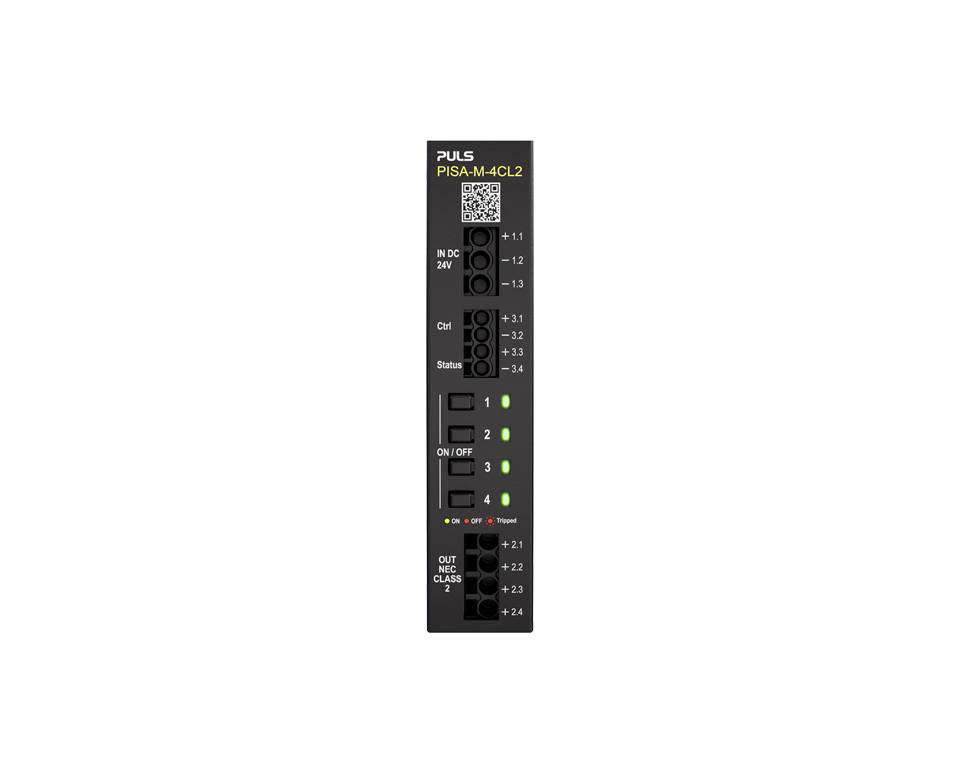

Front view of a PULS PISA-M-4CL2 industrial power distribution module with labeled input, control, status, and output terminals and green status LEDs.

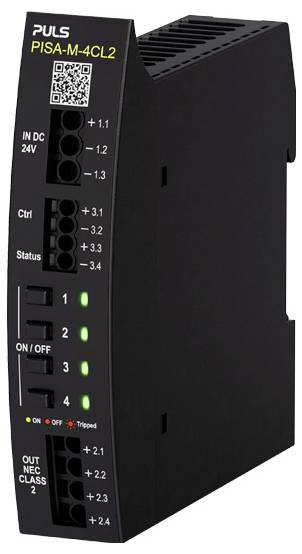

Black PULS PISA-M-4CL2 DIN-rail power distribution module with QR code, input/output terminal labels, four channel switches, and green status LEDs.

1/3

Product type

RCCB

Switching current (max.)

20 A

Type

Electronic circuit breaker (electronic circuit breaker) with 4 current-limited output channels and adaptive, voltage-dependent trigger threshold to maintain the maximum output power as per NEC Class 2.

Connection

Push-in connector

Factory colour

Black

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

11 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 121.00 / piece)

€ 121.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Electronic circuit breaker 4 x 24 - 12 V, 3.75 - 5 A

Adaptive voltage-dependent tripping current for maximum output performance in accordance with NEC Class 2
Selective switching off of overloaded output channels
Compatible even with large capacitive loads
24 V and 12 V operation
Installation width only 22.5 mm
Protective function with overloading of the power supply unit
Local operation and reset (reset) via buttons
Configurable signaling and communication interface
ON/OFF function for each individual output channel
Simple wiring through push-in terminals

Technical specifications

Permissible input voltage ranges are 19.2–30 Vdc (for 24 V systems) or 9.6–15 Vdc (for 12 V systems)

Product type: RCCB

Type: Electronic circuit breaker (electronic circuit breaker) with 4 current-limited output channels and adaptive, voltage-dependent trigger threshold to maintain the maximum output power as per NEC Class 2.

Connection: Push-in connector

Factory colour: Black

Switching current (max.): 20 A

Min. temperature: -25 °C

Max. temperature: 70 °C

: IP20

Length: 98 mm

Width: 22.5 mm

Height: 104 mm

Compatible with (details): Installation on a 35 mm DIN rail according to EN 60715 or EN 50022 with a rail height of 7.5 mm or 15 mm

Industrial packaging: Yes

Content: 1 pc(s)

Type: PISA-M-4CL2

Dim: (L x W x H) 98 x 22.5 x 104 mm

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3787703 PULS PISA-M-4CL2 RCCB 20 A 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3787703 PULS PISA-M-4CL2 RCCB 20 A 1 pc(s)

Conformity certificate

Conformity certificate 3787703 PULS PISA-M-4CL2 RCCB 20 A 1 pc(s)

Description

The PISA-M devices are miniature 4-channel protection modules for 24 V and 12 V systems that offer all the advantages of electronic circuit breakers in a compact housing for DIN rail mounting: Voltage-dependent tripping current for 4 independent output channels in a single device – including selection of trip characteristic combined with various remote signaling and communication options, WAS allows remote configuration, monitoring and control.
The PISA-M supports several user-selectable signaling and communication methods that allow simple warning and reset functions to be selected.
All PISA-M devices are equipped with push-in terminals, which are optimized for automatic wiring and enable quick and secure installation.

This text is machine translated.
