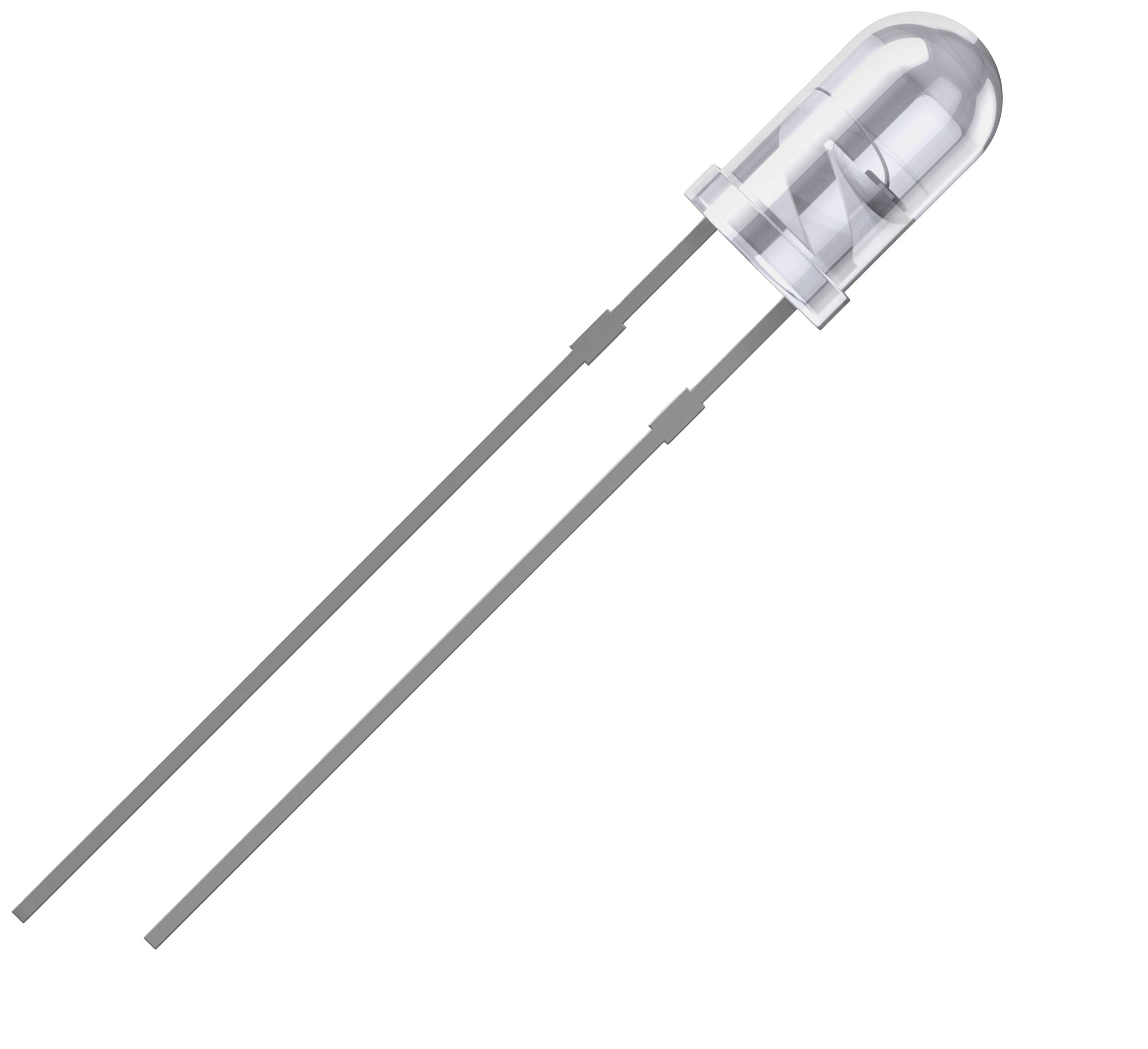

Name: Quadrios 2111O177 LED wired White Circular 3 mm 8000 mcd 25 ° 20 mA 3 V
Brand: Quadrios
SKU: 2583918
Availability: InStock

Technical specifications

Product type: LED wired

Factory colour: White

Forward voltage U(F): 3 V

Forward current I(F): 20 mA

Operating voltage: 3 V

Operating current: 20 mA

Casing: 3 mm

Type: Radial lead

Light intensity I(V): 8000 mcd

Colour temperature: 8000 K

Radiation angle: 25°

Type (LEDs): Water clear

Lens type: Circular

Dim: (Ø) 3 mm

(Ø): 3 mm

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2583918 Quadrios 2111O177 LED wired White Circular 3 mm 8000 mcd 25 ° 20 mA 3 V

User & Safety Instructions

User & Safety Instructions 2583918 Quadrios 2111O177 LED wired White Circular 3 mm 8000 mcd 25 ° 20 mA 3 V

Description

This wired LED is ideal for common applications and experiments in the field of semiconductor light and indication. As a standard 2.54 pitch component, the connection of the cathode to which the negative potential is applied is shortened. LEDs must always be operated in the forward direction and current limited to the maximum permissible milliampere value in order to prevent damage. This can be achieved with a constant current source or a suitable series resistor. LEDs are generally characterized by a high degree of efficiency, low energy consumption, long life/robustness and a directional light emission.

This text is machine translated.

Hints

All standard LED chips require a current-limiting resistor/constant current power source.
