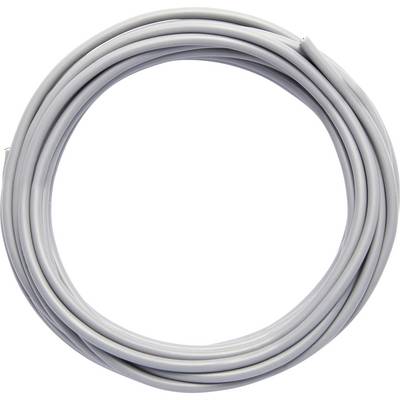

Quadrios 25CW103 Wire LiFY 6.0 mm² Grey 3 m
EAN:
Part number:
Item no:
Product type
Wire
Cross section (each core)
6.0 mm²
Cable type
LiFY
Outside Ø
6.0 mm
Content
3 m
Datasheet (PDF)
Number
Total (1 m = € 3.08)
€ 9.24
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Flex LiFY gray 6 mm² 3 m
- Ideal for data lines or for wiring, switching signals, model construction, handicrafts, experiments, Repairs, research and development, etc.
- Highly flexible, durable and stable - the structure allows very tight bending radii.
- Can be easily stripped
- Corresponds to all normative requirements and is very durable
Technical specifications
- Product type
Wire
- Content
3 m
- Cross section (each core)
6.0 mm²
- Cable type
LiFY
- Outside Ø
6.0 mm
- Halogen-free
Yes
- Manufacturer part #
25CW103
- Factory colour
Grey
- Insulation
PVC
- Core layout
0.16 mm x 300
- Nominal voltage U0
300 V
- Cross section
6.0 mm²
- Max. temperature range (flexible installation)
80 °C
- Min. temperature range (flexible installation)
-15 °C
- Max. temperature range (fixed installation)
80 °C
- Min. temperature range (fixed installation)
-15 °C
- Type
25CW103
Documents & Downloads
Datasheet
Datasheet 3400844 Quadrios 25CW103 Wire LiFY 6.0 mm² Grey 3 m
User & Safety Instructions
User & Safety Instructions 3400844 Quadrios 25CW103 Wire LiFY 6.0 mm² Grey 3 m
Description
High-quality LiFY copper wire for laboratories, workshops, development offices and hobbies.
PVC sheath for high dielectric strength and simple distinction.
High purity copper with excellent solderability for a wide range of applications.
This high-quality copper wire is the optimal solution for multiple applications. The PVC sheath provides good dielectric strength and easy distinction of the cables. The highly pure copper braid can be soldered very well and the solid PVC sheath can be easily stripped. The copper braid is highly flexible, has a long life and is sturdy and meets all normative requirements.
This text is machine translated.
PVC sheath for high dielectric strength and simple distinction.
High purity copper with excellent solderability for a wide range of applications.
This high-quality copper wire is the optimal solution for multiple applications. The PVC sheath provides good dielectric strength and easy distinction of the cables. The highly pure copper braid can be soldered very well and the solid PVC sheath can be easily stripped. The copper braid is highly flexible, has a long life and is sturdy and meets all normative requirements.
This text is machine translated.
Scope of delivery
- 3 m LiFY-stranded wire gray 6 mm²
