Name: Quadrios LED set Natural white Circular 5 mm 10000 mcd 30 ° 20 mA 3.0 V
Brand: Quadrios
SKU: 2899411
Availability: InStock

Highlights & Details

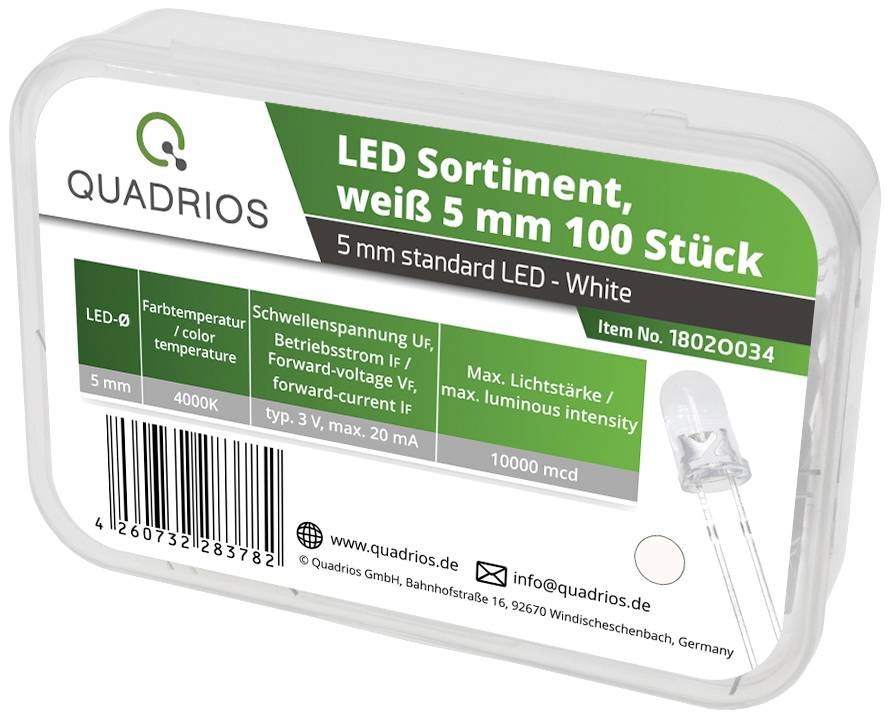

Standard LED set natural-white, 5mm 4000K, 100 pcs.

High-quality natural-white light emitting diodes 5 mm
Brightness 10000 mcd, angle of radiation 25°
Lens clear
Total content of 100 parts

Our service for you

Technical specifications

Manufacturer color: Natural-white
Casing: 5 mm
Design: Radially wired
Lens shape: Round
Material: InGaAIP
FORWARD VOLTAGE U(F):3.0 V
Forward current I(F) 20 mA
Light intensity I(V) 10000 mcd
Wavelength/color temperature: 4000-4500K
Beam angle: 30°
Casing color/design: Clear
Temperature range: -25 °C – 80 °C

Product type: LED set

Factory colour: Natural white

Forward voltage U(F): 3.0 V

Forward current I(F): 20 mA

Operating voltage: 3.0 V

Operating current: 20 mA

Casing: 5 mm

Type: Radial lead

Light intensity I(V): 10000 mcd

Radiation angle: 30°

Type (LEDs): Water clear

Technology: InGaAIP

Lens type: Circular

Dim: (Ø) 5 mm

Min. temperature: -25 °C

Max. temperature: 80 °C

(Ø): 5 mm

RoHS-compliant: Yes

Content: 100 Parts

Documents & Downloads

Datasheet

Datasheet 2899411 Quadrios LED set Natural white Circular 5 mm 10000 mcd 30 ° 20 mA 3.0 V

User & Safety Instructions

User & Safety Instructions 2899411 Quadrios LED set Natural white Circular 5 mm 10000 mcd 30 ° 20 mA 3.0 V

Description

This experimental and practical assortment with wired standard LEDs is ideally suited for immediate start in applications with semiconductor lights. The data sheet contains useful information about the assortment - as well as important technical details about the contained components. This is the only way to ensure that the LEDs can be operated within their operating parameters because the components are clearly specified. Please note that LEDs must always be current-limited by a series resistor or a constant current source!
Delivery: Blister pack, 5 mm LEDs (100 pieces), operating current type. 20 mA · Forward voltage 3.0 V, brightness: 1000 mcd, beam angle: 30°, operating temperature -25 °C ... +80 °C.

This text is machine translated.
