Buy QUIO QU-CM-5510-2 Chip card reader

A black Quio card machine with a slot for chip cards. Ideal for secure transactions at point of sale.

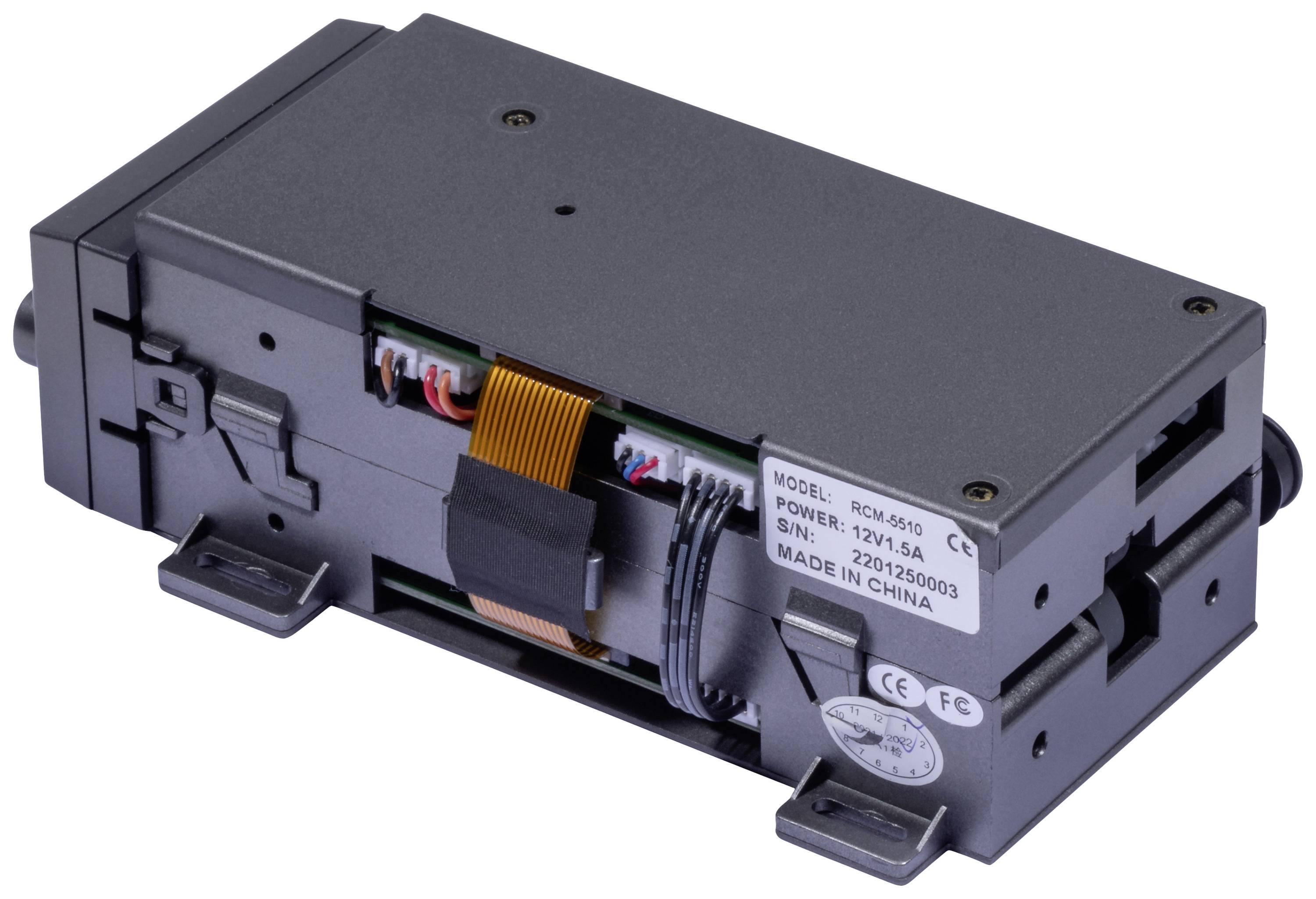

An electronic device with cable connections and a label from China, displaying the model number, power supply, and serial number.

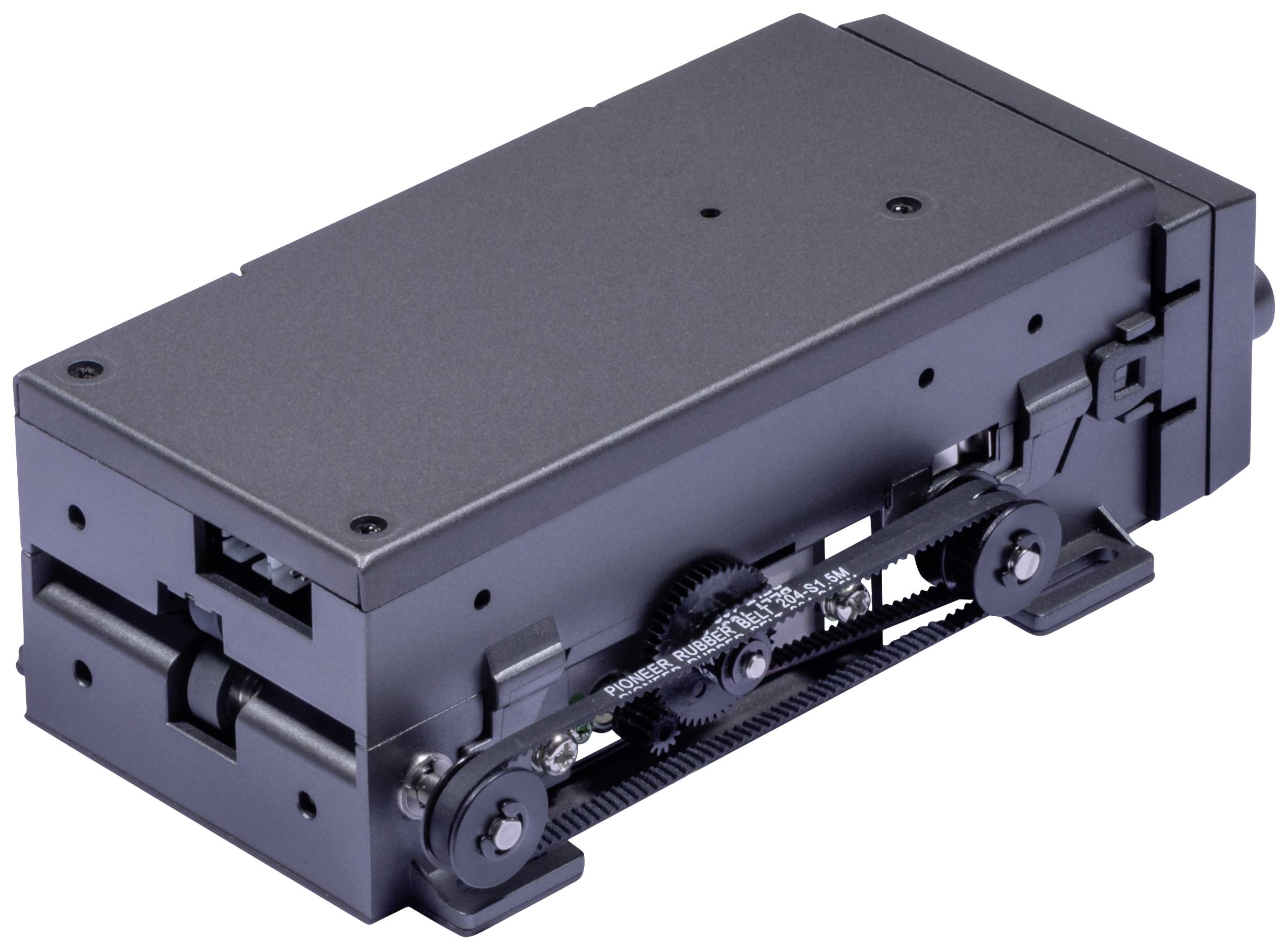

Black mechanical device with gears and belt drive, possibly part of a machine or electronic device.

1/3

Dispatches on Wed, 16 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 210.08 / piece)

€ 210.08

plus VAT.

Report legal concerns

Highlights & Details

IC-Contact & RFID Motor card reader & encoder

Parking systems, self-service terminals, retail POS, traffic control stations, casino card readers, ticket readers, Ticket reader, ATM card reader

Technical specifications

Operating voltage: DC 12V ± 5%Interface: RS232Operating current <: 3aOperating temperature: 0 °C ~ 50 °CPermitted air humidity: 30% – 90% rel. air humidityIntegrated 24V / 12V converterElectrical & mechanical shutter (optional)

Product type: Chip card reader

Range of uses: Parking systems
Self service terminals
Automated ticketing

Interfaces: RS232

Weight: 1300 g

Length: 140.2 mm

Height: 83.5 mm

Width: 40.5 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2568455 QUIO QU-CM-5510-2 Chip card reader

Download

Download 2568455 QUIO QU-CM-5510-2 Chip card reader

Description

The device is a motorized card reader for chip, magnetic & RFID cards. It is the first motorized card reader, which is equipped with a dual shutter system. Thus, the motorized card reader is secured against dust and other unwanted objects in the inner casing. Our motorized card reader is able to pull in and output the respective card both at the front and at the back.

This text is machine translated.
