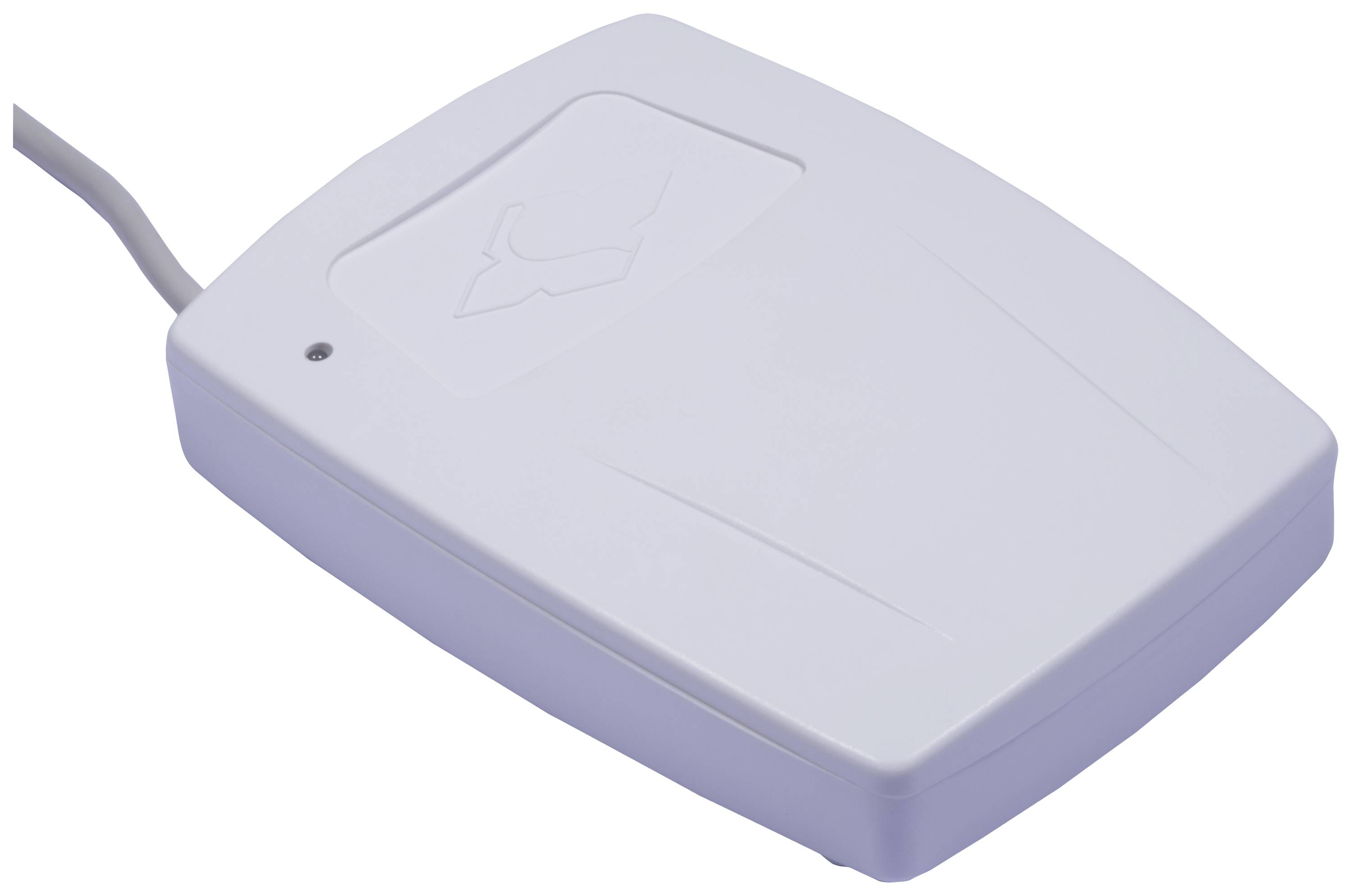

QUIO QU-DR-791 Chip card reader
EAN:
Part number:
Item no:
Number
Total (€ 67.22 / piece)
€ 67.22
plus VAT.
Highlights & Details
Desktop reader PC/SC
- Desktop readers, door access in shops, homes, factories, laboratories, Banks, prisons
Technical specifications
- Working frequency: 13.56MHzDisplay: 1 tri-color LEDSupply voltage: DC5V ± 10%Rated output: 0.9WAmbient temperature -25 ~ +85 ℃Storage temperature -40 ~ +125 ℃PC software: PCSC Communication ToolExample code: VC, VB, C++ Builder, DELPHI, power builder
- Product type
Chip card reader
- Range of uses
Access management
Access management
- Interfaces
USB
PC/SC
- Weight
150 g
- Length
123 mm
- Height
88 mm
- Width
25 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2568452 QUIO QU-DR-791 Chip card reader
User & Safety Instructions 2568452 QUIO QU-DR-791 Chip card reader
Download
Download 2568452 QUIO QU-DR-791 Chip card reader
Description
PC/SC RFID Table reader for access control. This model is available as HF RFID 13.56 MHz version. It is ideal for RFID door access
This text is machine translated.
This text is machine translated.
Features
- RF STANDARD: ISO14443A, ISO14443BSAM Slots: 3 slots, support ISO7816 (T=0 & T=1, support PPS, Max. 115200bps)Example code: VC, VB, C++ Builder, DELPHI, power builderPICC: Mifare 1K, Mifare 4K, Mifare Ultralight, Mifare Mini, Mifare DESFire, Mifare Plus, T=CL Type A, T=CL Type B, ISO7816 T=0, ISO7816 T=1
