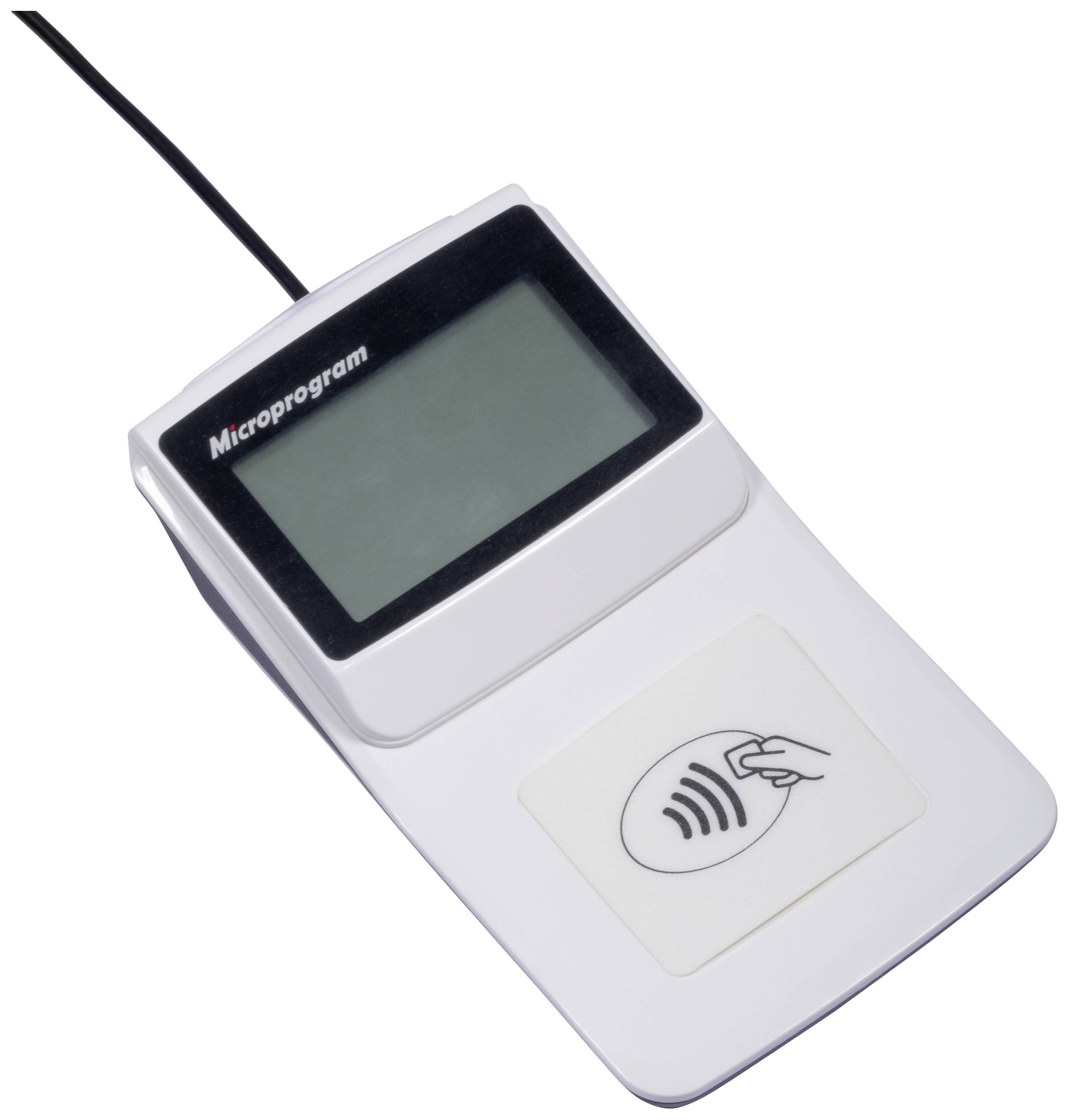

QUIO QU-DR-880 Chip card reader
EAN:
Part number:
Item no:
Number
Total (€ 373.95 / piece)
€ 373.95
plus VAT.
Highlights & Details
Desktop reader PC/SC
- Table reader, door access in shops, households, factories, laboratories, Banks, prisons
Technical specifications
- Working frequency: 13.56MHzSupply voltage DC2.5V~12VRated output: 0.9WDimensions: 158mm x 92mm x 42mmAmbient temperature -25 ~ +85 ℃Storage temperature -40 ~ +125 ℃PC software: PCSCExample code: VC
- Product type
Chip card reader
- Range of uses
Access management
Access management
- Interfaces
USB
PC/SC
- Display size
240x128 Pixel LCD
- Weight
220 g
- Length
158 mm
- Height
92 mm
- Width
42 mm
- LCD
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2568453 QUIO QU-DR-880 Chip card reader
User & Safety Instructions 2568453 QUIO QU-DR-880 Chip card reader
Download
Download 2568453 QUIO QU-DR-880 Chip card reader
Description
PC/SC RFID Table reader for access control. This model is available as HF RFID 13.56 MHz version.
This text is machine translated.
This text is machine translated.
Features
- PCD CL RC663RF STANDARD: ISO14443A, ISO14443B, ISO15693SAM Slots: 4 slots, support ISO7816 (T=0 & T=1, support PPS, Max. 230400bps)PICC: SR176 SRI512 SRI1K SRI2K SRI4K SRIX4K T=CL TYPE B I.CODE 1 I.CODE SLI I.CODE SLI-S TI TAG-IT SERIES ST LRI SERIES ISO7816 PPS ISO7816 T=0 ISO7816 T=1
