Radxa RS102-D0H Radxa Zero 512 MB 4 x 1.8 GHz

A single-board computer with a USB port, two USB-C ports and a range of GPIO pins, suitable for DIY projects.

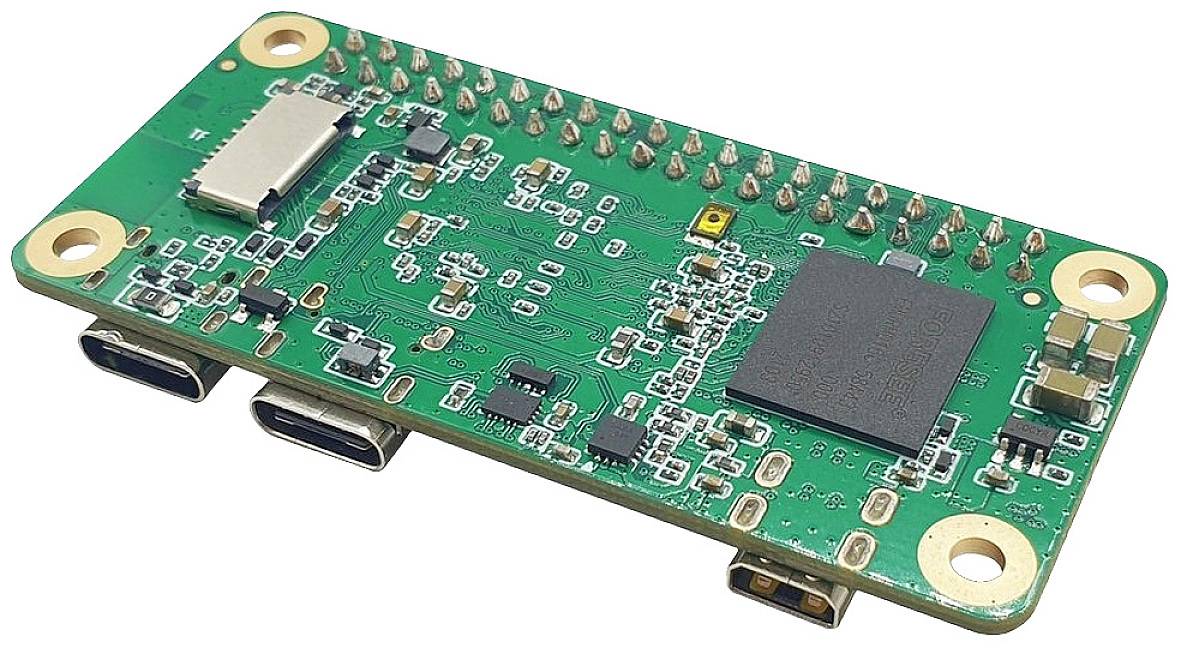

Small green printed circuit board with multiple electronic components, including integrated circuits and connector ports, on one side.

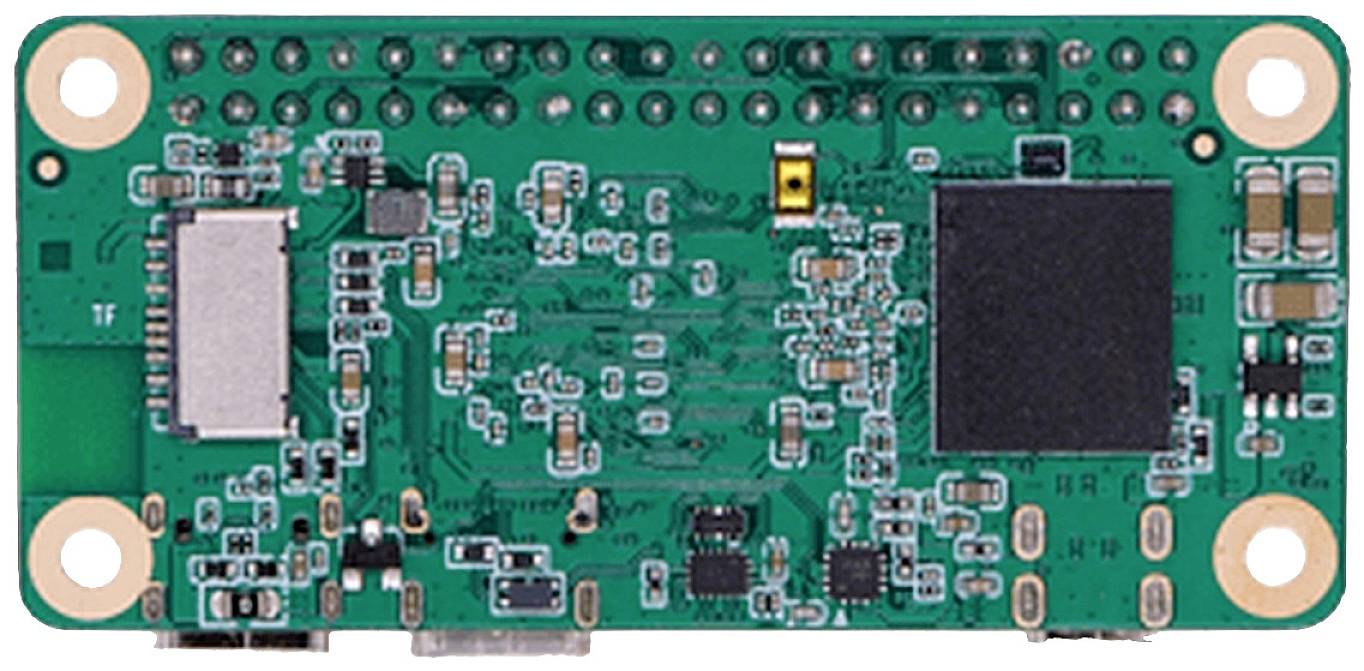

Small printed circuit board with various electronic components.

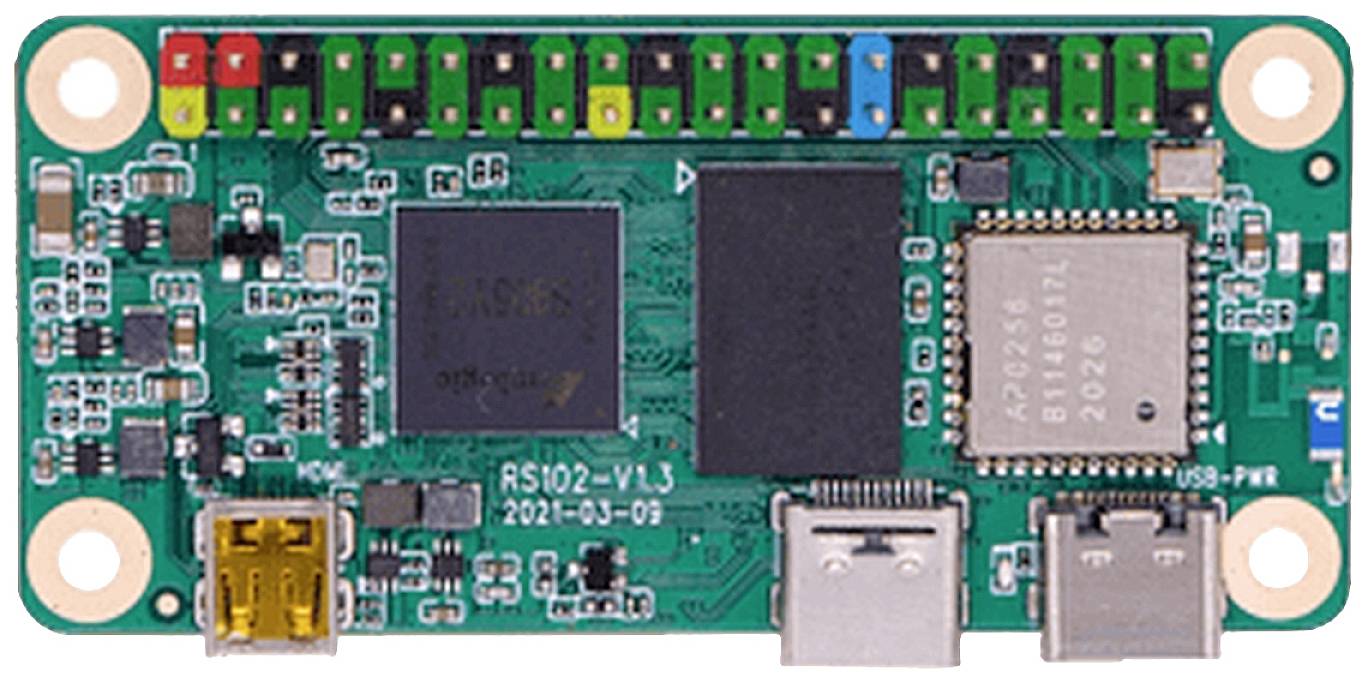

A Raspberry Pi Zero W development board with components, USB, HDMI and GPIO ports for various electronics projects.

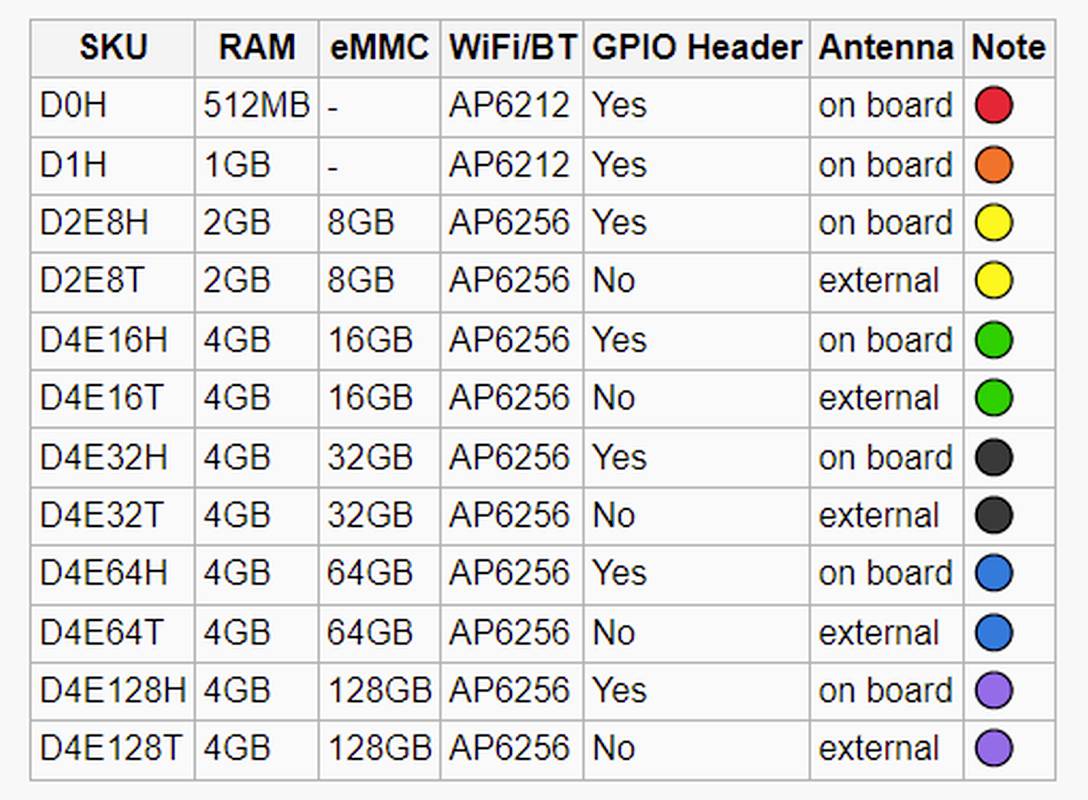

'Table with SKU, RAM, eMMC, Wi-Fi/Bluetooth, GPIO Header, Antenna and Note. Contains information about various module combinations.'
1/5
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • IO 40-pin header :1x UART- 2 x SPI bus- 2 x I2C bus- 1 x PCM/I2S- 1 x SPDIF- 1 x PWM- 1 x ADC- 6 x GPIO- 2 x 5V DC power in- 2 x 3.3V power pin
Product type

SBC

Type

Radxa Zero

SoC

Amlogic S905Y2

Processor

ARM Cortex-A53

Processor cores (No.)

4 x

GPU

Mali G31 MP2

512 MB

Clock speed

1.8 GHz

Memory type

LPDDR4

Operating system (Version)

w/o OS

Memory capacity

512 MB

Internal ports

GPIO (40-pin)

External ports

USB 2.0

USB 3.0

HDMI™

Wi-Fi

b/g/n

Bluetooth

4.0

Power supply (LOV)

via USB

Output voltage

5 V

Output current

1 A

Length

66 mm

Width

30.5 mm

Height

5 mm

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2530835 Radxa RS102-D0H Radxa Zero 512 MB 4 x 1.8 GHz

User & Safety Instructions

User & Safety Instructions 2530835 Radxa RS102-D0H Radxa Zero 512 MB 4 x 1.8 GHz

Description

Quad-core power with up to 4GB LPDDR4 RAM in the dimensions of a USB stick.

This text is machine translated.

What kind of Single Board Computers (SBCs) are you looking for?

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
