Radxa RS102-D4E16T Radxa Zero 4 GB 4 x 1.8 GHz

A single-board computer with USB-C ports and GPIO pins. Suitable for hardware development projects and DIY electronics.

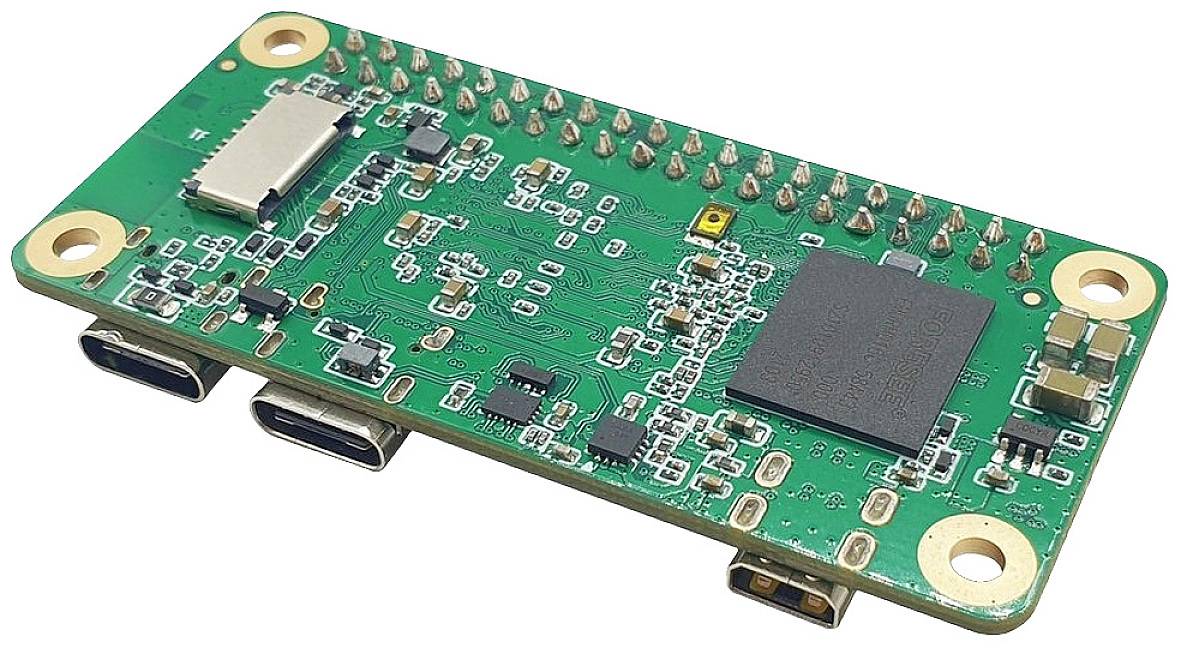

Green electronic circuit board with three USB-C ports and various chips and components.

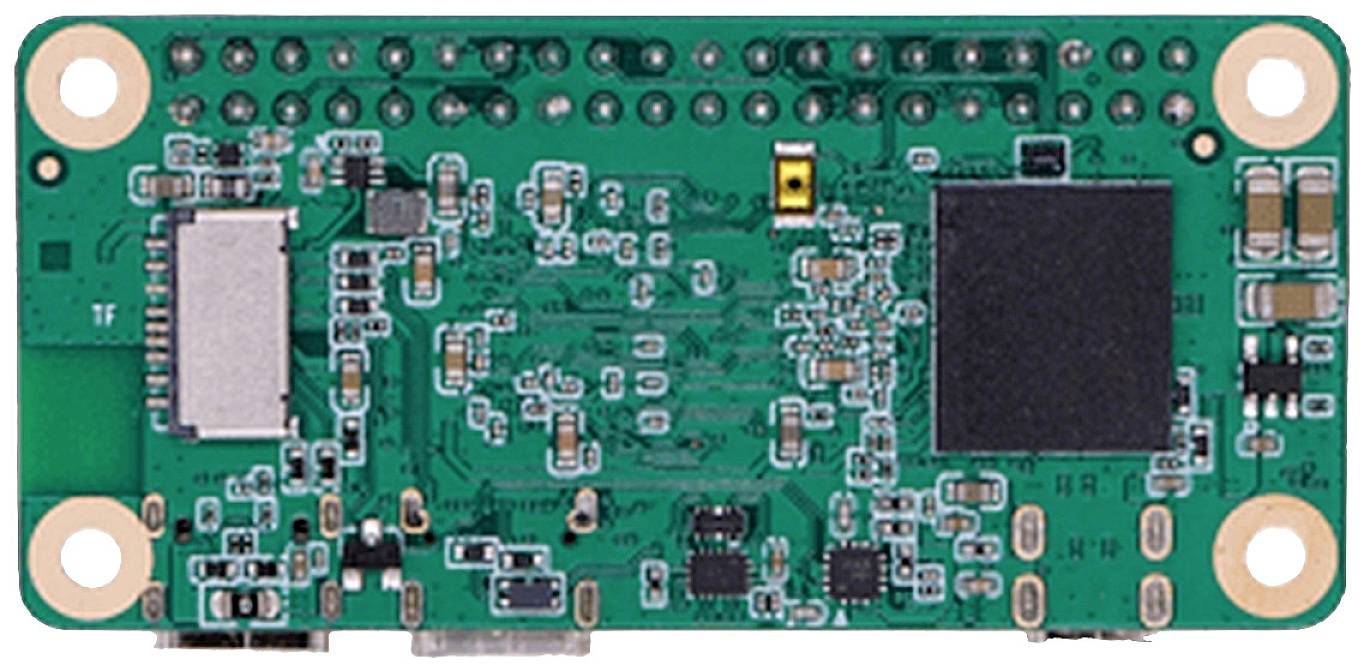

A green PCB (printed circuit board) with various electronic components and connections, four secured corners, possibly a microcontroller.

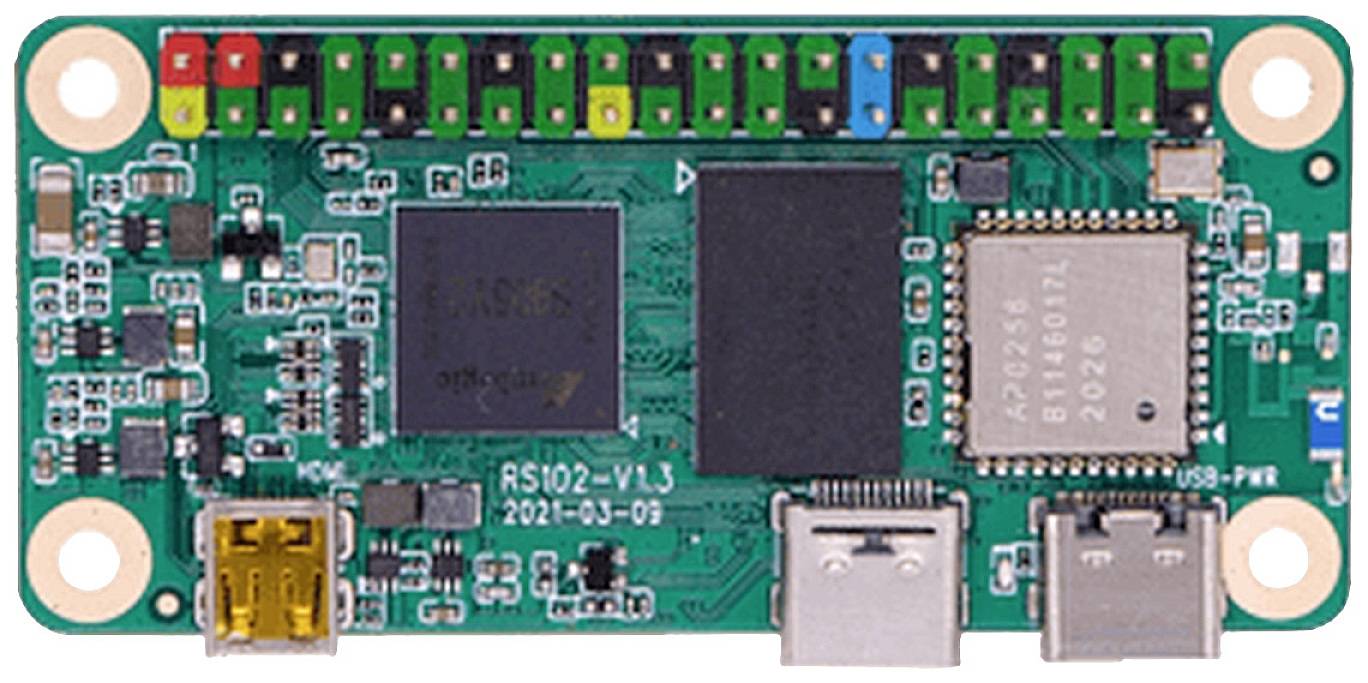

A small, rectangular electronic module with multiple interfaces and a USB port, likely for computer applications.

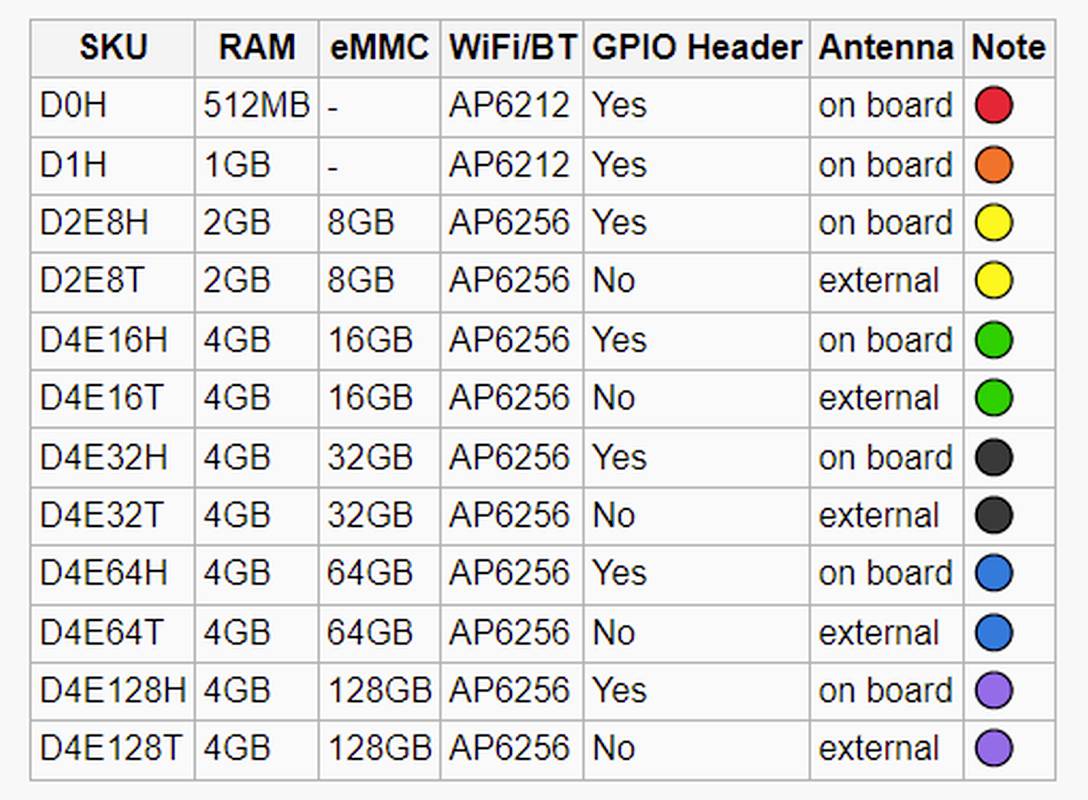

'Table shows SKU, RAM, eMMC, WiFi/BT, GPIO Header, Antenna and Note. Differences in memory, WiFi module and antenna type are highlighted.'
1/5
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • IO 40-pin header :1x UART- 2 x SPI bus- 2 x I2C bus- 1 x PCM/I2S- 1 x SPDIF- 1 x PWM- 1 x ADC- 6 x GPIO- 2 x 5V DC power in- 2 x 3.3V power pin
Product type

SBC

Type

Radxa Zero

SoC

Amlogic S905Y2

Processor

ARM Cortex-A53

Processor cores (No.)

4 x

GPU

Mali G31 MP2

4 GB

Clock speed

1.8 GHz

Memory type

eMMC

Operating system (Version)

w/o OS

Memory capacity

16 GB

Internal ports

GPIO (40-pin)

External ports

USB 2.0

USB 3.0

HDMI™

Wi-Fi

b/g/n/ac

Bluetooth

5.0

Power supply (LOV)

via USB

Output voltage

5 V

Output current

1 A

Length

66 mm

Width

30.5 mm

Height

5 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2530836 Radxa RS102-D4E16T Radxa Zero 4 GB 4 x 1.8 GHz

Description

Quad-core power with up to 4GB LPDDR4 RAM in the dimensions of a USB stick.
