Radxa RS114CP-D4 Rock 4 C+ 4 GB 6 x 2.4 GHz

A green circuit board with various chips and ports, including USB and HDMI connections. This is a single-board computer.
A green printed circuit board module with multiple connections, ports and a large central chip. It appears to be a single-board computer.

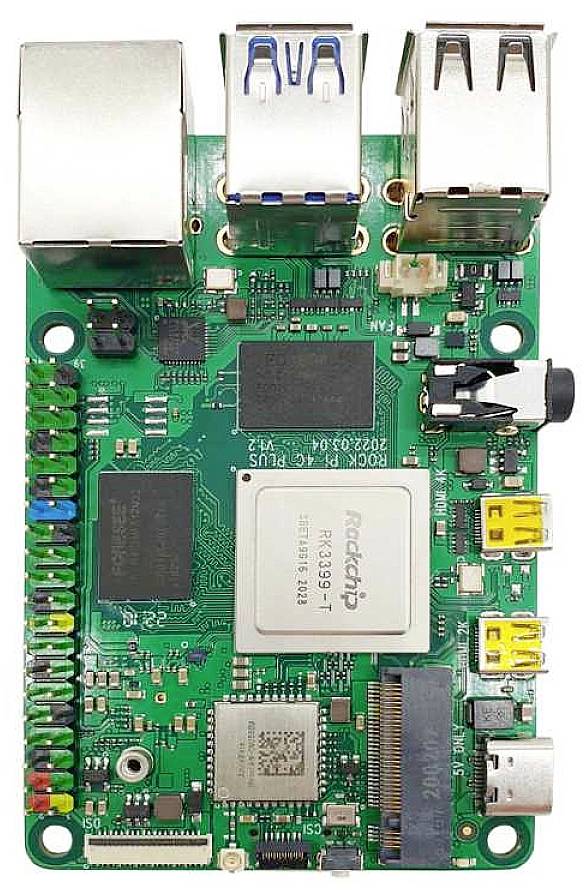

A green single-board computer circuit board with various ports and chips. Contains USB ports and an Ethernet interface.

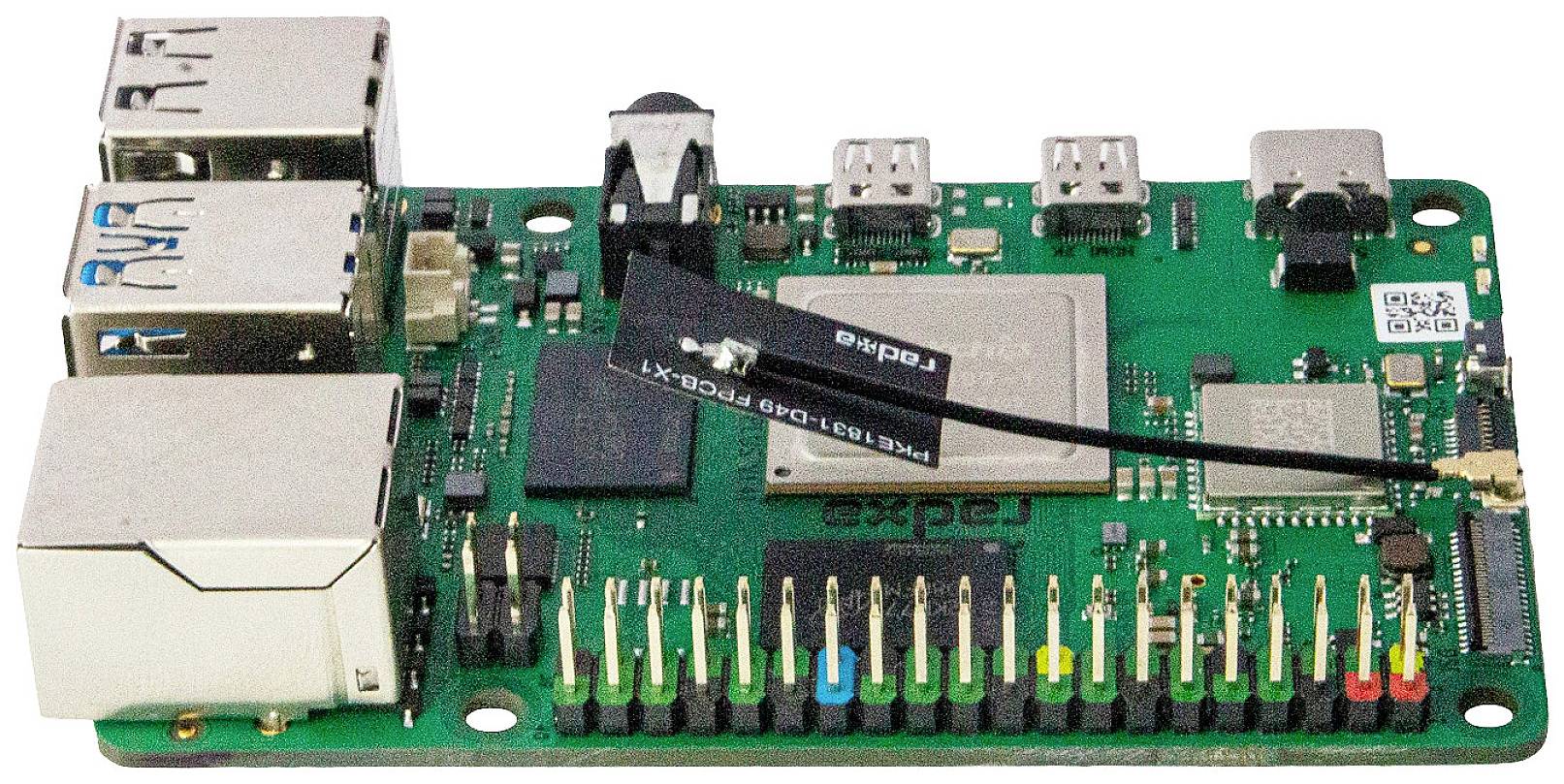

A green circuit board with various connections, including multiple USB ports and Ethernet sockets, typical of a single-board computer.
On the packaging it says 'ROCK 4 C+ Single Board Computer' by Okdo and Radxa. A diagram of the computer is shown.

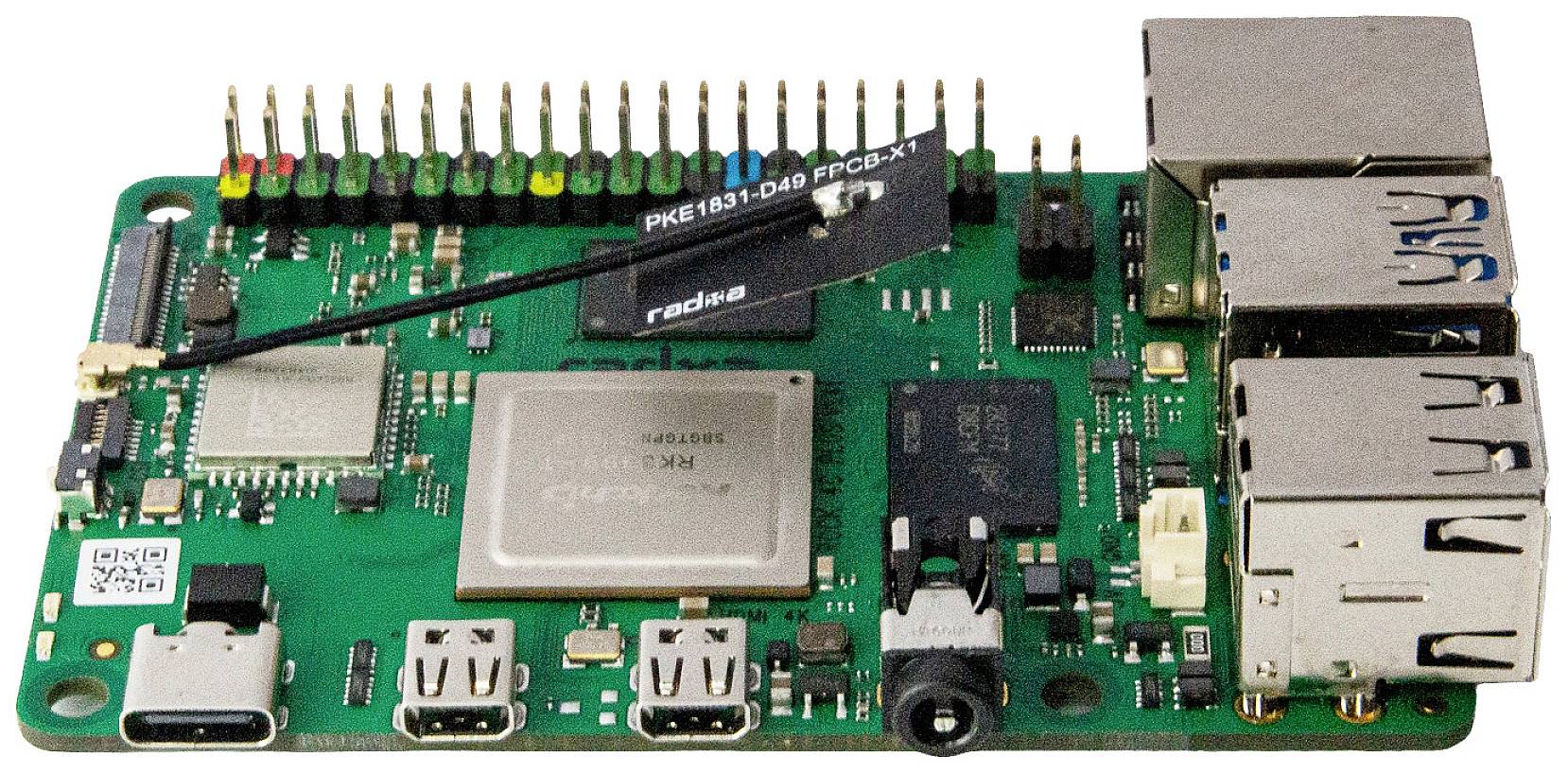

Camera board with multiple ports and a large main chip in the centre, including USB and Ethernet ports.
1/6
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Product type

SBC

Type

Rock 4 C+

SoC

Rockchip RK3399T

Processor

ARM Cortex-A72

ARM Cortex-A53

Processor cores (No.)

6 x

GPU

Mali T860MP4

4 GB

Clock speed

2.4 GHz

Memory type

DDR4

Operating system (Version)

w/o OS

Memory capacity

4 GB

Internal ports

CSI (camera)

DSI (display)

GPIO (40-pin)

sMMC

External ports

2x USB 2.0

2x USB 3.0

LAN (10/100/1000)

2x HDMI™

3.5 mm jack

micro SD

USB-C® (current)

Wi-Fi

b/g/n/ac

Bluetooth

5.0

Power supply (LOV)

via USB

Output voltage

9 V DC

Output current

2 A

Length

85 mm

Width

56 mm

Height

17 mm

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2627030 Radxa RS114CP-D4 Rock 4 C+ 4 GB 6 x 2.4 GHz

User & Safety Instructions

User & Safety Instructions 2627030 Radxa RS114CP-D4 Rock 4 C+ 4 GB 6 x 2.4 GHz

Description

With its small form factor, double screen, outstanding design and performance, it is the perfect choice for your private or business projects.

Features

  • dual Cortex-A72, frequency 1.5GHz with quad Cortex-A53, frequency 1.4GhzMali T860MP4 gpu, supports OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11.64bit dual channel LPDDR4@3200Mb/s, 4GBDisplay HDMIMicro HDMI 2.0 up to 4K@60 (Type D), H. 265/VP9 (HEVC) hardware decodeMicro HDMI 2.0 up to 2k@60 (Type D), H.264 hardware decode4K@60(Type D)M.2 SSDM.2 (B) 2230 up to 2T M.2 NVME SSD via PCIe 2.0 x4 interface

What kind of Single Board Computers (SBCs) are you looking for?

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
