Buy Rautronic 32171401 Strand UL 1569 Brown 610 m | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

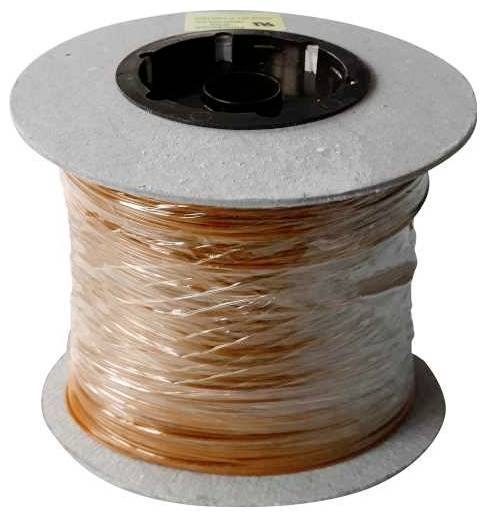

A large spool of copper wire wrapped in transparent plastic, with dark central hub on top, against a plain white background.

A large spool of copper wire wrapped in transparent plastic, with dark central hub on top, against a plain white background.

Rautronic

Product type

Strand

No. of leads

1 x

Cable type

UL 1569

Outside Ø

1.3 mm

Content

610 m

Datasheet (PDF)

Part number:

Item no:

Dispatches on Mon 9 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (1 m = € 0.32)

€ 194.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Strand

No. of leads: 1 x

Content: 610 m

Insulation material: PVC

Cable features: UL-approved

Cable type: UL 1569

Outside Ø: 1.3 mm

Nominal voltage: 300 V

AWG max.: 26

AWG (min.): 26

Packaged: No

Halogen-free: No

Manufacturer part #: 32171401

Factory colour: Brown

Core layout: 7 x 0.16 mm

Core layout: 7 x 0.16 mm

Material (details): Copper tin-plated

Max. length sold by the metre: 610 m

Sold per metre: Yes

Test voltage: 3 kV

RoHS-compliant: Yes

Max. temperature range (flexible installation): 105 °C

Min. temperature range (flexible installation): -5 °C

Max. temperature range (fixed installation): 105 °C

Min. temperature range (fixed installation): -30 °C

Type: UL STYLE 1007 AWG 26 BRAUN

Standards: Underwriters Laboratories Inc. (UL)

Documents & Downloads

Datasheet

Datasheet 3728548 Rautronic 32171401 Strand UL 1569 Brown 610 m

User & Safety Instructions

User & Safety Instructions 3728548 Rautronic 32171401 Strand UL 1569 Brown 610 m

Description

610 meter = 2000 feet, stranded wire, UL STYLE 1007 AWG 26 BROWN, N.A. UL-approved Shells according to UL AWM Style 1007/1569, inter alia for internal wiring of equipment and control cabinets. Conductor: Copper flex, tinned, conductor structure: 7 x 0.16 mm, insulation: Special PVC, shore hardness (A) 88 ±3, flame resistant according to UL VW-1/CSA FT-1 and IEC 60332-1-2. Conductor resistance: 135 Ω/km at 20° C, electrical strength: Min. 3000 V/50 Hz (1 min.), insulation resistance: Min. 100 MΩ x km, operating voltage: Max. 300 V. Temperature range non-heating/moving: -30 to 105 °C (UL/CSA 90° C)/-10 to 105 °C (UL/CSA 90° C).

This text is machine translated.

Description

610 meter = 2000 feet, stranded wire, UL STYLE 1007 AWG 26 BROWN, N.A. UL-approved Shells according to UL AWM Style 1007/1569, inter alia for internal wiring of equipment and control cabinets. Conductor: Copper flex, tinned, conductor structure: 7 x 0.16 mm, insulation: Special PVC, shore hardness (A) 88 ±3, flame resistant according to UL VW-1/CSA FT-1 and IEC 60332-1-2. Conductor resistance: 135 Ω/km at 20° C, electrical strength: Min. 3000 V/50 Hz (1 min.), insulation resistance: Min. 100 MΩ x km, operating voltage: Max. 300 V. Temperature range non-heating/moving: -30 to 105 °C (UL/CSA 90° C)/-10 to 105 °C (UL/CSA 90° C).

This text is machine translated.
