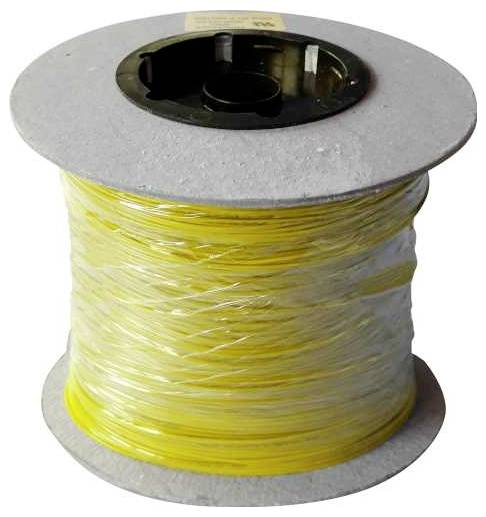

Rautronic 32171403 Strand Yellow 610 m
Part number:
Item no:
Product type
Strand
No. of leads
1 x
Outside Ø
1.3 mm
Content
610 m
Insulation material
PVC
Datasheet (PDF)
Number
Total (1 m = € 0.27)
€ 163.86
plus VAT.
Technical specifications
- Product type
Strand
- No. of leads
1 x
- Content
610 m
- Insulation material
PVC
- Cable features
UL-approved
- Outside Ø
1.3 mm
- Nominal voltage
300 V
- AWG max.
26
- AWG (min.)
26
- Halogen-free
No
- Manufacturer part #
32171403
- Factory colour
Yellow
- Core layout
7 x 0.16 mm
- Core layout
7 x 0.16 mm
- Material (details)
Copper tin-plated
- Max. length sold by the metre
610 m
- Sold per metre
Yes
- Test voltage
3 kV
- RoHS-compliant
Yes
- Max. temperature range (flexible installation)
105 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (fixed installation)
105 °C
- Min. temperature range (fixed installation)
-30 °C
- Type
UL STYLE 1007 AWG 26 GELB
- Standards
Underwriters Laboratories Inc. (UL)
Documents & Downloads
Datasheet
Datasheet 3728550 Rautronic 32171403 Strand Yellow 610 m
User & Safety Instructions
User & Safety Instructions 3728550 Rautronic 32171403 Strand Yellow 610 m
Description
610 meter = 2000 feet, stranded wire, UL STYLE 1007 AWG 26 YELLOW, N.A. UL-approved Shells according to UL AWM Style 1007/1569, inter alia for internal wiring of equipment and control cabinets. Conductor: Copper flex, tinned, conductor structure: 7 x 0.16 mm, insulation: Special PVC, shore hardness (A) 88 ±3, flame resistant according to UL VW-1/CSA FT-1 and IEC 60332-1-2. Conductor resistance: 135 Ω/km at 20° C, electrical strength: Min. 3000 V/50 Hz (1 min.), insulation resistance: Min. 100 MΩ x km, operating voltage: Max. 300 V. Temperature range non-heating/moving: -30 to 105 °C (UL/CSA 90° C)/-10 to 105 °C (UL/CSA 90° C).
This text is machine translated.
