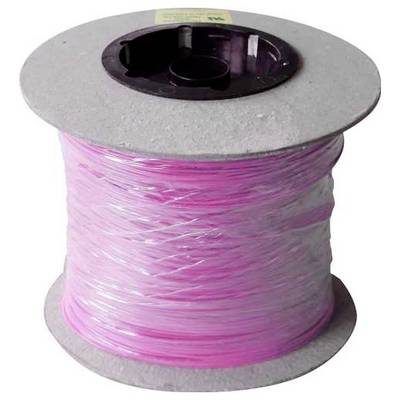

A spool of pink and clear braided filament, used for 3D printing.

A spool of pink and clear braided filament, used for 3D printing.

Rautronic

Product type

Strand

No. of leads

1 x

Outside Ø

1.9 mm

Content

305 m

Insulation material

PVC

Datasheet (PDF)

Part number:

Item no:

Dispatches on Mon 9 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (1 m = € 0.49)

€ 149.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Strand

No. of leads: 1 x

Content: 305 m

Insulation material: PVC

Cable features: UL-approved

Outside Ø: 1.9 mm

Nominal voltage: 300 V

AWG max.: 20

AWG (min.): 20

Halogen-free: No

Manufacturer part #: 32176605

Factory colour: Rose

Core layout: 18 x 0.2 mm

Core layout: 18 x 0.2 mm

Material (details): Copper tin-plated

Max. length sold by the metre: 305 m

Sold per metre: Yes

Test voltage: 3 kV

RoHS-compliant: Yes

Max. temperature range (flexible installation): 105 °C

Min. temperature range (flexible installation): -5 °C

Max. temperature range (fixed installation): 105 °C

Min. temperature range (fixed installation): -30 °C

Type: UL STYLE 1007 AWG 20 ROSA

Standards: Underwriters Laboratories Inc. (UL)
Canadian Standards Association (CSA)

Documents & Downloads

Datasheet

Datasheet 3728579 Rautronic 32176605 Strand Rose 305 m

User & Safety Instructions

User & Safety Instructions 3728579 Rautronic 32176605 Strand Rose 305 m

Description

305 meter = 1000 feet, stranded wire, UL STYLE 1007 AWG 20 PINK, N.A. UL-approved Shells according to UL AWM Style 1007/1569, inter alia for internal wiring of equipment and control cabinets. Conductor: Copper flex, tinned, conductor structure: 18 x 0.2 mm, insulation: Special PVC, shore hardness (A) 88 ±3, flame resistant according to UL VW-1/CSA FT-1 and IEC 60332-1-2. Conductor resistance: 35.4 Ω/km at 20° C, electrical strength: Min. 3000 V/50 Hz (1 min.), insulation resistance: Min. 100 MΩ x km, operating voltage: Max. 300 V. Temperature range non-heating/moving: -30 to 105 °C (UL/CSA 90° C)/-10 to 105 °C (UL/CSA 90° C).

This text is machine translated.

Description

305 meter = 1000 feet, stranded wire, UL STYLE 1007 AWG 20 PINK, N.A. UL-approved Shells according to UL AWM Style 1007/1569, inter alia for internal wiring of equipment and control cabinets. Conductor: Copper flex, tinned, conductor structure: 18 x 0.2 mm, insulation: Special PVC, shore hardness (A) 88 ±3, flame resistant according to UL VW-1/CSA FT-1 and IEC 60332-1-2. Conductor resistance: 35.4 Ω/km at 20° C, electrical strength: Min. 3000 V/50 Hz (1 min.), insulation resistance: Min. 100 MΩ x km, operating voltage: Max. 300 V. Temperature range non-heating/moving: -30 to 105 °C (UL/CSA 90° C)/-10 to 105 °C (UL/CSA 90° C).

This text is machine translated.
