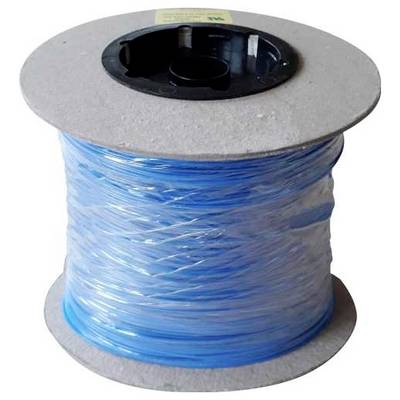

Rautronic 32176706 Strand 1 x 0.25 mm Blue 610 m
Part number:
Item no:
Product type
Strand
No. of leads
1 x
Cross section (each core)
0.25 mm
Outside Ø
1.65 mm
Content
610 m
Datasheet (PDF)
Number
Total (1 m = € 0.33)
€ 201.67
plus VAT.
Technical specifications
- Product type
Strand
- No. of leads
1 x
- Content
610 m
- Cross section (each core)
0.25 mm
- Insulation material
PVC
- Cable features
UL-approved
- No. of leads (part 2)
7 x
- Outside Ø
1.65 mm
- Nominal voltage
300 V
- AWG max.
22
- AWG (min.)
22
- Packaged
Yes
- Halogen-free
No
- Manufacturer part #
32176706
- Factory colour
Blue
- Core layout
7 x 0.25 mm
- Material (details)
Copper tin-plated
- Max. length sold by the metre
610 m
- Sold per metre
No
- Test voltage
3 kV
- Cross section
1 x 0.25 mm
- RoHS-compliant
Yes
- Max. temperature range (flexible installation)
105 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (fixed installation)
105 °C
- Min. temperature range (fixed installation)
-30 °C
- Type
UL STYLE 1007 AWG 22 BLAU
- Standards
Underwriters Laboratories Inc. (UL)
Documents & Downloads
Datasheet
Datasheet 3728569 Rautronic 32176706 Strand 1 x 0.25 mm Blue 610 m
User & Safety Instructions
User & Safety Instructions 3728569 Rautronic 32176706 Strand 1 x 0.25 mm Blue 610 m
Description
610 meter = 2000 feet, stranded wire, UL STYLE 1007 AWG 22 BLUE, N.A. UL-approved Shells according to UL AWM Style 1007/1569, inter alia for internal wiring of equipment and control cabinets. Conductor: Copper flex, tinned, conductor structure: 7 x 0.25 mm, insulation: Special PVC, shore hardness (A) 88 ±3, flame resistant according to UL VW-1/CSA FT-1 and IEC 60332-1-2. Conductor resistance: 53 Ω/km at 20° C, electrical strength: Min. 3000 V/50 Hz (1 min.), insulation resistance: Min. 100 MΩ x km, operating voltage: Max. 300 V. Temperature range non-heating/moving: -30 to 105 °C (UL/CSA 90° C)/-10 to 105 °C (UL/CSA 90° C).
