Buy Rautronic 35171210 Strand Orange 915 m | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

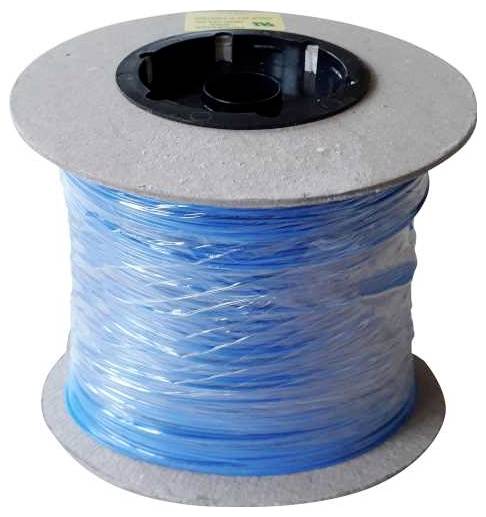

A large spool of blue and clear plastic filament, wound neatly around a black core, used for 3D printing.

A large spool of blue and clear plastic filament, wound neatly around a black core, used for 3D printing.

Rautronic

Product type

Strand

No. of leads

1 x

Outside Ø

0.9 mm

Content

915 m

Insulation material

PVC

Datasheet (PDF)

Part number:

Item no:

Dispatches on Mon 9 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (1 m = € 0.24)

€ 219.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Strand

No. of leads: 1 x

Content: 915 m

Insulation material: PVC

Cable features: UL-approved

Outside Ø: 0.9 mm

Nominal voltage: 300 V

AWG max.: 28

AWG (min.): 28

Packaged: Yes

Halogen-free: No

Manufacturer part #: 35171210

Factory colour: Orange

Core layout: 7 x 0.127 mm

Core layout: 7 x 0.127 mm

Material (details): Copper tin-plated

Max. length sold by the metre: 915 m

Sold per metre: No

Test voltage: 1.5 kV

RoHS-compliant: Yes

Max. temperature range (flexible installation): 105 °C

Min. temperature range (flexible installation): -10 °C

Max. temperature range (fixed installation): 105 °C

Min. temperature range (fixed installation): -20 °C

Type: UL STYLE 1061 AWG 28 ORANGE

Standards: Underwriters Laboratories Inc. (UL)

Documents & Downloads

Datasheet

Datasheet 3728588 Rautronic 35171210 Strand Orange 915 m

User & Safety Instructions

User & Safety Instructions 3728588 Rautronic 35171210 Strand Orange 915 m

Description

915 meter = 3000 feet, stranded wire, UL STYLE 1061 AWG 28 ORANGE, N.A. UL-approved Shells according to UL AWM Style 1061/10002, inter alia for internal wiring of equipment and control cabinets. Conductor: Copper flex, tinned, conductor structure: 7 x 0.127 mm, insulation: Special PVC, shore hardness (A) 96 ±3, flame resistant according to UL VW-1/CSA FT-1. Conductor resistance: 215 Ω/km at 20° C, electrical strength: Min. 1500 V/50 Hz (1 min.), insulation resistance: Min. 20 MΩ x km, operating voltage: Max. 300 V. Temperature range static/moving: -20 to 105 °C/-10 to 105 °C.

This text is machine translated.

Description

915 meter = 3000 feet, stranded wire, UL STYLE 1061 AWG 28 ORANGE, N.A. UL-approved Shells according to UL AWM Style 1061/10002, inter alia for internal wiring of equipment and control cabinets. Conductor: Copper flex, tinned, conductor structure: 7 x 0.127 mm, insulation: Special PVC, shore hardness (A) 96 ±3, flame resistant according to UL VW-1/CSA FT-1. Conductor resistance: 215 Ω/km at 20° C, electrical strength: Min. 1500 V/50 Hz (1 min.), insulation resistance: Min. 20 MΩ x km, operating voltage: Max. 300 V. Temperature range static/moving: -20 to 105 °C/-10 to 105 °C.

This text is machine translated.
