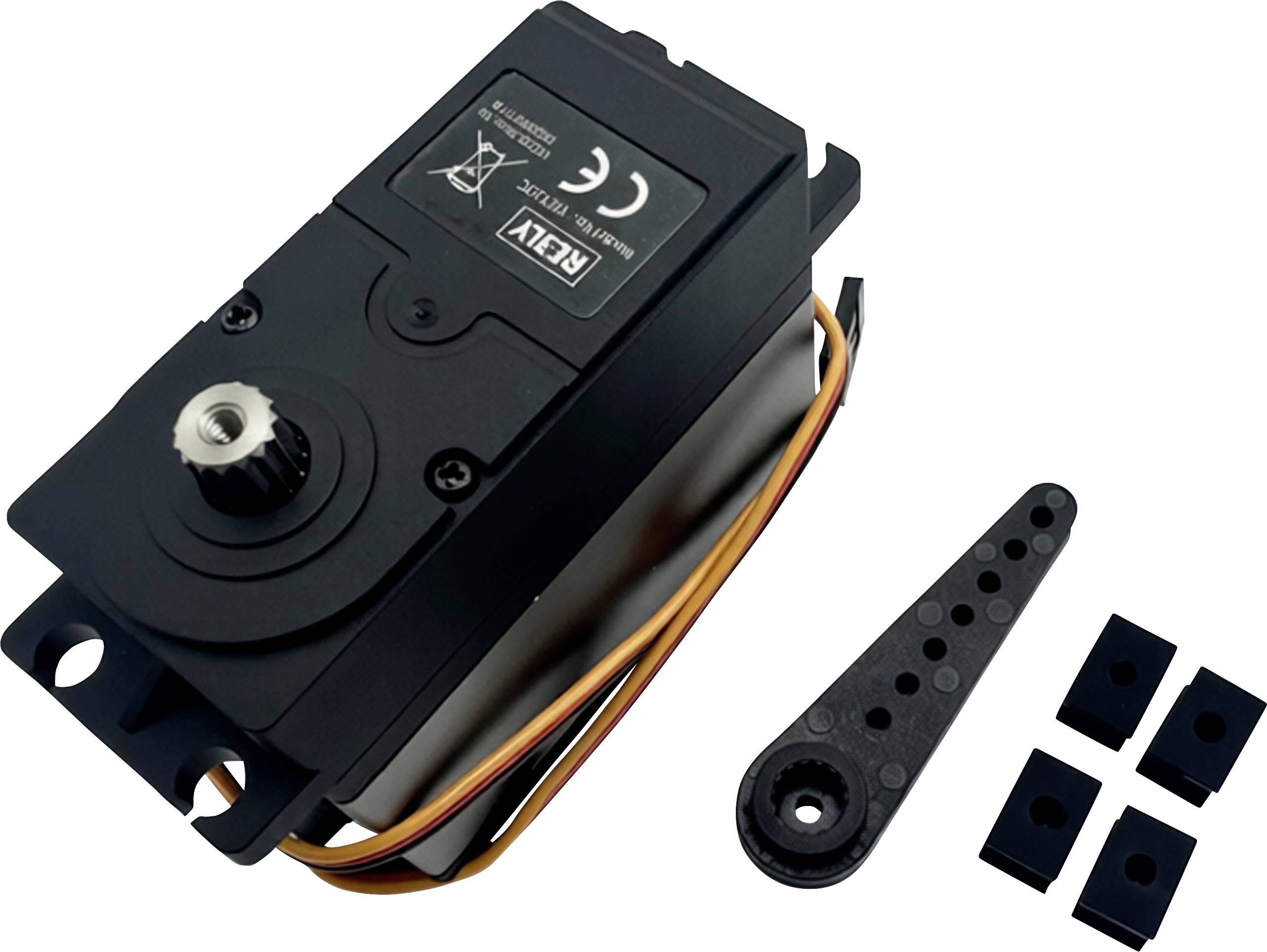

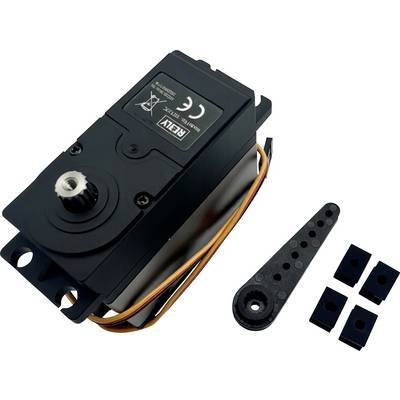

Reely RE-11059002 Spare part Steering servo
EAN:
Part number:
Item no:
Number
Total (€ 84.03 / piece)
€ 84.03
plus VAT.
Technical specifications
- Operating voltage 6.0 ~ 8.4 V DC
- Nominal voltage: 7.4 V/DC
- Rated torque 1.72 Nm
- Idle current ≤ 220 mA
- Setting time without load: ≤ 0.14 sec./60°
- Nominal current 2.5 A
- Nominal actuating speed 0.185 sec/60°
- Stall current ≤ 10.5 A
- Blocking-torque: ≥ 6.86 Nm
- Pulse width range 500 ~ 2500 μs
- Operating angle 180°
- Mechanical end stop 210°
- PA + CNC aluminum center section
- Gear material: Metal
- Core engine type
- Connector: JR / 3-pin
- Cable length approx. 300 mm
- Suitable for
1:6 Buggy Carbon Fighter ARR
1:6 Buggy Carbon Fighter Pro RtR
1:6 Buggy Carbon Fighter RtR
1:6 Buggy Carbon Fighter III RtR
- Intended use
Spare part
- Dim
(L x W x H) 81.76 x 30 x 63.1 mm
- Content
1 pc(s)
- Manufacturer part #
RE-11059002
- Height
63.1 mm
- Length
81.76 mm
- Width
30 mm
- for brands
Reely
- Model craft type
Buggy
- Scale
1:6
- Spare part type
Steering servo
- Plastic free packaging
Plastic-free packaging
- Product type
Spare part
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3686334 Reely RE-11059002 Spare part Steering servo
Description
Reely OEM spare part.
Scope of delivery
- steering servo
- This text is machine translated.
