Name: Rigol MHO98 Digital 1 GHz 4 GS/s 500 MP 12 Bit 1 pc(s)
Brand: Rigol
SKU: 3553773
Availability: SoldOut

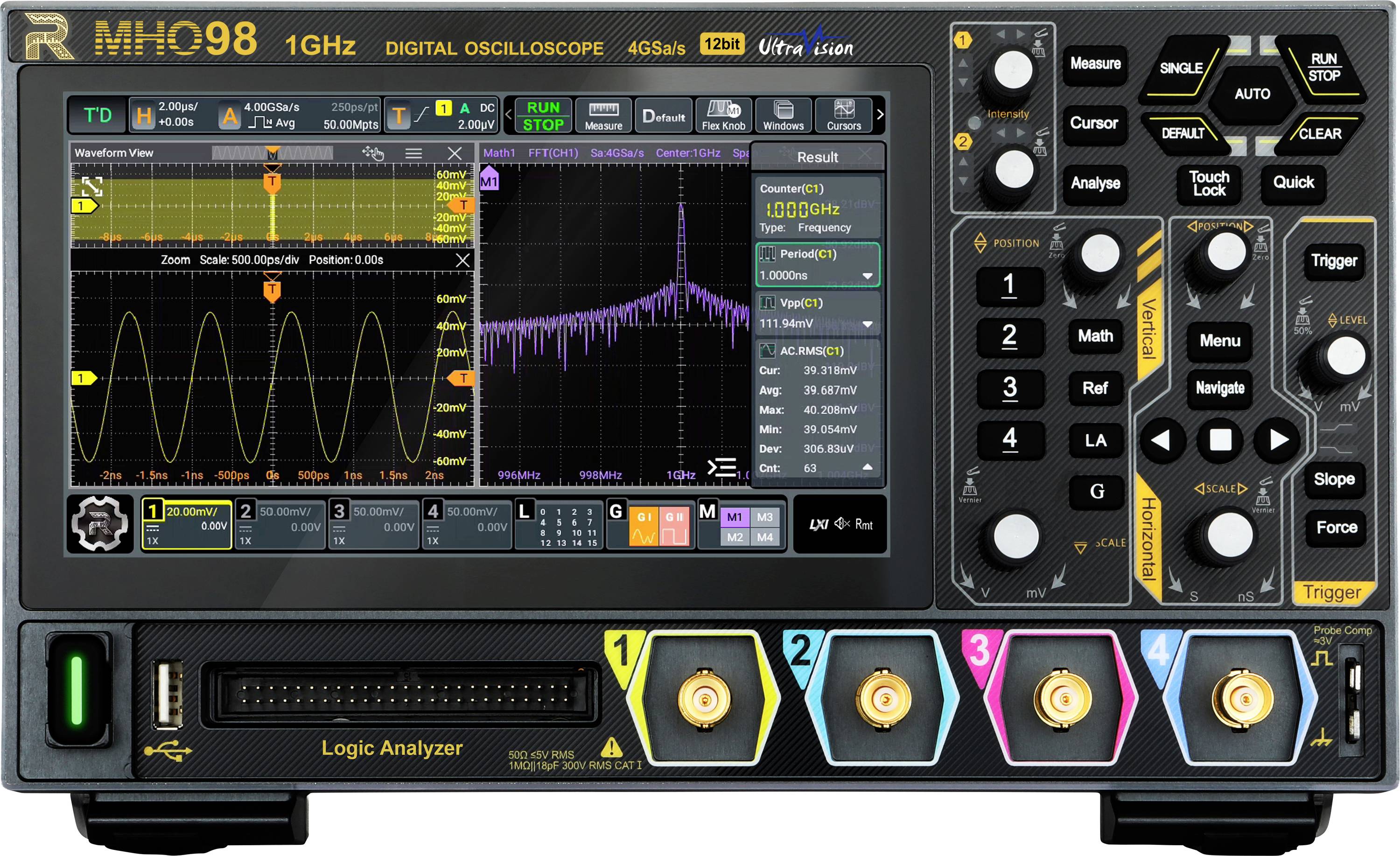

A digital oscilloscope displaying waveform data on a screen, with various control buttons and four input channels labeled 1 to 4.

Digital oscilloscope with a colorful display showing waveform signals and analyzer controls. Various knobs and buttons for adjustments.

Side view of a black audio or recording device with multiple knobs and input ports on the side, showcasing its compact design.

A digital oscilloscope labeled 'MH098 1GHz' showing waveforms and measurements on its screen, with various control knobs and ports.

Back view of a Rigol electronic device featuring multiple ports labeled as AUX OUT, GPIB, LAN, USB DEVICE, HDMI, and USB HOST.

Side view of a metal and black electronic device with buttons and a transparent component, possibly a thermostat or control panel.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,749.00 / piece)

€ 1,749.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

MHO98 Special Edition - High-resolution digital oscilloscope

1 GHz
No. of analogue inputs 4

Technical specifications

Trigger types Standard: Edge, pulse, edge steepness, video, pattern, Duration, timeout, runt, window, delay, Setup/Hold, N-te edge trigger
Serial decoding standard: Parallel, RS232/UART, I2C, SPI, LIN, CAN, CAN-FD, FLEXRAY, I2S, MIL-STD-1553B
Interfaces: HDMI, LAN (100M, LXI-C support), USB 2.0 host & device
Power consumption 70 W (typical)
Input voltage DC 20 V, 5 A (via USB Type-C interface)

Product type: Digital

Bandwidth: 1 GHz

Channel sample rate: 4 GS/s

Displays: 7 inch capacitive multi touch screen

Resolution: 12 Bit

Screen size: 7 inch

Time base: 500 ps/div to 500 s/div

No. of analogue inputs: 4

: Manufacturer's standards (no certificate)

Reading category: CAT I

Input impedance: 1 MΩ

Input coupling: DC, AC OR GND

Power supply (details): 20 V DC

Dim: (L x W x H) 77.38 x 265.35 x 161.75 mm

Weight: 1.6 kg

No. of digital inputs (max.): 16

Display: 1024 x 600 p

Width: 265.35 mm

Height: 161.75 mm

Length: 77.38 mm

Interfaces: LAN
USB device
HDMI
USB-C
USB host

Channel memory depth: 500 MP

Type: MHO98

Documents & Downloads

Datasheet

Datasheet 3553773 Rigol MHO98 Digital 1 GHz 4 GS/s 500 MP 12 Bit 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553773 Rigol MHO98 Digital 1 GHz 4 GS/s 500 MP 12 Bit 1 pc(s)

Description

Exclusive gold badge – a symbol of your passion: A limited, 24-karat gold-plated badge with engraved, individual serial number.
Masterly design - Beauty inner as well as exterior: A high-quality metal housing, a deep-looking 3D PC Twill embossing and finely tuned metal buttons.
Full equipment, maximum power – the ultimate experience for enthusiasts
