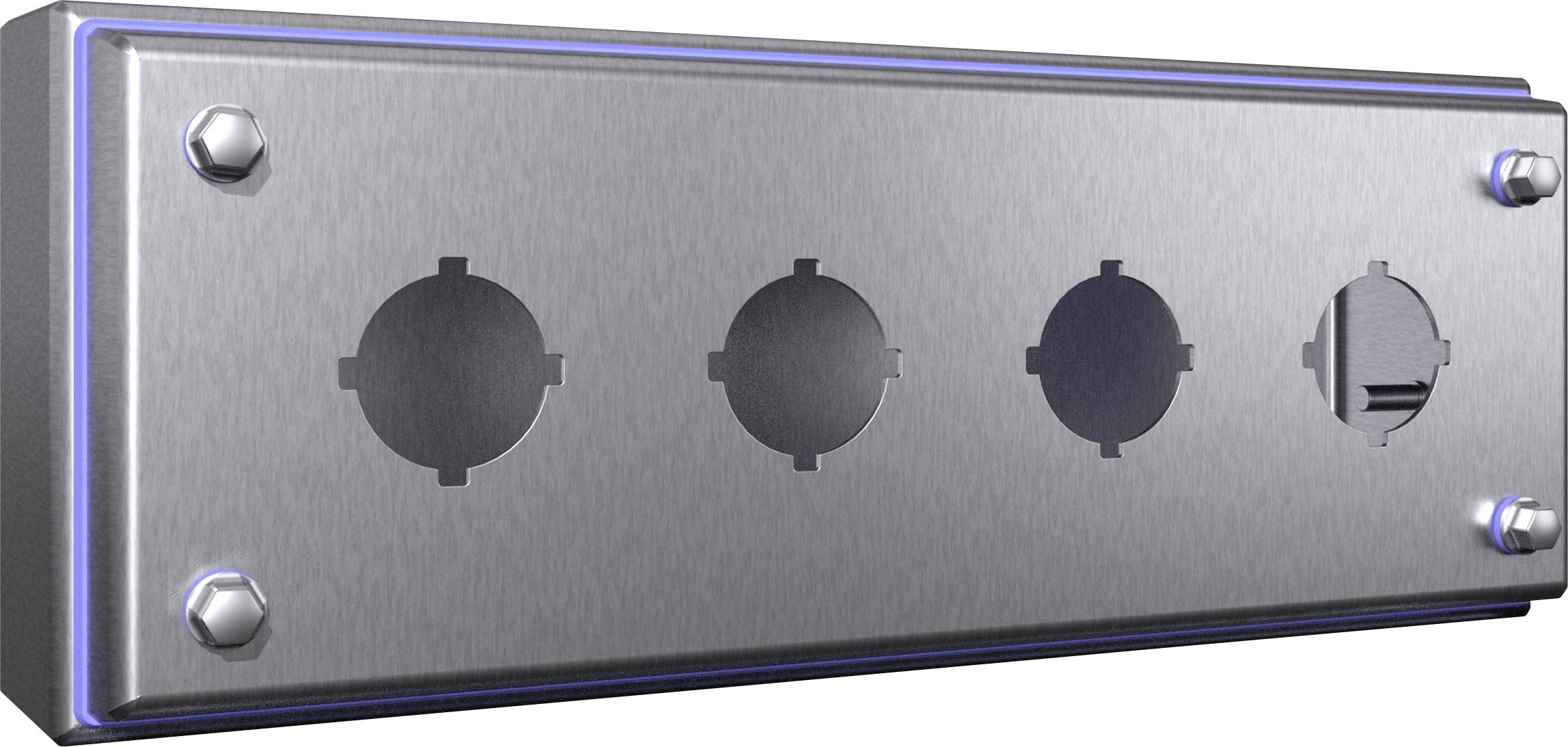

Rittal HD 1684.630 1684630 Housing Hex (L x W x H) 302 x 122 x 90 mm 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 219.99 / piece)
€ 219.99
incl. VAT
14-day return policy included
Technical specifications
- Material: Housing and cover: Stainless steel 1.4301 (AISI 304) 1.5 mm
- Locking screw: Stainless steel
- Sealing: Silicone, compliant with FDA directive 21 CFR 177.2600
- Net weight: 1.9 kg
- Gross weight: 1.99 kg
- Surface: Housing and cover: Line grinding, grain size 400, roughing depth < 0.8 µm
- Seal: Blue-colored (RAL 5010)
- Dimensions: Front width 100 mm
- Rear width 122 mm
- Height front 280 mm
- Height at rear 302 mm
- Depth: 90 mm
- IK code: IK08
- Base material: Stainless steel 1.4301 (AISI 304)
- Design: Hygienic design housing
- Seal: Design seal: Hygienic hexagon quick release fastener
- Number of closures: 4
- Contact spacing: 60 mm
- Outbreaks (number x Ø): 4 x 30.5 mm
- NEMA 1 protection
- NEMA 3
- NEMA 3X
- NEMA 4
- NEMA 4X
- NEMA 12
- NEMA 13
- Protection class IP according to IEC 60 529:IP 66
- IP X9
- Product type
Housing
- Switch/button features
Hex
- Type
4 Button section Ø 30.5 mm
- Material
Stainless steel
Silicone
- Recess diameter
30.5 mm
- Connection
Quick-connect
- Length
302 mm
- Width
122 mm
- Height
90 mm
- Dim
(L x W x H) 302 x 122 x 90 mm
IP66
IPX9
- Content
1 pc(s)
- Type
HD 1684.630
- Weight
0.000
Surface mounted (plaster)
Other
302 mm
90 mm
Other
FALSE
FALSE
TRUE
122 mm
FALSE
Other
None
Stainless steel
FALSE
Screwed
IP66
None
None
4X
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386772 Rittal HD 1684.630 1684630 Housing Hex (L x W x H) 302 x 122 x 90 mm 1 pc(s)
Description
HD Button housing, BHT:100x280x90 mm, stainless steel, 1.4301, 4 button section, Ø 30.5 mm
Housing solution with an outbreak for pushbutton, adapted to the requirements of the food and beverage industry. All around gap-free silicone seal between housing and cover. Hygienic hexagonal quick-locking closure.
This text is machine translated.
Housing solution with an outbreak for pushbutton, adapted to the requirements of the food and beverage industry. All around gap-free silicone seal between housing and cover. Hygienic hexagonal quick-locking closure.
This text is machine translated.
