Rittal SV 9666.603 Busbar module 1 pc(s)
EAN:
Part number:
Item no:
Product type
Busbar module
Material
Polystyrene
Factory colour
Light grey
Weight
2.88 kg
Width
750 mm
Datasheet (PDF)
34 Piece(s)
Sales and shipping:
Number
Total (€ 92.43 / piece)
€
Technical specifications
- Size: wide units (BE) à 250 mm: 3, height units (HE) à 150 mm 2
- Product type
Busbar module
- Material
Polystyrene
- Factory colour
Light grey
- Weight
2.88 kg
- Width
750 mm
- Height
300 mm
- Dim
(W x H) 750 mm x 300 mm
- Content
1 pc(s)
- Type
SV 9666.603
- RoHS-compliant
Yes
750
300 mm
100 mm
3
Documents & Downloads
Datasheet
Datasheet 1397880 Rittal SV 9666.603 Busbar module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1397880 Rittal SV 9666.603 Busbar module 1 pc(s)

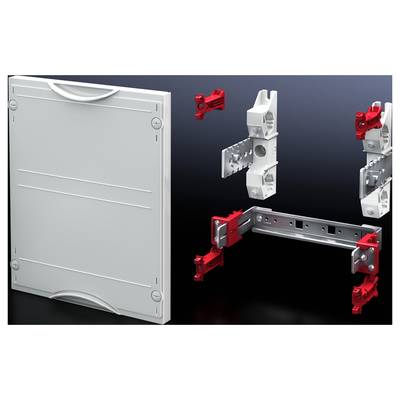

Description
For the attachment of BUSBARS 12 x 5/10 mm, 20x 5/10 mm, 30 x 5/10 mm for N and PE. Cover lead-sealable.
This text is machine translated.
This text is machine translated.
Hints
Busbars are not included in the delivery
Not included in the installation kit AE can be used
