Name: Rittal TX 7888.822 19" server rack cabinet (W x H x D) 800 x 2000 x 1200 mm 42 U Grey (RAL 7035)
Brand: Rittal
SKU: 3389231

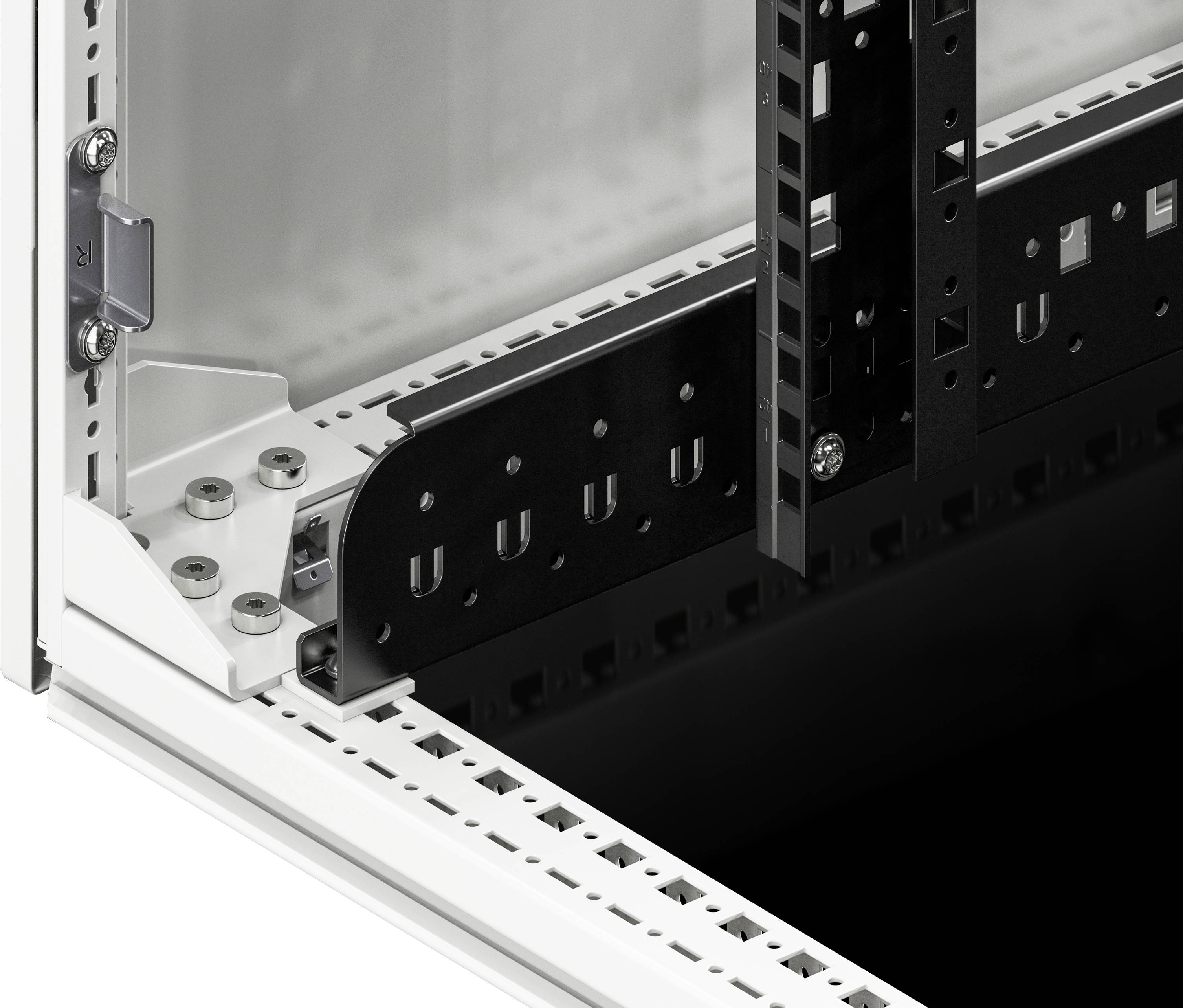

Interior view of a metal enclosure with a sturdy mounting frame and screws securing a reinforcement in the corner.

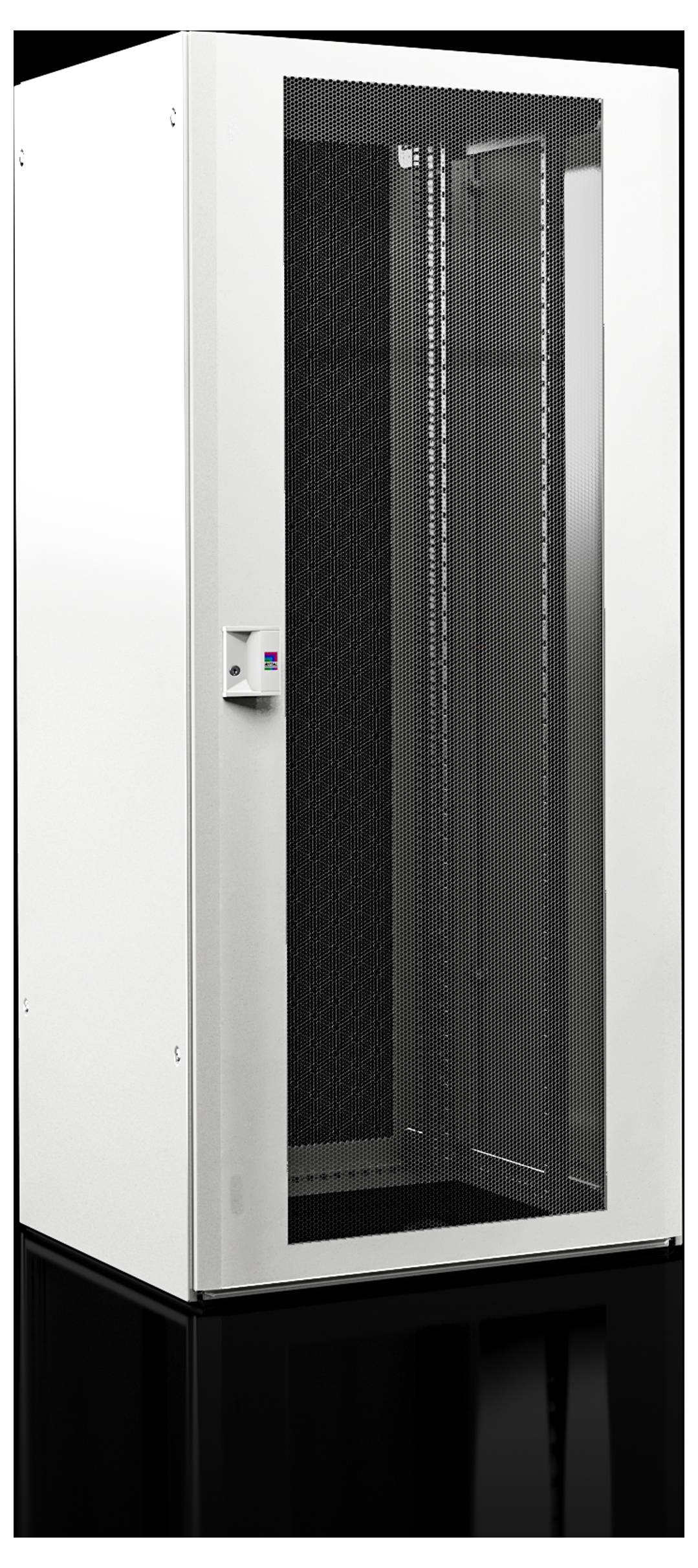

A white server cabinet with a glass door and visible rack shelves.

1/2

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Material: Roof: Sheet steel, 1.5 mm
Cabinet framework: Steel sheet, 1.5 mm
Door: Steel sheet, 1.2 mm
Side panel: Steel sheet, 1.2 mm
19" profile rails: Steel sheet, 2 mm
Net weight: 134 kg
Gross weight: 144 kg
Surface: Cabinet scaffold: Dip-primed
Flat parts: Dip-primed, powder coated
Dimensions: Width 800 mm
Height: 1.8" (2,000 mm)
Depth: 1,200 mm
Capacity 500 kg (static
Benefit: New roof sheet concept: Complete use of the depth of the cabling as well as possible integration of a fan module
Efficient framework concept for individual expansion
Side walls screwed down for quick access
19"-profile rails, adjustable in width and depth as well as the possibility of an interior fittings with an unbalanced bearing
Colour RAL 7035
Load capacity: 5000 N
Base material: Steel sheet
Height units 42 HE
Level distance (supplied): 725 mm
Rear door design: Sheet steel door, one piece ventilated
Front door design: Sheet steel door, one piece ventilated
Free area in the perforated plate portion approx. 78 %
Design: With side walls
Door version: Ventilated

Product type: 19" server rack cabinet

Rack unit: 42 U

Width: 800 mm

Height: 2000 mm

Depth: 1200 mm

Material: Steel plate

Dim: (W x H x D) 800 x 2000 x 1200 mm

Weight: 134 kg

Factory colour: Grey (RAL 7035)

Rack size: 483 mm (19")

Type: With side walls

: Grey

: 800 mm

: Other

: 2000 mm

: 1200 mm

: 7035

: 2

: Passive

: TRUE

: Steel

: 42

: IP20

: Powder coating

: Front and rear

: Crank

: TRUE

: TRUE

: TRUE

: FALSE

: TRUE

: 482.6 mm (19 inch)

: Three-point

: Three-point

: Glass

: Steel

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Factory colour

Width

Rack unit

Depth

Height

Product type

Rittal TX 7888.822 19" server rack cabinet (W x H x D) 800 x 2000 x 1200 mm 42 U Grey (RAL 7035)

Item no:3389231

Unavailable

Conrad Electronic

This article

Grey (RAL 7035)

800 mm

42 U

1200 mm

2000 mm

19" server rack cabinet

Piece(s)

Minimum order quantity: 1

Multiple: 1

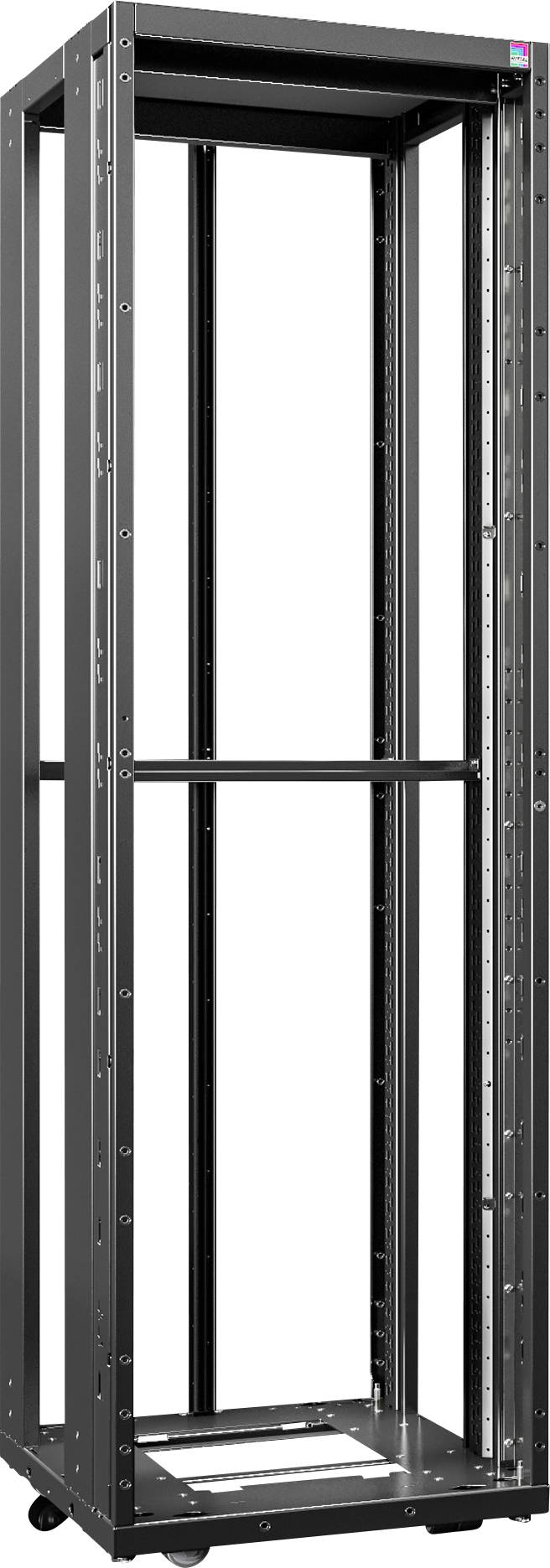

Rittal IT 7100.120 21" network cabinet (W x H x D) 600 x 2286 x 1068 mm 44 U Black (RAL 9005)

Item no:3389202

Unavailable

Conrad Electronic

Black (RAL 9005)

600 mm

44 U

1068 mm

2286 mm

21" network cabinet

Piece(s)

Minimum order quantity: 1

Multiple: 1

Rittal TX 5540.245 19" server rack cabinet (W x H x D) 600 x 2450 x 1200 mm 52 U Grey (RAL 7035) , Black (RAL 9005)

Item no:3389247

Unavailable

Conrad Electronic

Grey (RAL 7035)

600 mm

52 U

1200 mm

2450 mm

19" server rack cabinet

Piece(s)

Minimum order quantity: 1

Multiple: 1

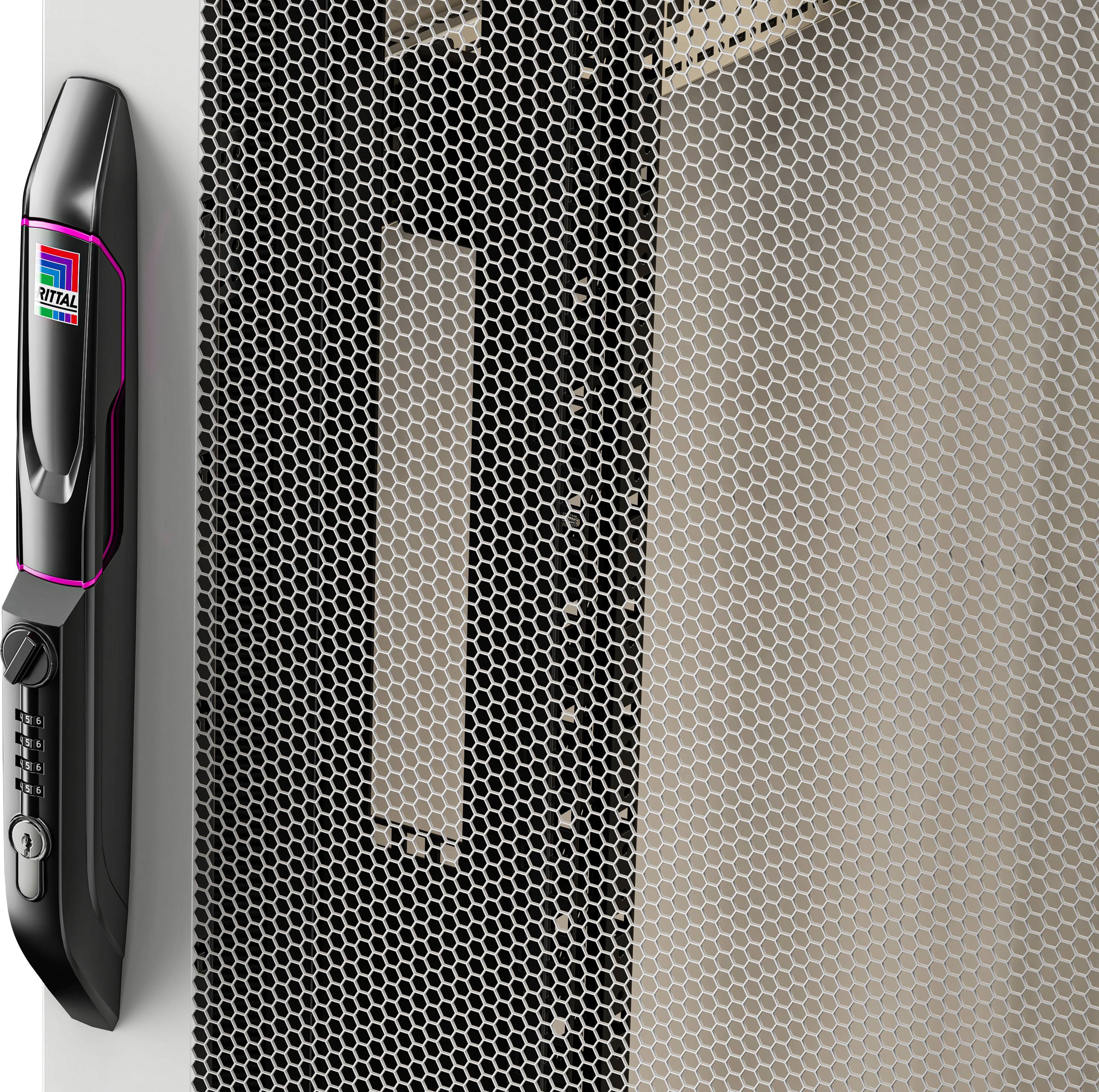

Rittal TX 5541.220 19" server rack cabinet (W x H x D) 800 x 2200 x 1200 mm 47 U Grey (RAL 7035) , Black (RAL 9005)

Item no:3389246

Unavailable

Conrad Electronic

Grey (RAL 7035)

800 mm

47 U

1200 mm

2200 mm

19" server rack cabinet

Piece(s)

Minimum order quantity: 1

Multiple: 1

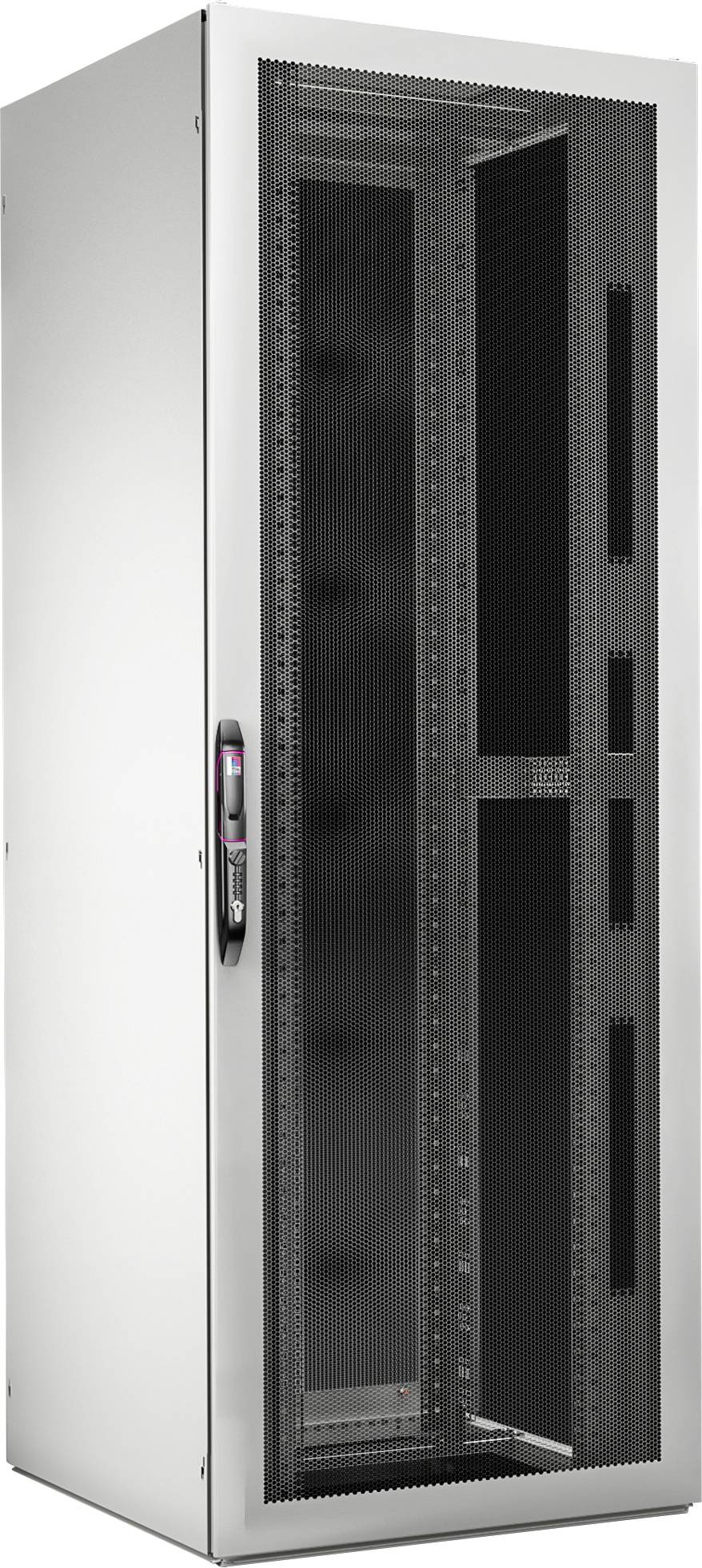

Rittal TX 5541.245 19" server rack cabinet (W x H x D) 800 x 2450 x 1200 mm 52 U Grey (RAL 7035) , Black (RAL 9005)

Item no:3389248

Unavailable

Conrad Electronic

Grey (RAL 7035)

800 mm

52 U

1200 mm

2450 mm

19" server rack cabinet

Piece(s)

Minimum order quantity: 1

Multiple: 1

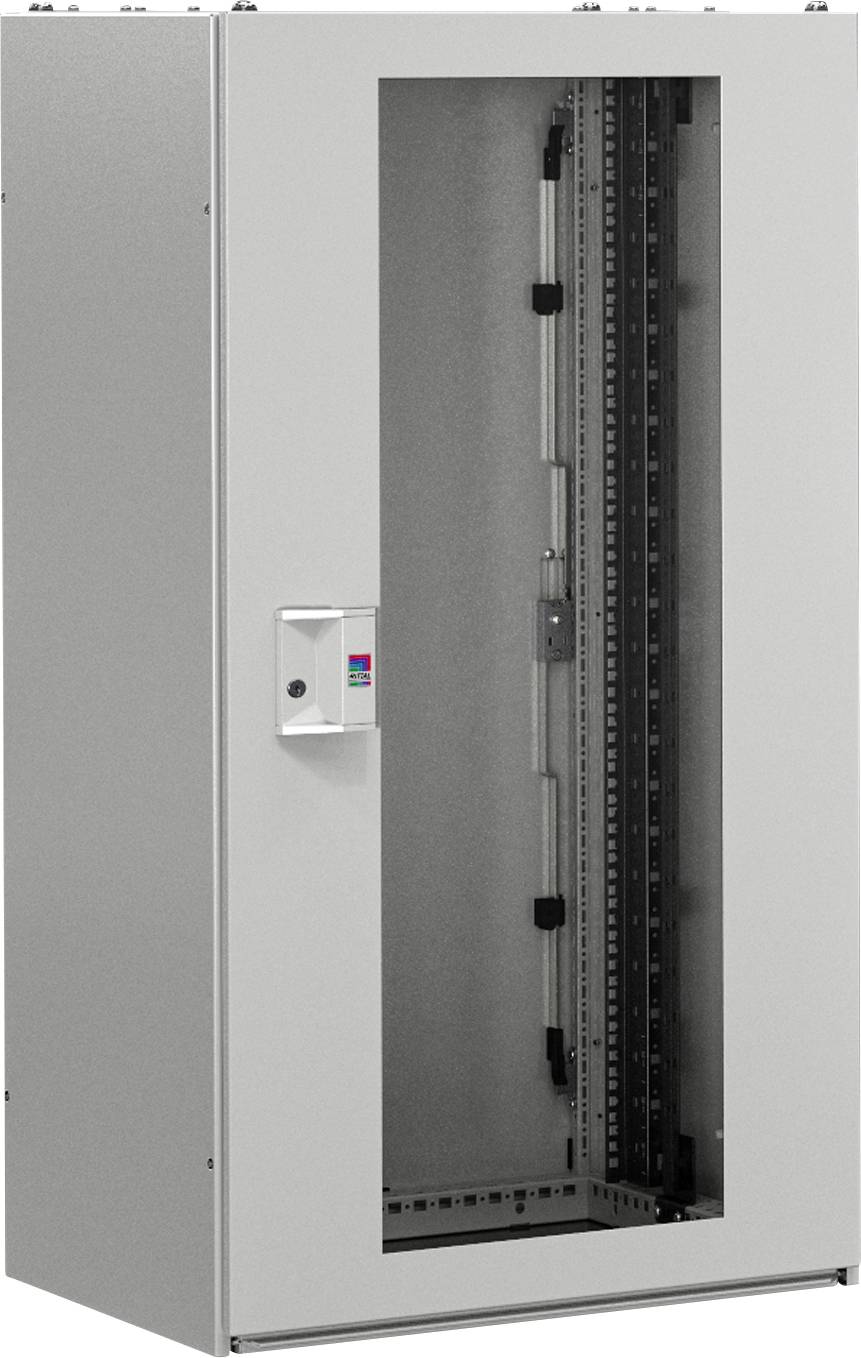

Rittal TX 7888.616 19" server rack cabinet (W x H x D) 600 x 1200 x 600 mm 24 U Grey (RAL 7035)

Item no:3389237

Unavailable

Conrad Electronic

Grey (RAL 7035)

600 mm

24 U

600 mm

1200 mm

19" server rack cabinet

Piece(s)

Minimum order quantity: 1

Multiple: 1

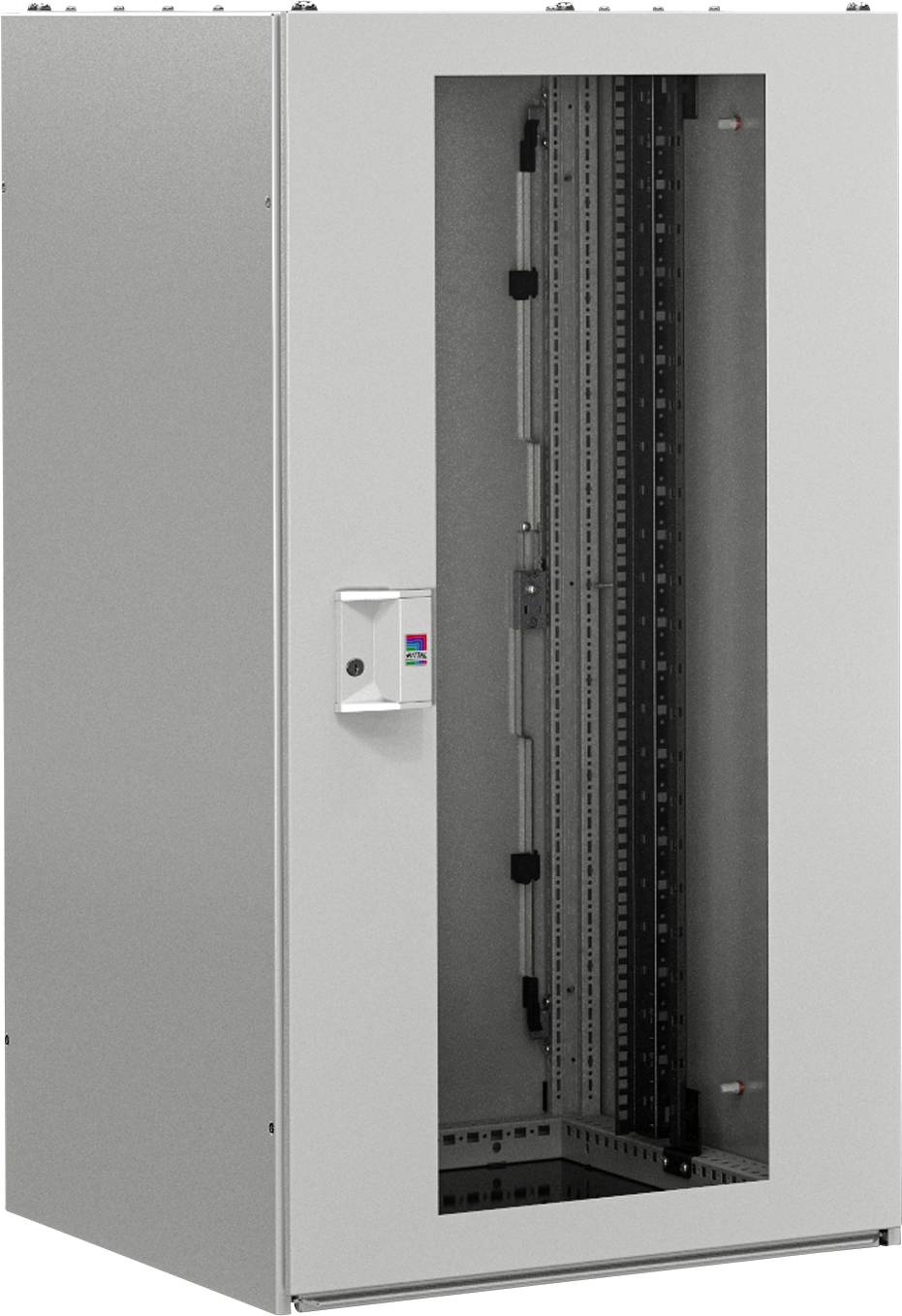

Rittal TX 7888.618 19" server rack cabinet (W x H x D) 600 x 1200 x 800 mm 24 U Grey (RAL 7035)

Item no:3389238

Unavailable

Conrad Electronic

Grey (RAL 7035)

600 mm

24 U

800 mm

1200 mm

19" server rack cabinet

Piece(s)

Minimum order quantity: 1

Multiple: 1

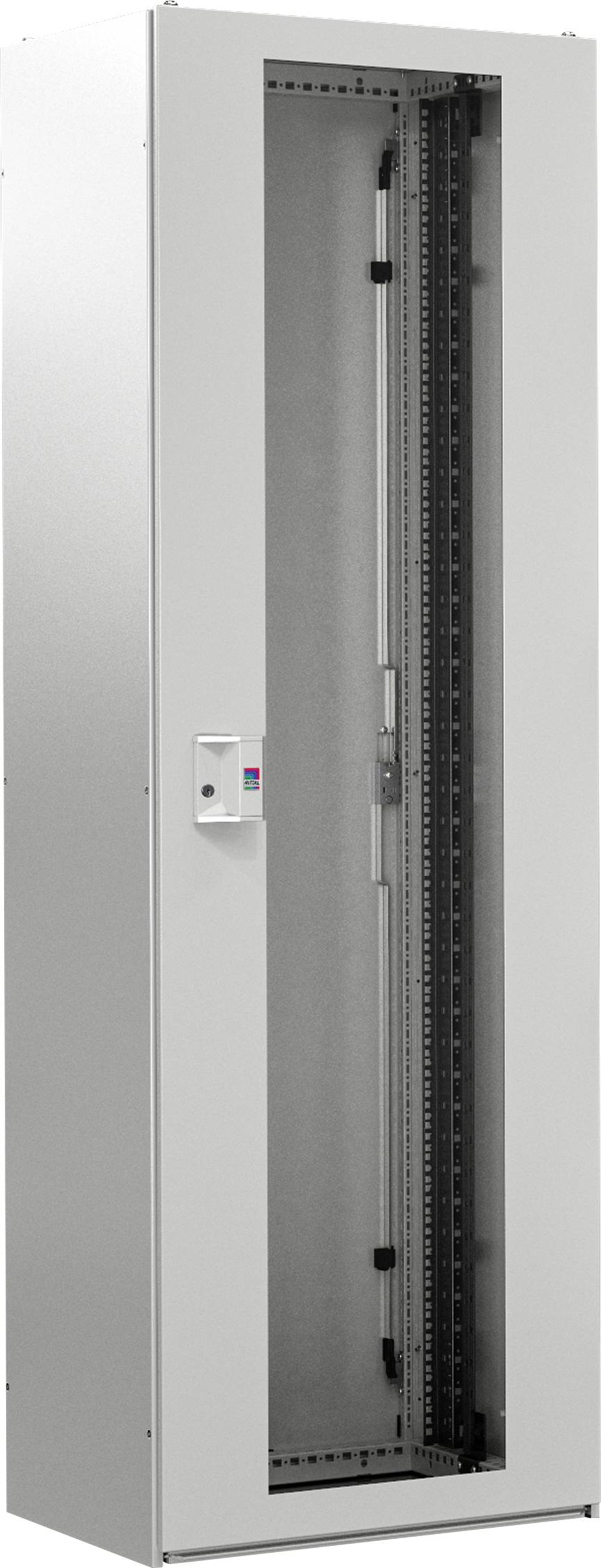

Rittal TX 7888.626 19" server rack cabinet (W x H x D) 600 x 2000 x 600 mm 42 U Grey (RAL 7035)

Item no:3389239

Unavailable

Conrad Electronic

Grey (RAL 7035)

600 mm

42 U

600 mm

2000 mm

19" server rack cabinet

Piece(s)

Minimum order quantity: 1

Multiple: 1

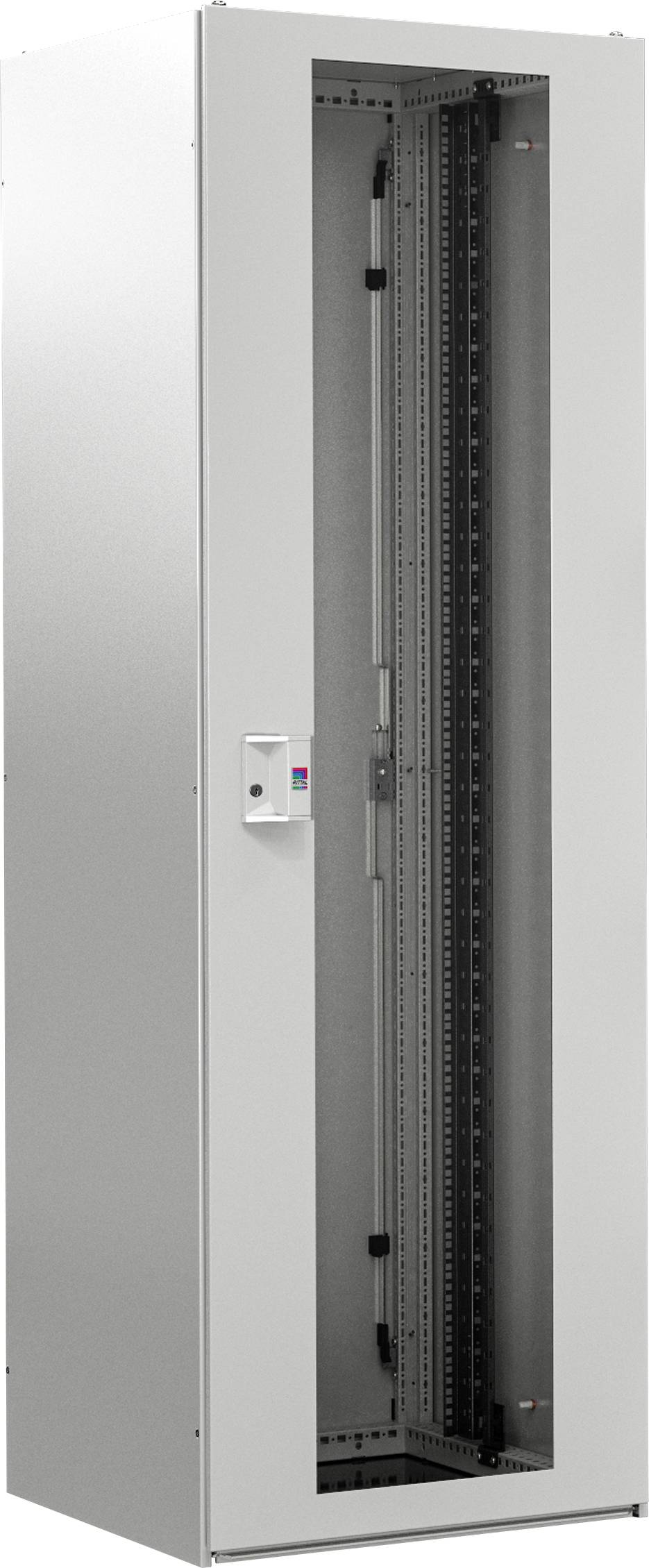

Rittal TX 7888.628 19" server rack cabinet (W x H x D) 600 x 2000 x 800 mm 42 U Grey (RAL 7035)

Item no:3389240

Unavailable

Conrad Electronic

Grey (RAL 7035)

600 mm

42 U

800 mm

2000 mm

19" server rack cabinet

Piece(s)

Minimum order quantity: 1

Multiple: 1

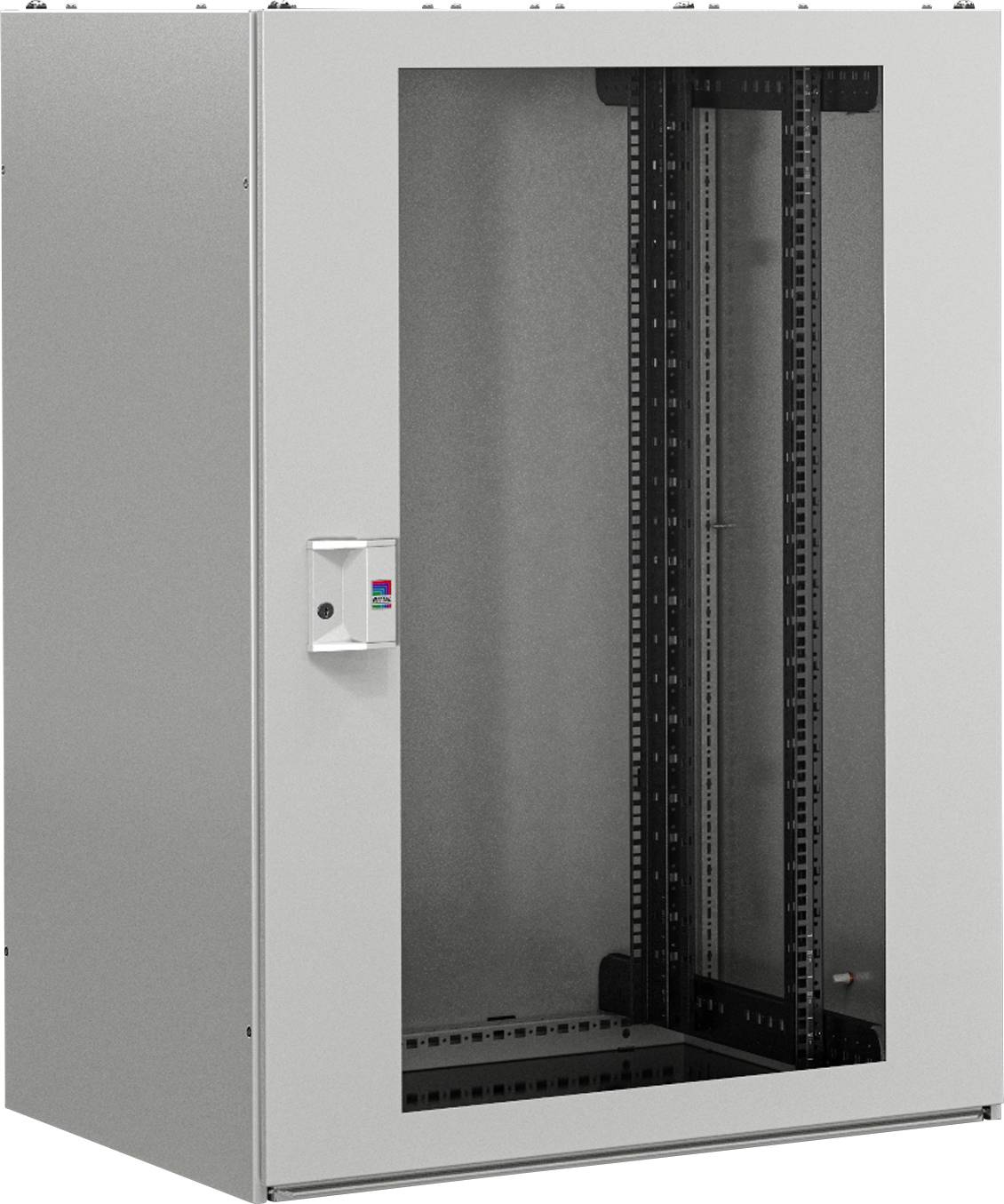

Rittal TX 7888.718 19" server rack cabinet (W x H x D) 800 x 1200 x 800 mm 24 U Grey (RAL 7035)

Item no:3389234

Unavailable

Conrad Electronic

Grey (RAL 7035)

800 mm

24 U

800 mm

1200 mm

19" server rack cabinet

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3389231 Rittal TX 7888.822 19" server rack cabinet (W x H x D) 800 x 2000 x 1200 mm 42 U Grey (RAL 7035)

Description

TX CableNet, with ventilated door, with roof panel, side walls, 19"-profile rails, Housing dismantled, BHT:800x2000x1200 mm, RAL 7035

A new level of cable management: The TX CableNet combines years of experience in an IT rack that meets all requirements for functionality and quality, prepared for individual interior design.
