Robotis Servo motor MBS-ANT-07
EAN:
Part number:
Item no:
Number (Package size 6 pc(s))
Total (€ 327.59 / piece)
€ 1,965.55
plus VAT.
Technical specifications
- Weight 77 g (per servo)
- Dimensions 35.6 x 50.6 x 35.5 mm
- Resolution 0.088°
- Reduction ratio 193:1
- Holding torque: Up to 3.1 Nm
- Adjustable 0 - 360° / adjustable continuous rotation
- Operating temperature: -5° - 80°C
- Voltage 10 - 14.8 V (recommended voltage 12V)
- Data transfer: Half duplex TTL / 8 bit, 1 stop, no parity / 7343bps ~ 1 Mbps
- Motor by Maxon
- ID assignment up to 254
- Product type
Servo motor
- Length
35.6 mm
- Width
50.6 mm
- Manufacturer part #
MBS-ANT-07
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3089868 Robotis Servo motor MBS-ANT-07
Description
ROBOTIS is a well-known manufacturer of robotics development platforms and components. This company is also active under the name DYNAMIXEL, servomotors with industrial quality and interfaces HER. The MX-28AT servo motors are equipped with an integrated reduction ratio of 193:1, a controller with feedback and driver. Together with the TTL interface, the servos can be controlled very precisely and also give the control device a feedback signal at all times about the current position. The maximum resolution (position accuracy) is 0.088°. Because each servo can be assigned a unique ID, the servos can be connected in series (one after the other as shown below) and the cabling is reduced to a minimum. The developing heat is optimally discharged by the aluminum front case for a good temperature/time ratio.
This text is machine translated.
This text is machine translated.
Features
- Robotic Servo motors
- TTL interface with high baud rate up to 4.5 Mbps
- 4096 positions / 0.088°
- Aluminium Front Case
Scope of delivery

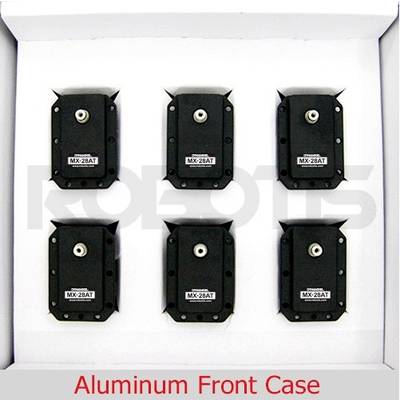

- 6x dynamic MX-28AT servo motors
