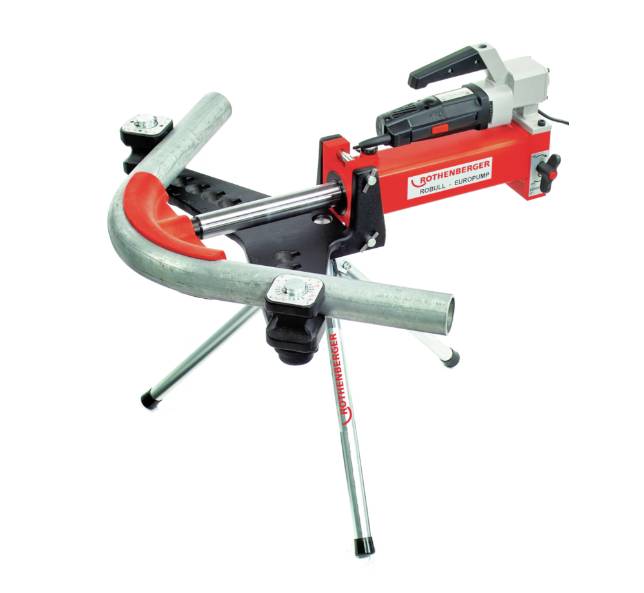

ROBULL TYP ME, 3/8-2", open, 230V with accessories Rothenberger 057973X
EAN:
Part number:
Item no:
Number
Total (€ 5,435.00 / piece)
€ 5,435.00
incl. VAT
14-day return policy included
Technical specifications
- Working area diameter inches: 3/8 - 2 inches
- Working range diameter 17.2 - 60.3 mm
- Power output: 900 W
- Bending radius 45 - 200 mm
- Power cable length: 3 m.
- Product type
Pipe bender
- Max. bend radius
200 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3061646 ROBULL TYP ME, 3/8-2", open, 230V with accessories Rothenberger 057973X
Description
With the ROBULL Type ME, installers in the plumbing and industry can bend pipes up to 63 mm / 2".
This text is machine translated.
This text is machine translated.
Features
- Precise bending by angle scale at the counter-holders
- Heating up of the pipe is omitted through cold forming process
- The number of arcs and welds is eliminated by the use of curved pipes
- Effective use with 150 kN piston force
- The intuitive operation of the machine makes it easier to use
- Closed, low-maintenance hydraulic system in monoblock design with fast, automatic piston retraction
Scope of delivery
- ROBULL TYPE ME, 230V
- Bending frame for all ROBULL, open, 2"
- Bend segment, ROBULL,standard, 3/8", 90°
- Bend segment, ROBULL,standard, 1/2", 90°
- Bend segment, ROBULL,standard, 3/4", 90°
- Curved segment, ROBULL, standard, 1", 90°
- Bend segment,ROBULL,standard,1.1/4", 90°
- Bend segment,ROBULL,standard, 1.1/2",90°
- Bend segment, ROBULL,standard, 2", 90°
- Operating instructions ROBULL
- Steel sheet box ROBULL
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
