Name: ROHM Semiconductor MNR14E0APJ101 Resistor ladder 100 Ω SMD 0603 0.063 W 1 pc(s)
Brand: ROHM Semiconductor
SKU: 3523602
Availability: InStock

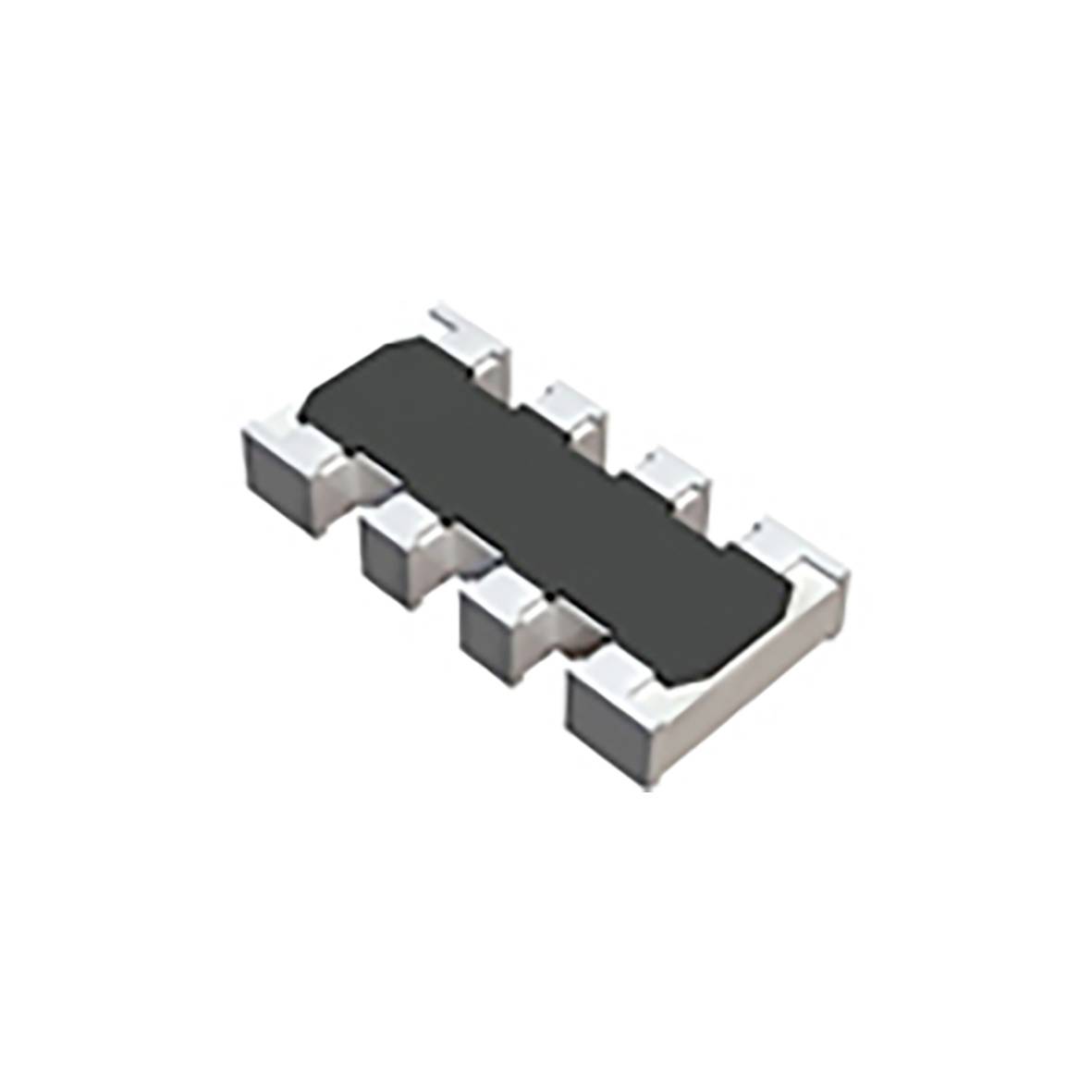

'A resistor array with multiple leads on both sides, used in electronic circuits for managing resistance across different paths.'

Product type

Resistor ladder

Type

SMD

Resistance

100 Ω

Power rating

0.063 W

Tolerance ±

5 %

Datasheet (PDF)

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

75 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 25

Total (€ 0.03427 / piece)

€ 0.86

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

ESD Packaging: No ESD
Series: MNR14
Design 0603
Delivery type: Belt
Solder-able 260 ° / 10s
Resistance value 100 ohms
Unit of resistance: Ohm
Resistance value_1: 100
Resistance tolerance: ±5 %
Connections 4
Rated power: 0.063 W
Load reduction: Linear from 70°C to 155°C (0W)
Max. OPERATING VOLTAGE (DC) 50 V DC
Max. OPERATING VOLTAGE (AC) 50 V AC
Insulation voltage 100 V
Temperature coefficient 200 ppm/°
Insulation resistance 10 MOhm
Number of resistors: 4
Qualification: AEC-Q200

Product type: Resistor ladder

Type: SMD

Type: 0603

Resistance: 100 Ω

Power rating: 0.063 W

Tolerance ±: 5 %

Temperature coefficient: 200 ppm/°C

CS: 4 mm

Length: 3.2 mm

Width: 1.6 mm

Height: .5 mm

Content: 1 pc(s)

Dim: (L x W x H) 3.2 x 1.6 x .5 mm

Type: MNR14E0APJ101

Variants(All information include VAT, plus shipping costs)

Length

Resistance

ROHM Semiconductor MNR14E0APJ101 Resistor ladder 100 Ω SMD 0603 0.063 W 1 pc(s)

Item no:3523602

Fast track dispatch on Thu 29 Oct

75 Piece(s)Conrad Electronic

This article

4 mm

3.2 mm

100 Ω

Piece(s)

Minimum order quantity: 25

Multiple: 1

€ 0.03427^*

ROHM Semiconductor MNR14E0APJ102 Resistor ladder 1 kΩ SMD 0603 0.063 W 1 pc(s)

Item no:3523604

Dispatches on Wed 4 Nov

Conrad Electronic

4 mm

3.2 mm

1 kΩ

Piece(s)

Minimum order quantity: 25

Multiple: 1

€ 0.03427^*

ROHM Semiconductor MNR14E0APJ103 Resistor ladder 10 kΩ SMD 0603 0.063 W 1 pc(s)

Item no:3523607

Dispatches on Wed 4 Nov

Conrad Electronic

4 mm

3.2 mm

10 kΩ

Piece(s)

Minimum order quantity: 25

Multiple: 1

€ 0.03427^*

ROHM Semiconductor MNR14E0APJ104 Resistor ladder 100 kΩ SMD 0603 0.063 W 1 pc(s)

Item no:3523608

Dispatches on Wed 4 Nov

Conrad Electronic

4 mm

3.2 mm

100 kΩ

Piece(s)

Minimum order quantity: 25

Multiple: 1

€ 0.03427^*

ROHM Semiconductor MNR14E0APJ222 Resistor ladder 2.2 kΩ SMD 0603 0.063 W 1 pc(s)

Item no:3523605

Fast track dispatch on Thu 29 Oct

90 Piece(s)Conrad Electronic

4 mm

3.2 mm

2.2 kΩ

Piece(s)

Minimum order quantity: 25

Multiple: 1

€ 0.02351^*

ROHM Semiconductor MNR14E0APJ471 Resistor ladder 470 Ω SMD 0603 0.063 W 1 pc(s)

Item no:3523603

Fast track dispatch on Thu 29 Oct

90 Piece(s)Conrad Electronic

4 mm

3.2 mm

470 Ω

Piece(s)

Minimum order quantity: 25

Multiple: 1

€ 0.02351^*

ROHM Semiconductor MNR14E0APJ472 Resistor ladder 4.7 kΩ SMD 0603 0.063 W 1 pc(s)

Item no:3523606

Dispatches on Wed 4 Nov

Conrad Electronic

4 mm

3.2 mm

4.7 kΩ

Piece(s)

Minimum order quantity: 25

Multiple: 1

€ 0.03427^*

ROHM Semiconductor MNR04M0APJ100 Resistor ladder 10 Ω SMD 0402 0.063 W 1 pc(s)

Item no:3464956

Unavailable

Conrad Electronic

2 mm

10 Ω

Piece(s)

Minimum order quantity: 1

Multiple: 1

ROHM Semiconductor MNR04M0APJ101 Resistor ladder 100 Ω SMD 0402 0.063 W 1 pc(s)

Item no:3464959

Unavailable

Conrad Electronic

2 mm

100 Ω

Piece(s)

Minimum order quantity: 1

Multiple: 1

ROHM Semiconductor MNR04M0APJ103 Resistor ladder 10 kΩ SMD 0402 0.063 W 1 pc(s)

Item no:3464963

Unavailable

Conrad Electronic

2 mm

10 kΩ

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 3523602 ROHM Semiconductor MNR14E0APJ101 Resistor ladder 100 Ω SMD 0603 0.063 W 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3523602 ROHM Semiconductor MNR14E0APJ101 Resistor ladder 100 Ω SMD 0603 0.063 W 1 pc(s)

Description

SMD thick film resistor networks 4x0

This text is machine translated.

Features

• SMD resistor networks
• For high mounting density
• Convex connections
• Housing with 8 connections with 4 insulated resistors
• ISO9001 / IATF16949 certified
• Complies with AEC-Q200
• Original packaging: 5,000 pieces on belt with 4mm pitch (coil Ø 180mm, 7-inch)

Description

SMD thick film resistor networks 4x0

This text is machine translated.

Features

• SMD resistor networks
• For high mounting density
• Convex connections
• Housing with 8 connections with 4 insulated resistors
• ISO9001 / IATF16949 certified
• Complies with AEC-Q200
• Original packaging: 5,000 pieces on belt with 4mm pitch (coil Ø 180mm, 7-inch)
