Name: Roline 19" wall cabinet (W x H x D) 600 x 379 x 600 mm 6 U Grey
Brand: Roline
SKU: 3414670

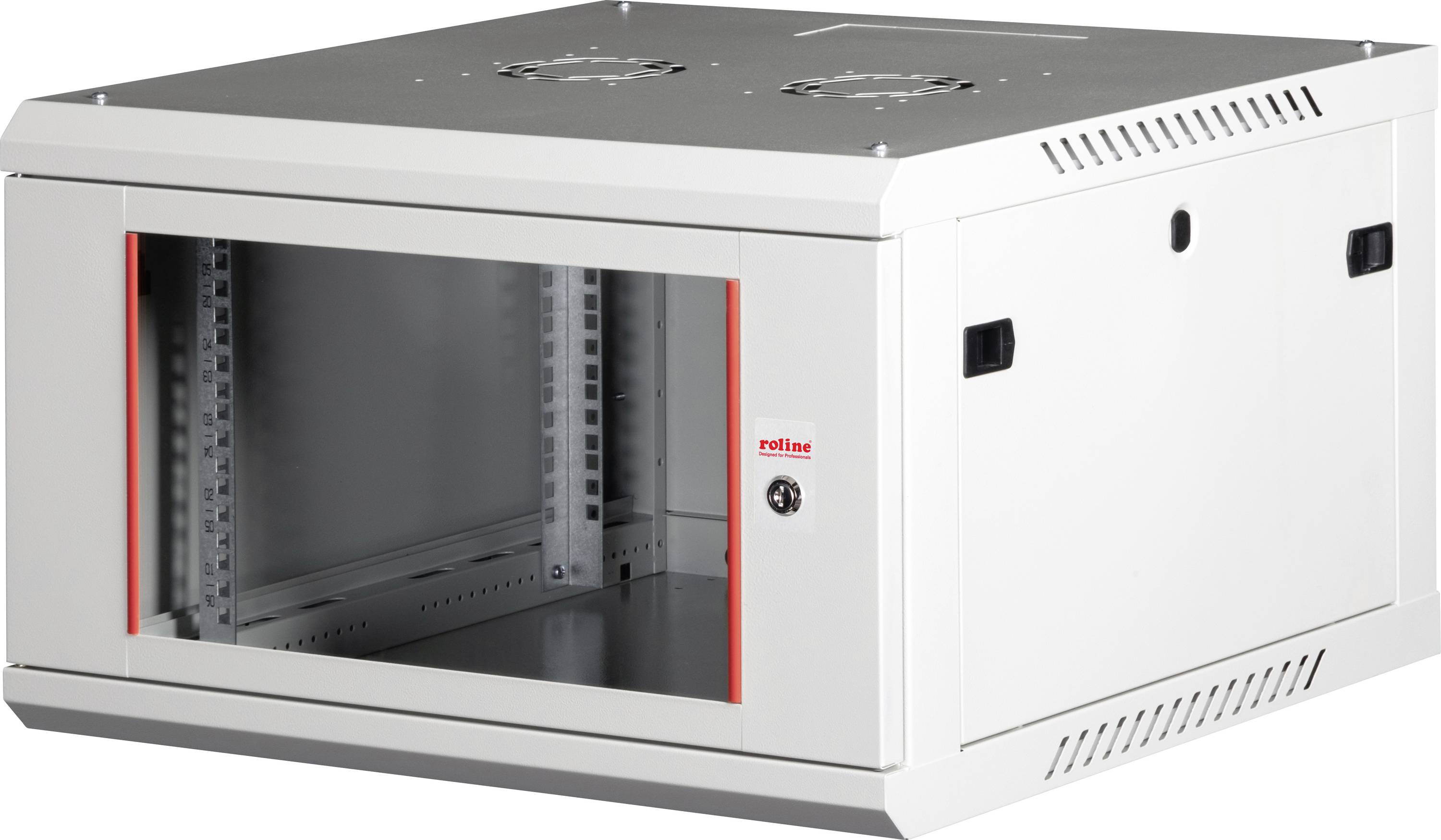

A white network wall cabinet with a transparent front door and ventilation slots on top and sides, used for housing networking equipment.

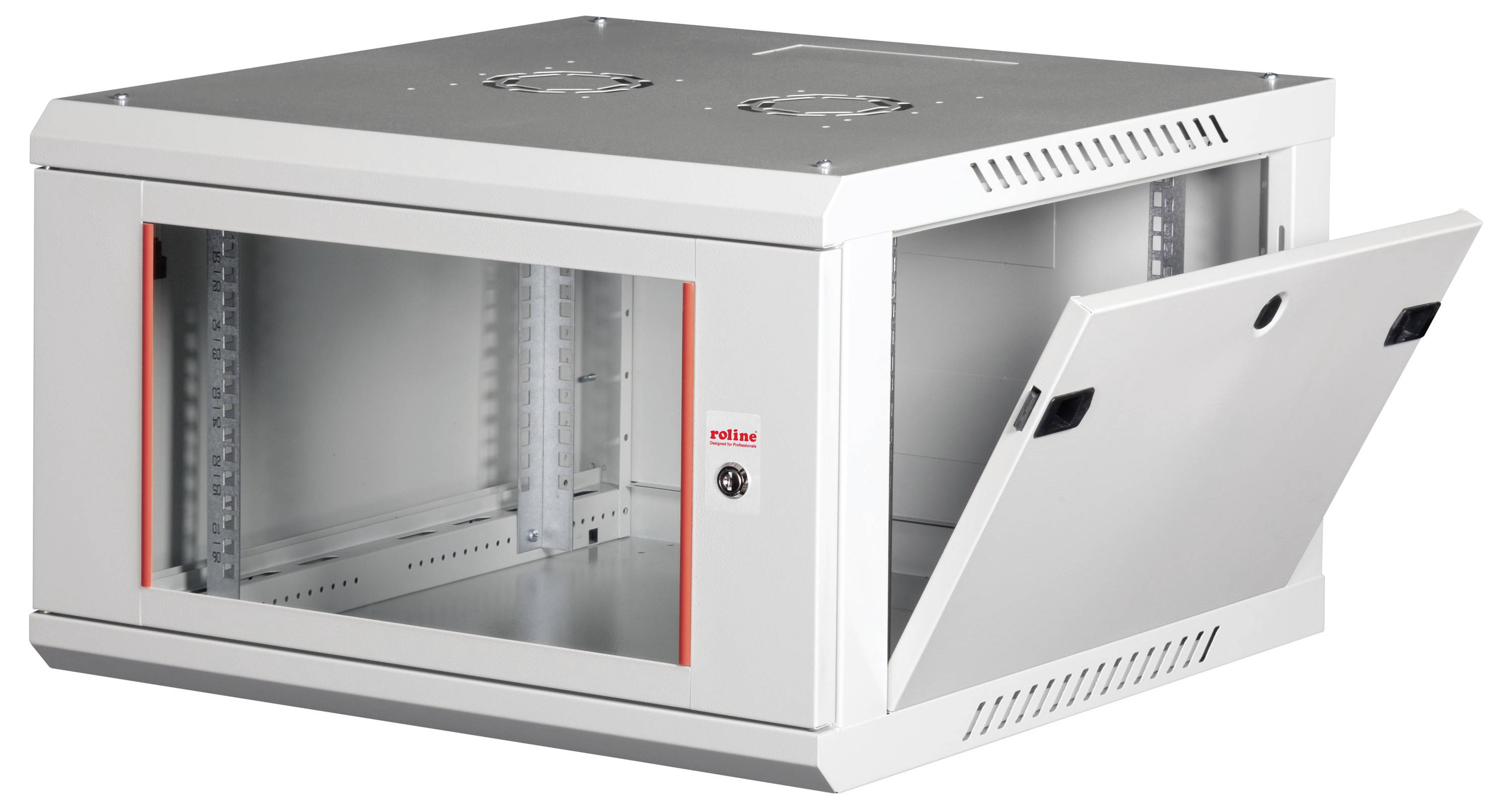

A grey, wall-mounted server rack with a glass front door and an open side panel, showing interior metal shelves and ventilation slots.

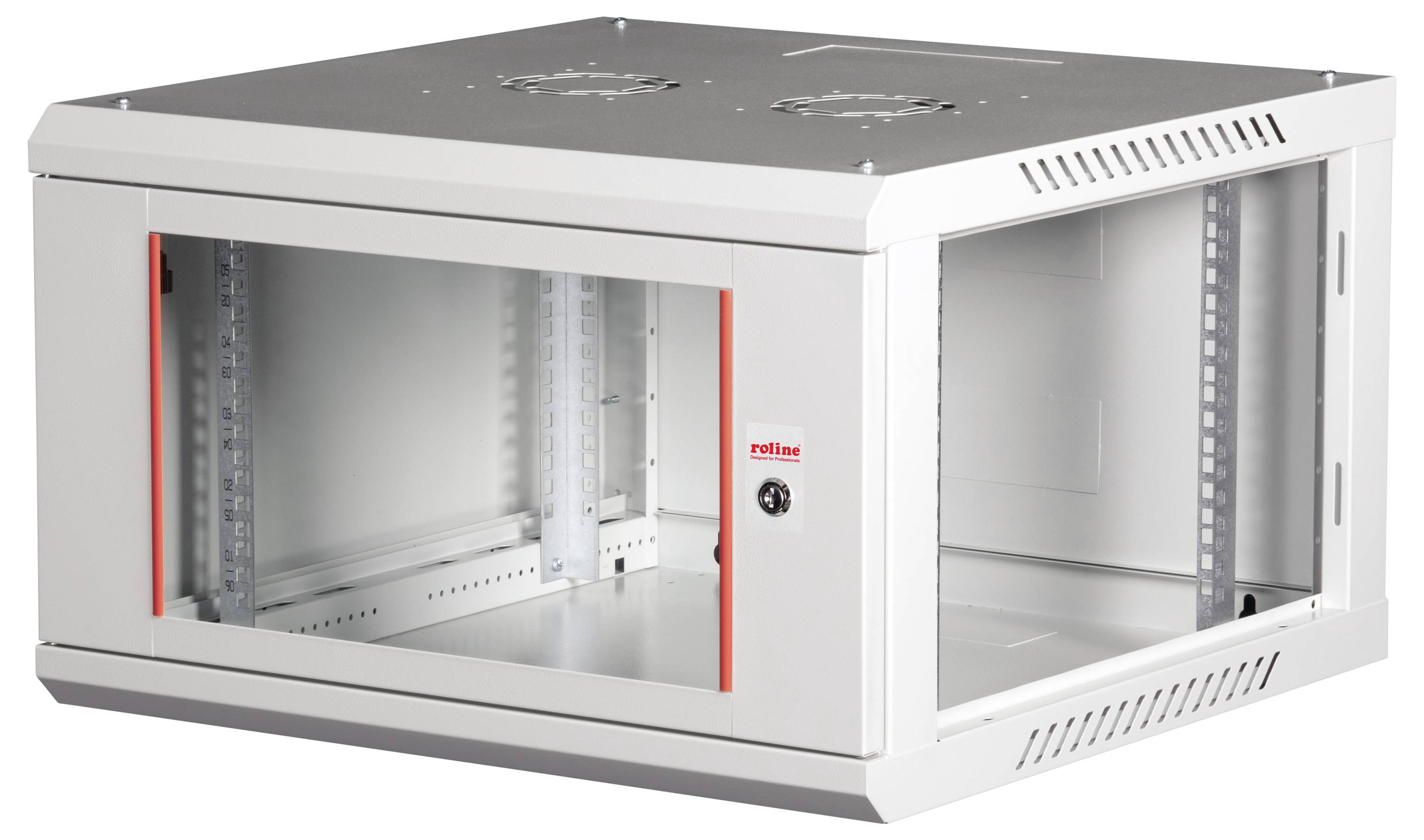

A white wall-mounted server rack cabinet with a transparent front door and ventilation slots on the sides, designed for network equipment storage.

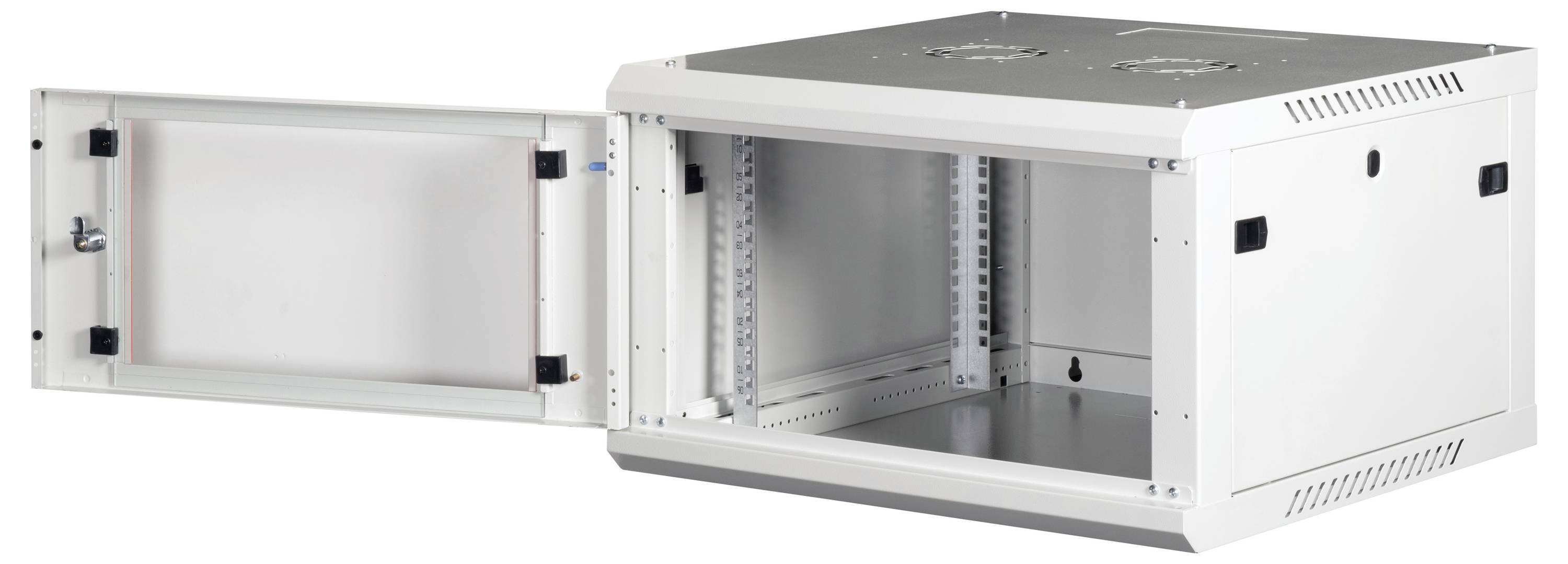

A white network server cabinet with an open front door, revealing empty rack space inside. Ventilation openings are visible on the top panel.

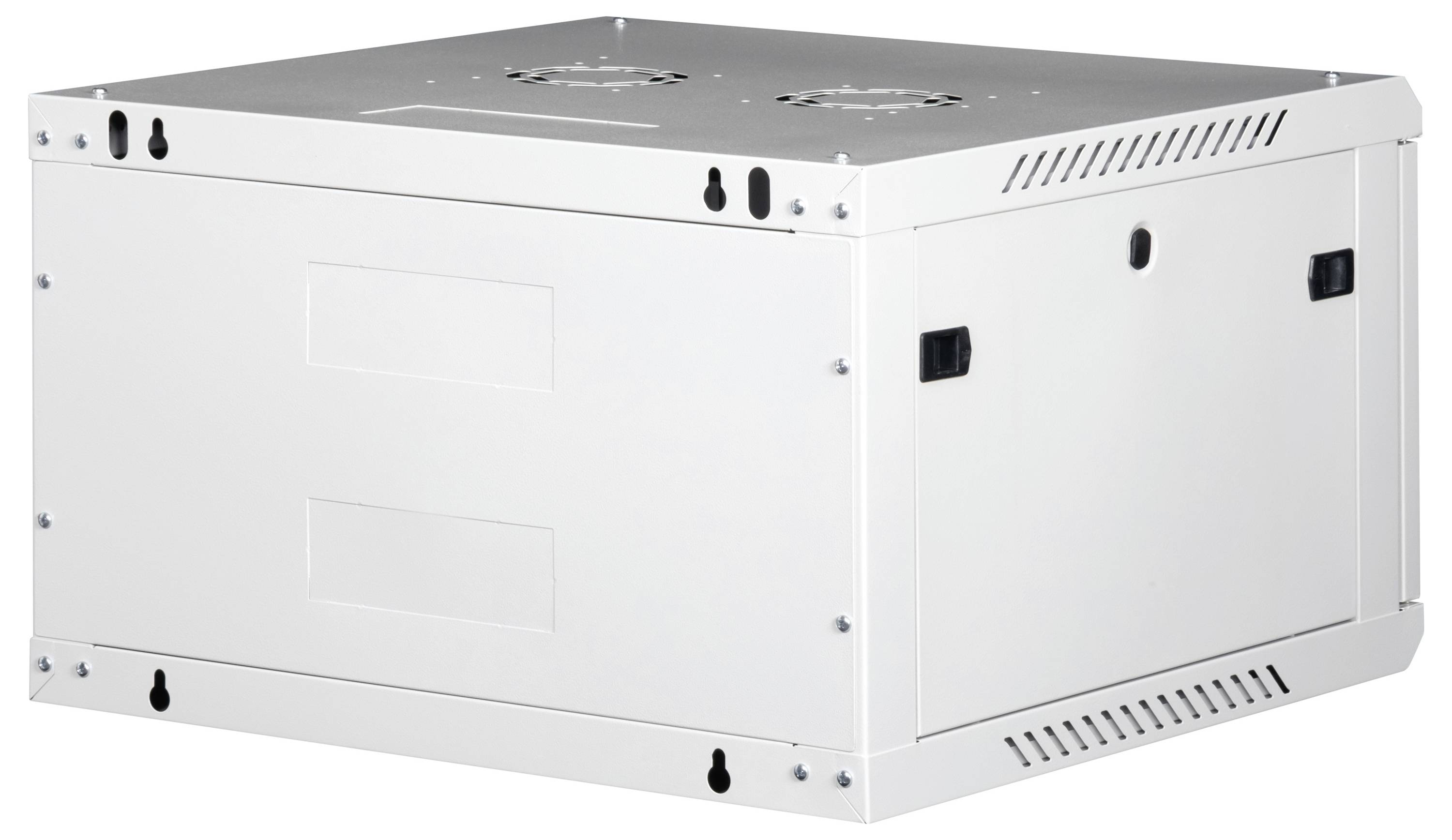

White, rectangular wall mount rack cabinet with ventilation holes, designed for network equipment.

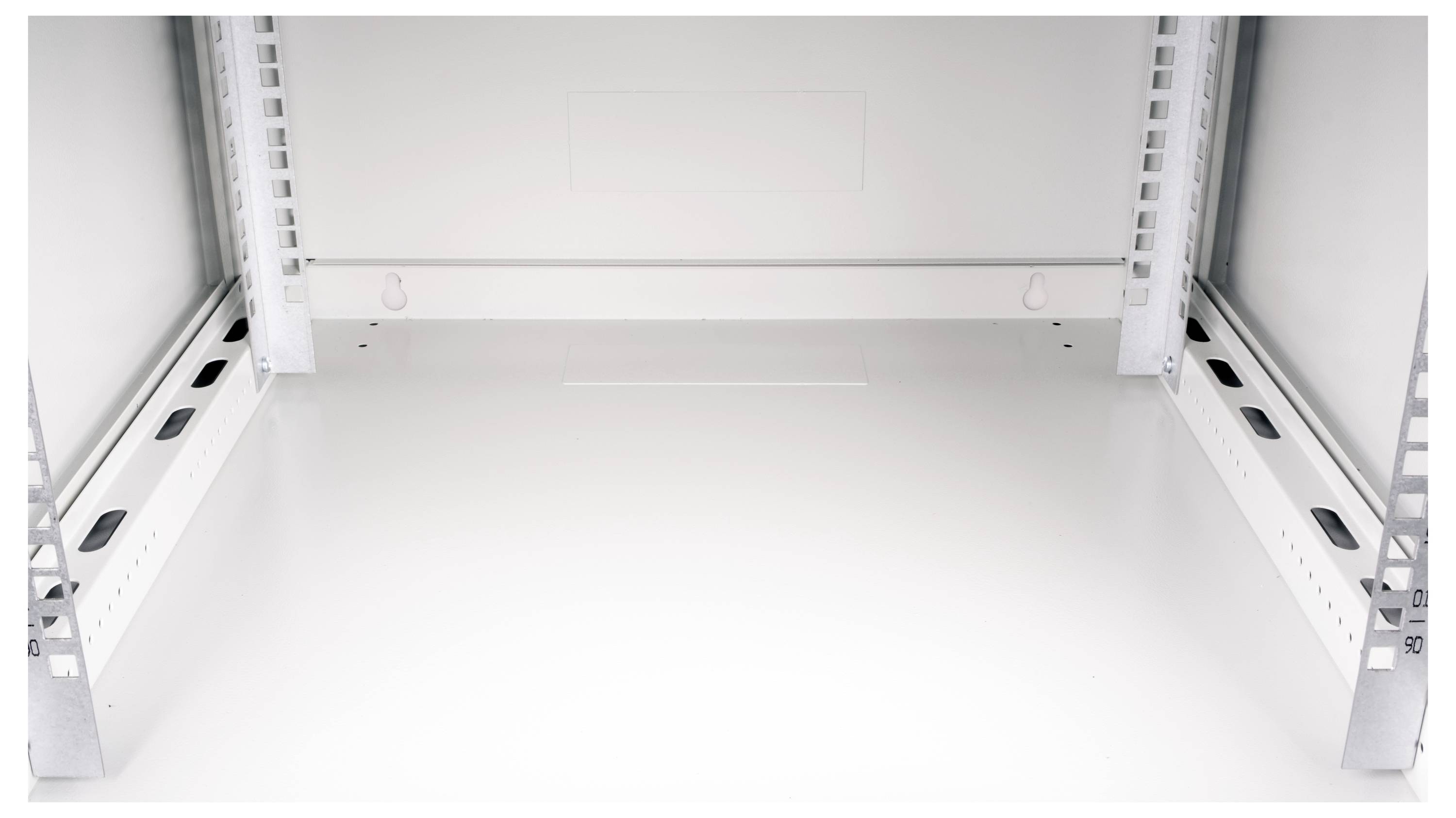

Empty white metal rack interior with side railings and screw holes, designed for holding equipment in a server or storage unit.

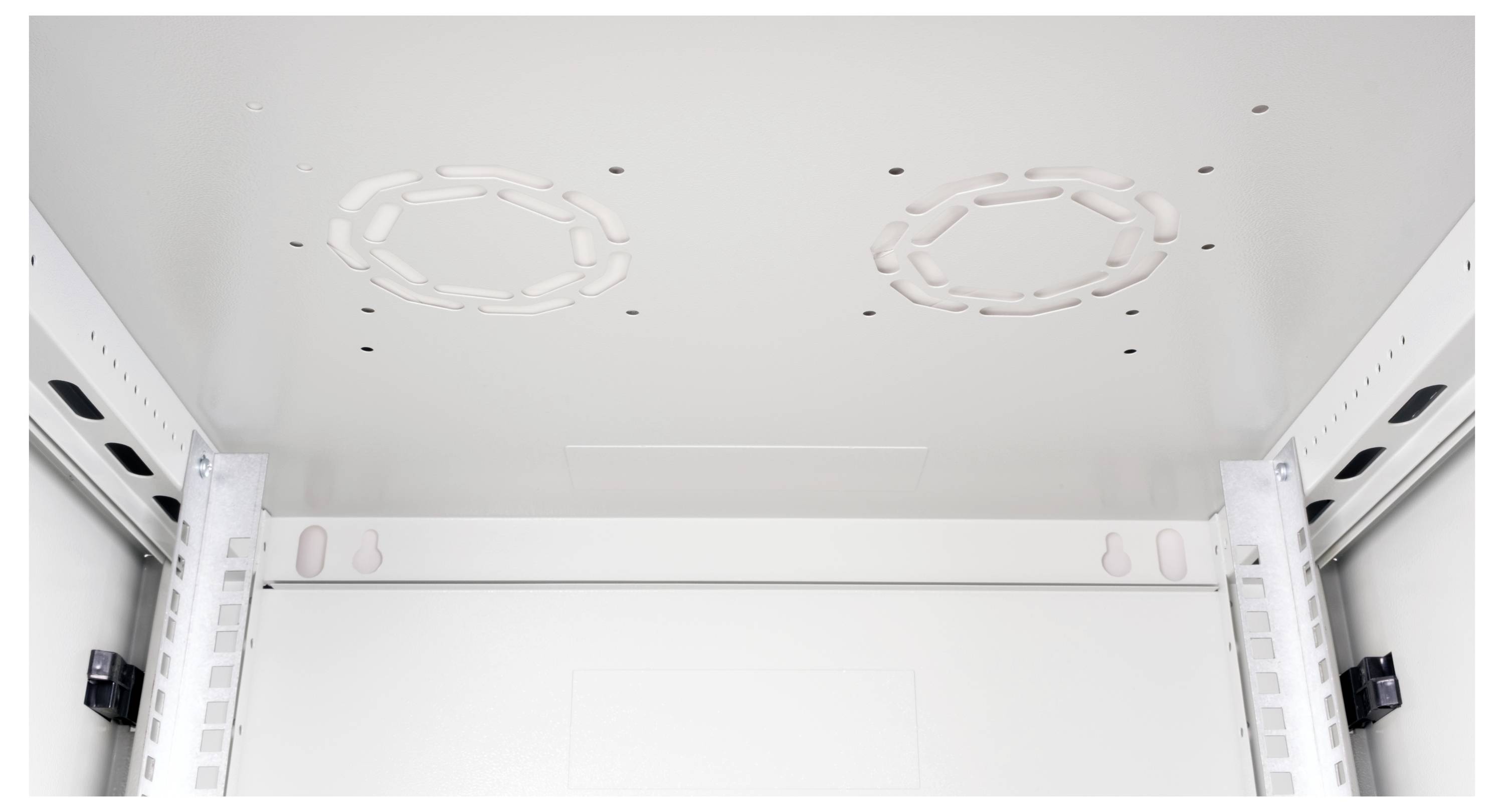

Interior view of an empty white metal server rack cabinet with cable management rings on the ceiling, perforations for ventilation.

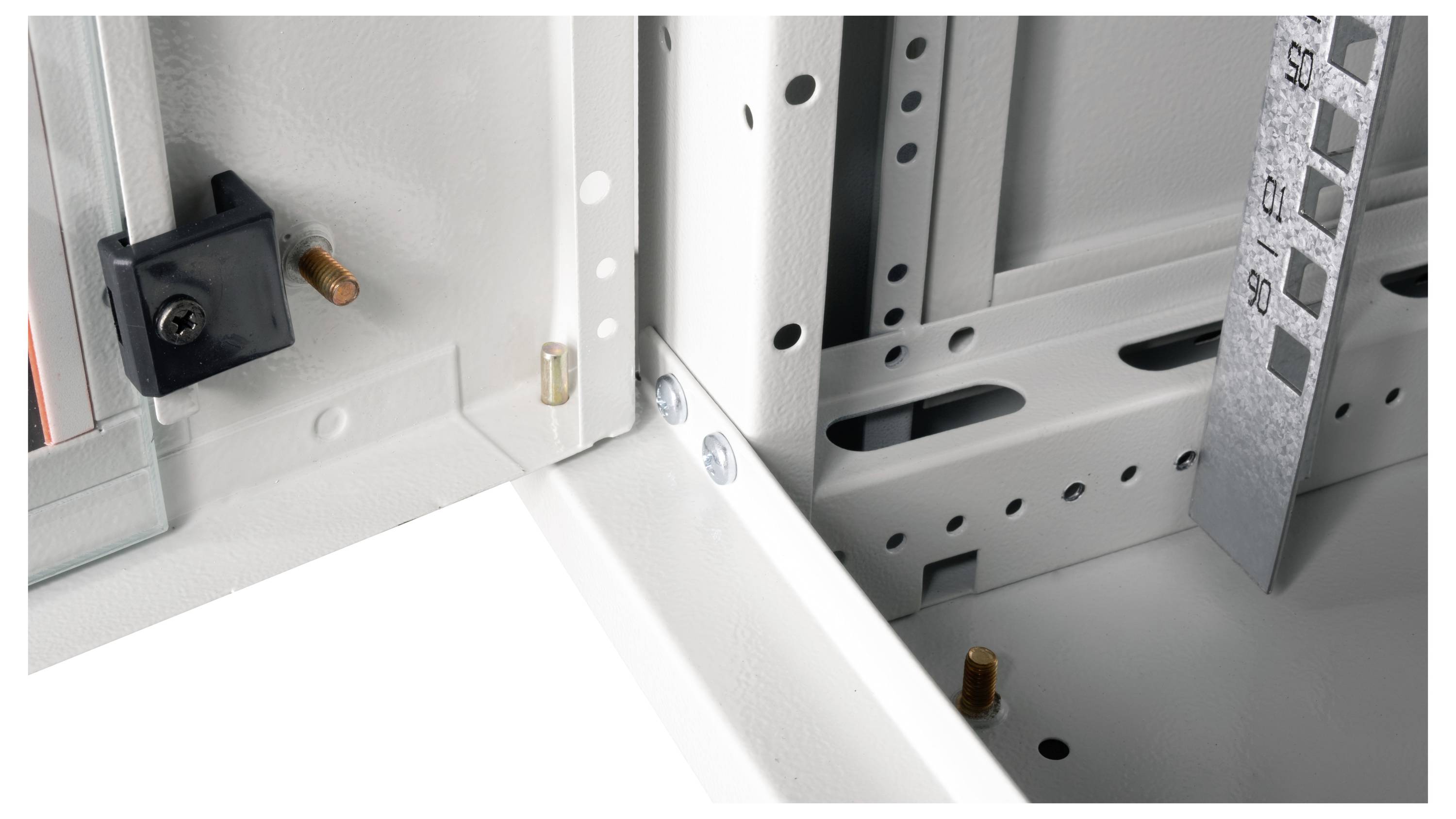

Close-up of a metal cabinet interior showing structural components like brackets and shelves, highlighting assembly features and materials.

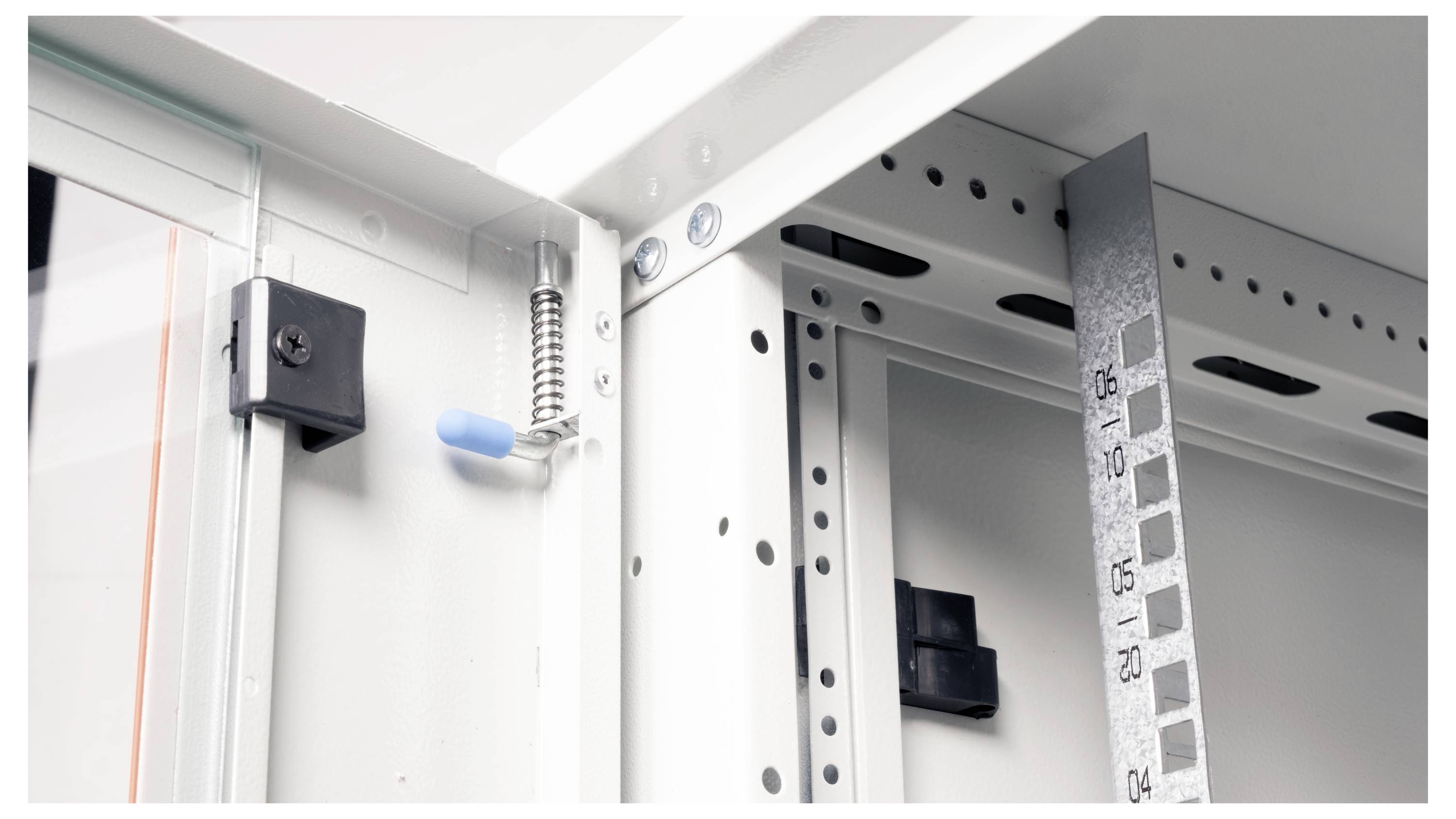

The image shows a close-up of a metal electrical cabinet interior, featuring a spring latch and a vertical ruler with measurement markings.

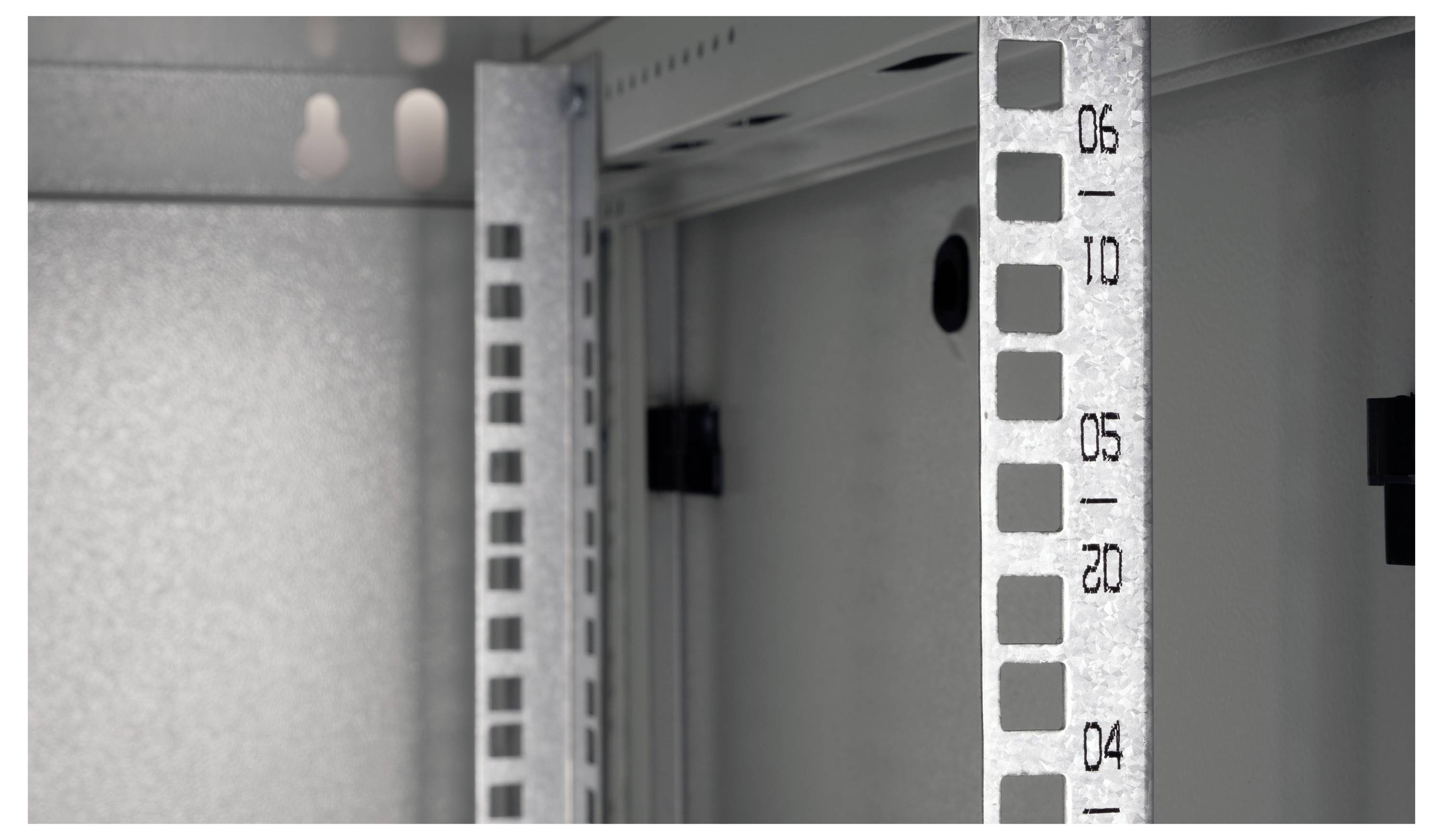

The image shows a close-up of a metal rack with numbered slots, likely for server or equipment installation, in a data center or technical setting.

1/10

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

ROLINE 19" wall housing basic plus 6 RU

Capacity: 80 kg; front door made of hardened glass, lockable; side panels are provided with a quick-release lock and removable; roof with punched holes for fan modules; cable routing on roof and base possible; ventilation slots for passive ventilation; Including Mounting material;Protection class IP20;Delivery: Mounted

Technical specifications

Product type: 19" wall cabinet

Rack unit: 6 U

Width: 600 mm

Height: 379 mm

Depth: 600 mm

Dim: (W x H x D) 600 x 379 x 600 mm

Weight: 13900 g

Factory colour: Grey

Rack size: 483 mm (19")

Cable design: Round

Version: Cable

Screen size diagonal (inches): 1 inch

Keyboard layout: German, QWERTZ

Cable use: C13/C14 appliances

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3414670 Roline 19" wall cabinet (W x H x D) 600 x 379 x 600 mm 6 U Grey

Description

ROLINE 19 inch wall housing Basic Plus with 600 mm depth. The wall housing of the ROLINE Basic Plus series were specially designed for a flexible network wiring. This series represents an ideal balance between the ROLINE PRO and the ROLINE Basic series. The floor and roof are equipped with a punched cable inlet. In addition, the intake of a fan module is enabled by a punched area in the roof. Inside two pairs of galvanized profile rails with height units of 483 mm (19 ") are installed, which are also adjustable in depth. The robust steel construction of the cabinets consists of a thick steel sheet and is available in gray (RAL 7035) or black (RAL 9005) powder coated. The side panels are provided with a quick release fastener and removable, WAS improves the accessibility. Optionally a lock can also be built in the side walls. Wall mounting is done in two simple steps: First screw the rear panel onto the wall and then connect it to the housing. Optionally, leveling feet or rollers can be used to use the cabinets free-standing.

This text is machine translated.
