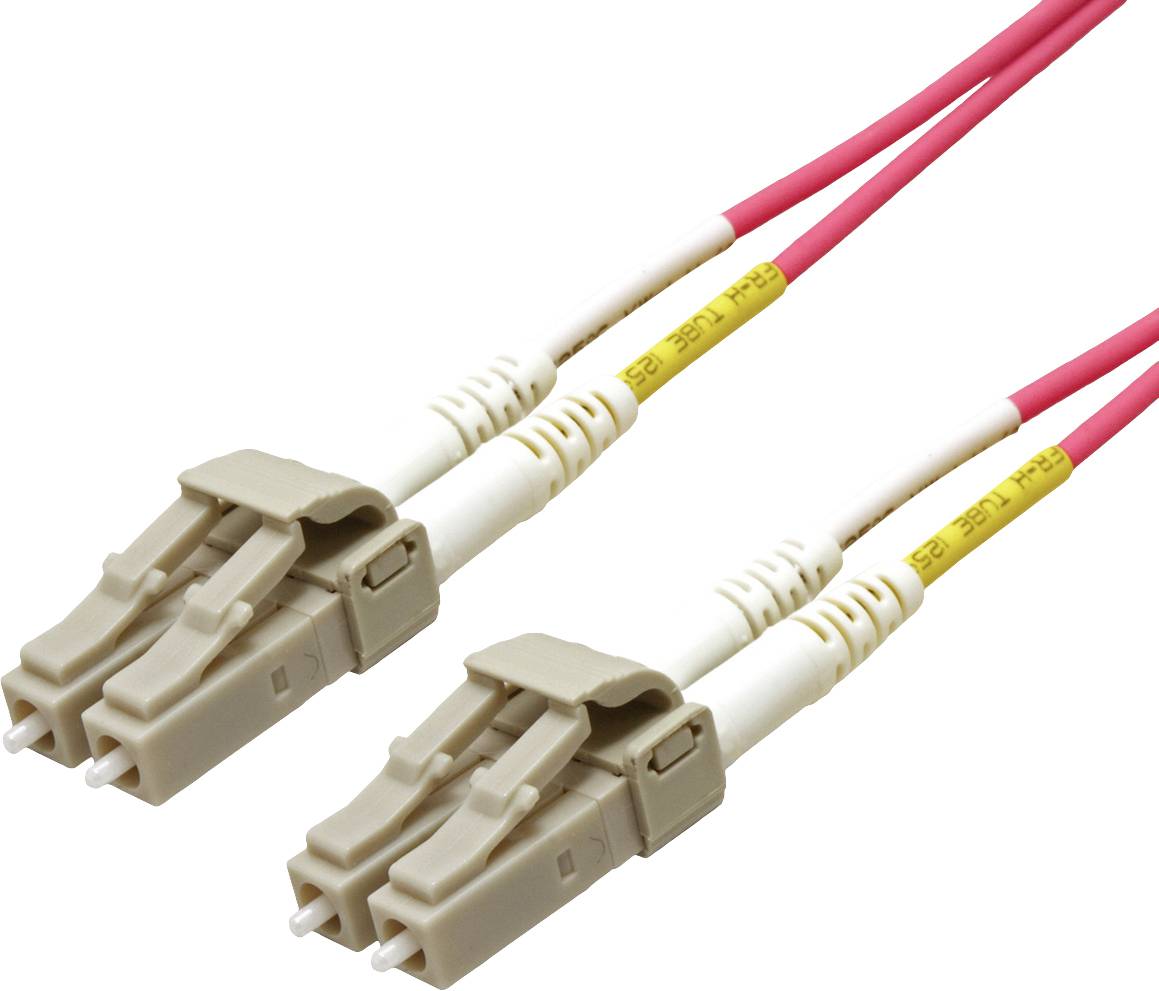

Roline 21.15.8856 Fibreglass FO Cable 7.00 m Violet [2x LC plug - 2x LC plug] Multimode OM4
EAN:
Part number:
Item no:
Highlights & Details
Roline 21158856 glass fiber cable 7 m 2x LC OM4 violet
- With certainty in the future! The extremely high quality of the OM4 fiber and the plugs with especially low insertion loss ensure excellent transmission quality even at very high bandwidths.
- Material and production in ROLINE quality
- The cables, fitted with low-loss connectors, achieve particularly good values with insertion loss and Reflexion. For comparison:- Typical attenuation of a standard LCD connector: 0.5 dB- Typical attenuation of a low-loss LC connector: 0.15 dB
- The OM4 fiber supports Ethernet, Fibre Channel, and OIF applications, for longer ranges of over 550m at 10 Gbps, and for extremely long medium-length building backbones and campus backbones.
- Modal bandwidth: 4700 MHz-km.
- These cables are supplied as duplex cables with the fiber type 50/125µm
- Cable color: Violet
- This text is machine translated.
Technical specifications
- Product type
FO Cable
- Connection type
Fibreglass
- No. of A connectors
2 x
- Type A
LC plug
- No. of B connections
2 x
- Type B
LC plug
Multimode OM4
Duplex
- Halogen-free
Yes
- Cable length
7.00 m
- Factory colour
Violet
- Content
1 pc(s)
- Connector version
straight
- Cable design
Round
- Cable features
Halogen-free
Flame-retardant
low flue gas emission
Duplex
FO
- Cable use
FO
- Version
Cable
- LAN transfer rate
10000 MBit/s
LC
- Weight
48.1 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2887660 Roline 21.15.8856 Fibreglass FO Cable 7.00 m Violet [2x LC plug - 2x LC plug] Multimode OM4
Description
Unlike copper cables, FO cables are much less suceptible to adverse conditions. FO doesn't interfere with electronic devices. The low attenuation of FO cables allows for long-distance transmissions.
Features
- Cable length 7 m
- Fibre optic type OM4
- Connection 1: 2x LC
- Connection 2: 2x LC
- Hole diameter 50 µm
- Full duplex
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
