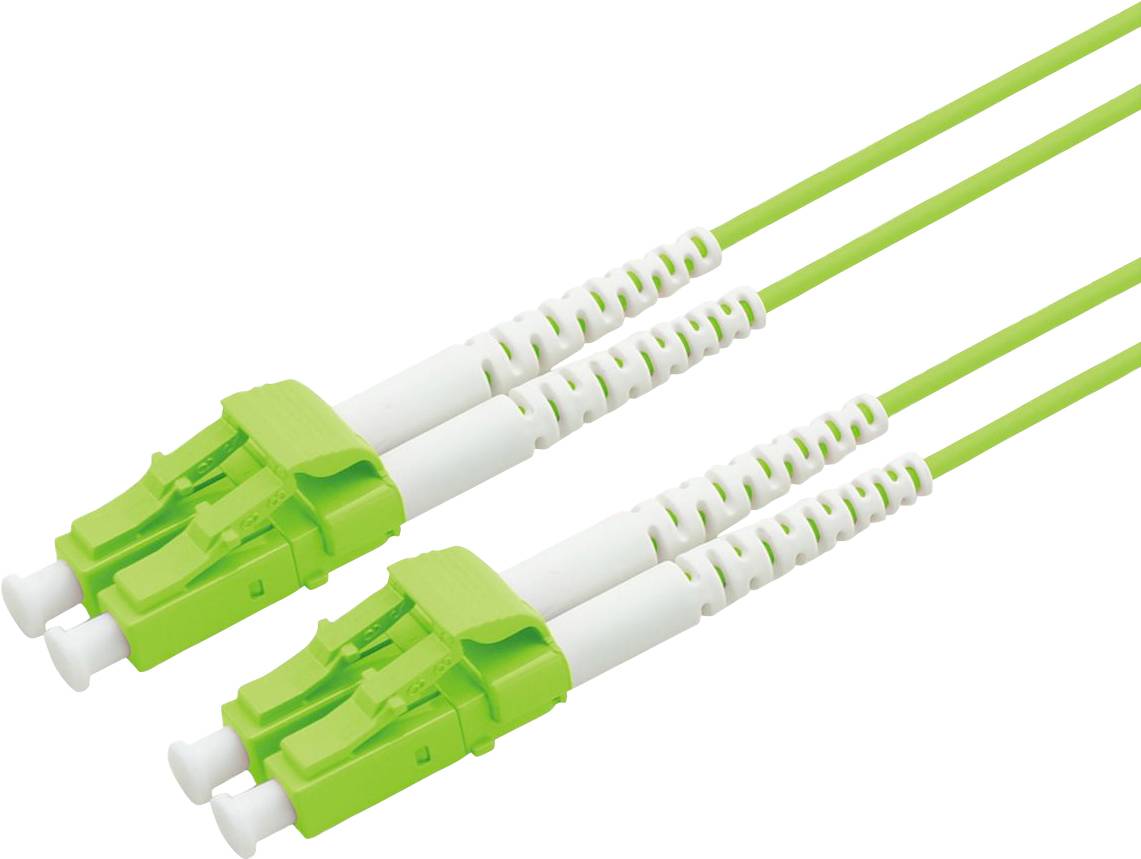

Roline 21.15.9284 Fibreglass FO Cable 5.00 m Green [2x LC plug - 2x LC plug] 50/125 µ Multimode OM5
EAN:
Part number:
Item no:
Highlights & Details
- LC plug to LC plug
- Duplex-Cable
- Factory colour: Green
Technical specifications
- Connection 1: LC
- Connection 2: LC
- Product type
FO Cable
- Connection type
Fibreglass
- No. of A connectors
2 x
- Type A
LC plug
- No. of B connections
2 x
- Type B
LC plug
- Fibre type
50/125 µ
Multimode OM5
Duplex
- Halogen-free
Yes
- Cable length
5.00 m
- Factory colour
Green
- Content
1 pc(s)
- Connector version
straight
- Cable design
Round
- Cable features
Halogen-free
Duplex
FO
- Cable use
FO
- Version
Cable
- LAN transfer rate
100000 MBit/s
- UKCA
yes
- Quantity per pack
1 Stück(e)
- Cable diameter
2 mm
- Package weight
100 g
- Core diameter
50 µm
- Cladding diameter
125 µm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3629306 Roline 21.15.9284 Fibreglass FO Cable 5.00 m Green [2x LC plug - 2x LC plug] 50/125 µ Multimode OM5
Description
Unlike copper cables, FO cables are much less suceptible to adverse conditions. FO doesn't interfere with electronic devices. The low attenuation of FO cables allows for long-distance transmissions.
Features
- Security for the future! The OM5 fiber optic cables with very low attenuation offer excellent quality at very high bandwidths of up to 100 Gbit/s.
- Ethernet, Fibre Channel, and OIF applications up to 150 meters - extends the system cost benefits for extremely long backbones and medium-length campus backbones
- Material and sheathing in ROLINE quality
- Duplex cable with fiber type multimode 50/125μm OM5
- The cables, fitted with low-loss connectors, achieve particularly good values with insertion loss and Reflexion. For example,
- Typical attenuation of a standard LC connector: 0.5 dB
- Typical attenuation of a low-loss LC connector: 0.15 dB
- UPC polished
- Outer diameter: 2.0 mm
- Bandwidth: 4700 MHz-km (this bandwidth is based on application-specific implementation of EMBC requirements)
- Sheath color: Green
