Name: Roline Gigabit converter, RJ-45 - Mini-GBIC
Brand: Roline
SKU: 3798267

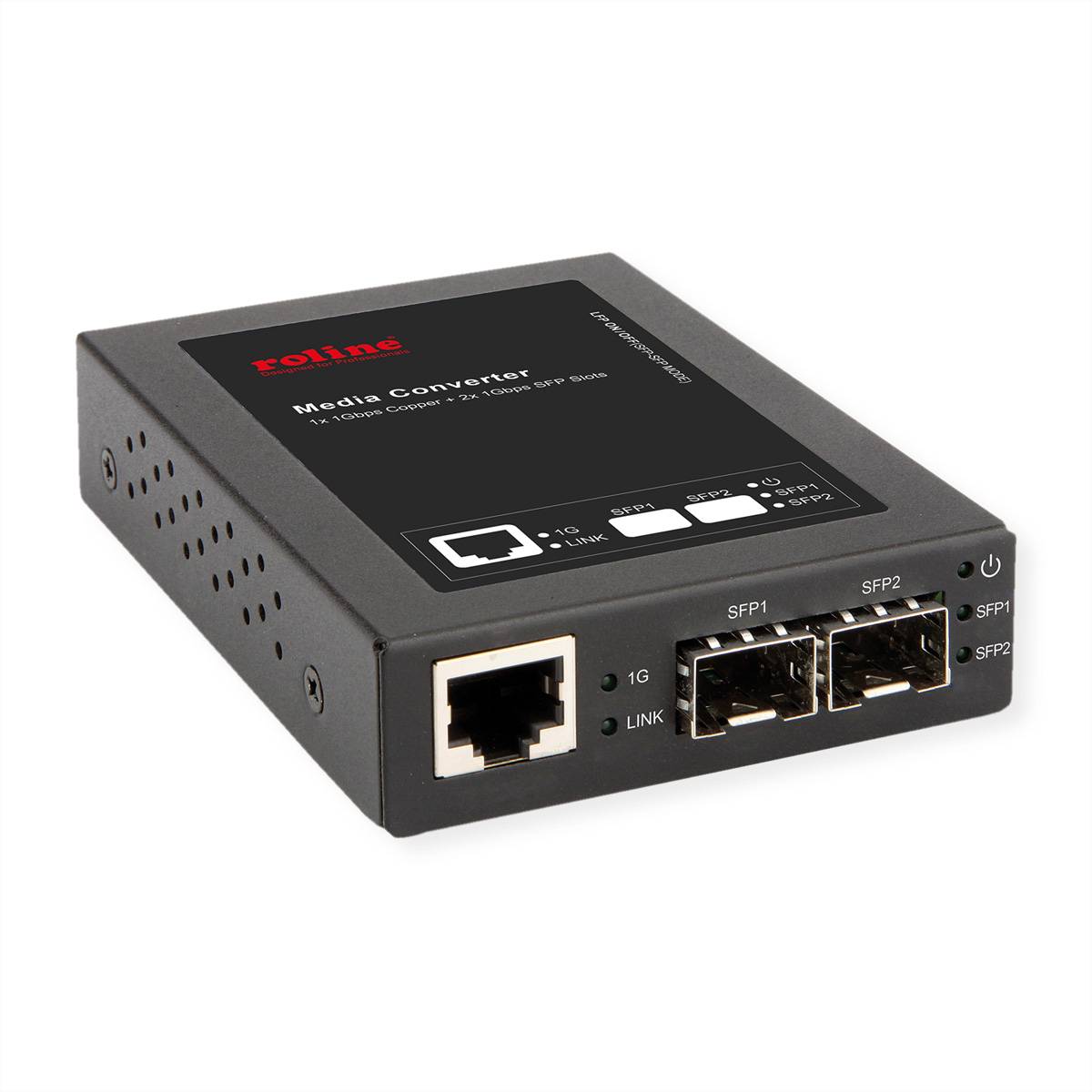

Roline Gigabit converter, RJ-45 - Mini-GBIC-0

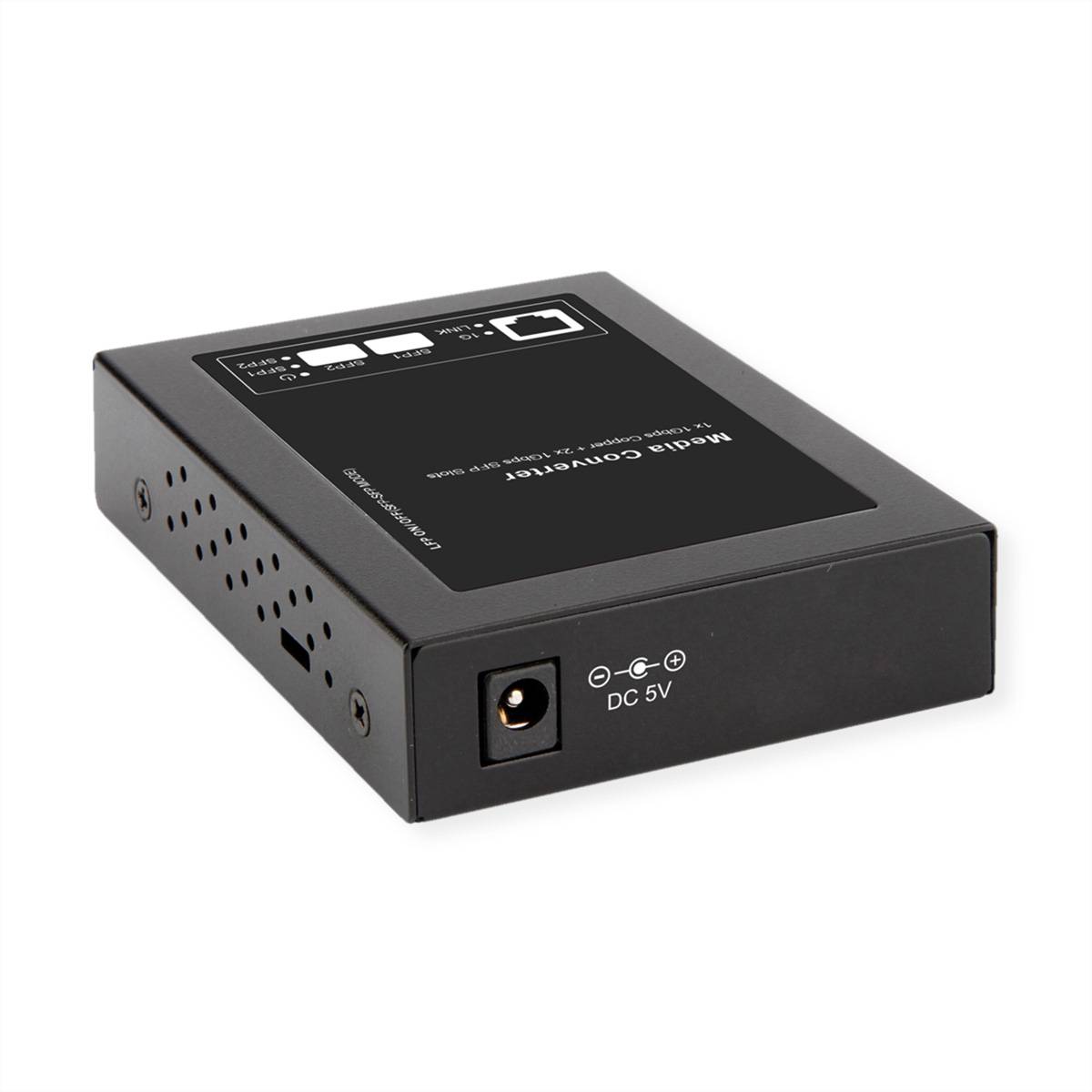

Roline Gigabit converter, RJ-45 - Mini-GBIC-1

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

To adapt different cabling within a LAN, fiber optic converters can be used to create a functional network...

RJ-45 TP side / 2 x mini-GBIC fiber optic side
The power is supplied by the enclosed mains adaptor.
Dimensions 22 x 74 x 102 mm
Scope of delivery: Converter, instructions, power supply unit (5V DC, 2A)

Technical specifications

Product group: Network converter
Product type: Network Media Converter
Colour, black
RJ-45 Port (Mbps): 1000
Fiber Port (Mbps): 1000
Number of ports RJ-45: 1
Technical features: Fiber optic connection is implemented using MiniGBIC module
Min. Operating temperature 0 °C
Max. operating temperature: 50 °C
Min. Storage temperature: -20 °C
Storage temperature max. 80 °C.
Height: 22 mm
Width 74 mm
Depth: 102 mm
Weight: 295 g
Packaging height 60 mm
Package width 160 mm
Packaging depth 200 mm
Package weight: 0.3 kg
Gross weight: 0.3

Product type: Adapter

LAN transfer rate: 1000 MBit/s

Transfer rate: 1000 MBit/s

Weight: 0.3

Width: 74 mm

Height: 22 mm

Type: 21.13.1074

Factory colour: Black

Cable design: Round

Version: Cable

Length: 102 mm

Interfaces: RJ45

Cable use: C13/C14 appliances

Link: LAN 10/100/1000 MBit/s

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3798267 Roline Gigabit converter, RJ-45 - Mini-GBIC

User & Safety Instructions

User & Safety Instructions 3798267 Roline Gigabit converter, RJ-45 - Mini-GBIC

Description

To adjust different cabling within a LAN, FO converters can be used to obtain a functional network. Whether for converting fiber optic cables to a classic twisted pair network with a mini-GBIC or for converting fiber optic cables to another fiber optic network with two mini-GBICs. The ROLINE Gigabit converter offers both the possibilities. The ROLINE Gigabit Converter converts one Gigabit Ethernet TP port to fiber optic or a fiber optic port to a second fiber optic port. The fiber optic connections can be freely selected with the help of the mini GBIC module. Mini-GBIC modules are available for SX/LC (21.14.3500) and LX/LC (21.14.3501: 10km, 21.14.3502: 20km). RJ-45 on the TP side / 2 x mini-GBIC slot on the fiber optic side. The power is supplied by an external mains adapter included. Dimensions 22 x 74 x 102 mm Scope of delivery: Converter, quick start guide, power supply unit (5V DC, 2A)

This text is machine translated.
